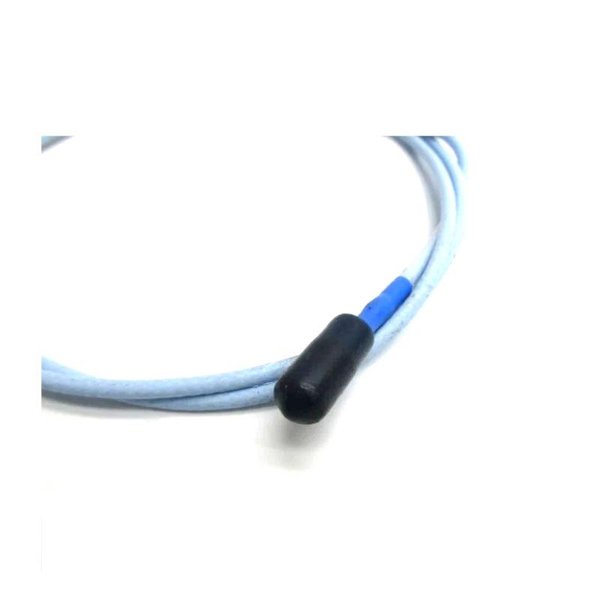

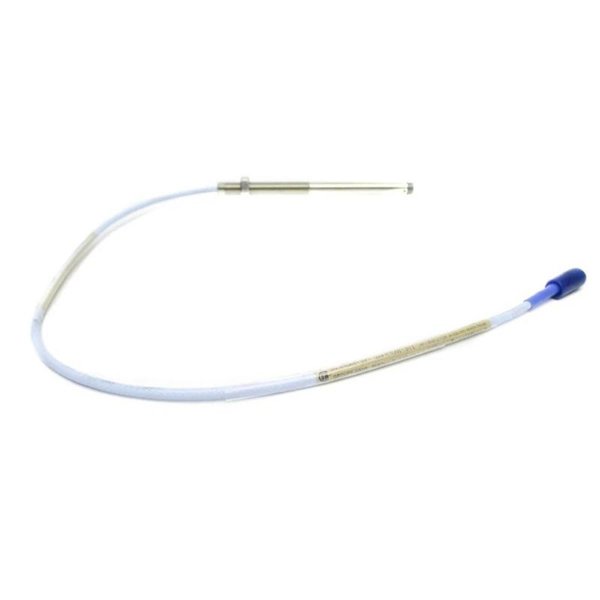

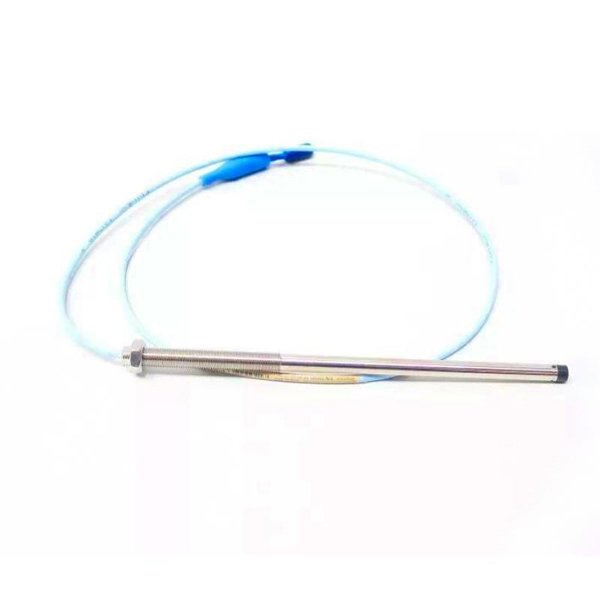

Bently Nevada 330101-00-79-15-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-79-15-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.5 meters
Weight:0.485 kg
Views:31
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-79-15-02-05 is part of the 3300 XL 8 mm Proximity Transducer System, engineered for precise vibration and position measurements in rotating machinery. It consists of a non-contact proximity probe, providing a voltage output proportional to the distance between the probe tip and a conductive surface. This model is particularly suitable for fluid-film bearing machines and supports API 670 compliance.
Product Features
-
Fully compliant with API 670 standards
-
Backward compatible with non-XL 3300 series
-
Enhanced RFI/EMI immunity
-
Durable TipLoc and CableLoc technologies
-
Connector protectors for environmental resistance
-
No calibration required per component
-
Finger-tight ClickLoc connectors
-
ETR version supports high-temperature environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 330101-00-79-15-02-05 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature ClickLoc coaxial |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temp. (Probe) | –52°C to +177°C (Standard) |
| Extended Temp. (Optional) | –52°C to +218°C (Tip) / +260°C (Cable) |
| Environmental Protection | With optional connector protectors |
| Power Supply (Proximitor Sensor) | –17.5 Vdc to –26 Vdc |
| Output Resistance | 50 Ω |
| Frequency Response | 0–10 kHz, +0/–3 dB |
| Total Length | 1.5 meters |
| Weight | 0.485 kg |
Applications
-
Radial and axial vibration measurement
-
Shaft position and displacement monitoring
-
Keyphasor signal generation
-
Overspeed protection (with care)
-
Turbomachinery diagnostics
-
Fluid-film bearing monitoring
Product Advantages
-
Robust Mechanical Design: Withstands high vibration and harsh environments.
-
High Compatibility: Interchangeable with legacy 3300-series systems.
-
Ease of Installation: ClickLoc connectors and SpringLoc terminals simplify setup.
-
RFI/EMI Shielding: Performs reliably near radio frequency interference.
-
Extended Temperature Support: Withstands extreme industrial temperatures.
-
Lower Installation Costs: No special tools or conduit shielding required.
FAQ
Q1: What is the purpose of the 330101-00-79-15-02-05 probe?
A1: It measures the distance between the probe tip and a rotating shaft to monitor vibration or position.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it’s fully backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Does this model require calibration?
A3: No component-level calibration is required due to full system interchangeability.
Q4: Can it operate in high-temperature environments?
A4: Yes, the ETR version supports up to 260°C on the cable and 218°C on the probe tip.
Q5: What is the recommended gap voltage?
A5: –9 Vdc, which typically corresponds to a 1.27 mm (50 mil) gap.
Q6: What kind of target material is it calibrated for?
A6: It is factory-calibrated to AISI 4140 steel; other materials available on request.
Q7: Can it be used for overspeed protection?
A7: It can, but with careful consideration; consult application notes.
Q8: What is the maximum probe pressure sealing capability?
A8: It features a Viton® O-ring seal but is not pressure-tested by default.
Q9: Is this probe shielded against electromagnetic interference?
A9: Yes, it meets CE mark RFI/EMI immunity requirements.
Q10: What is the minimum recommended shaft diameter for accurate readings?
A10: At least 76.2 mm (3 inches) for minimal scale factor deviation.
