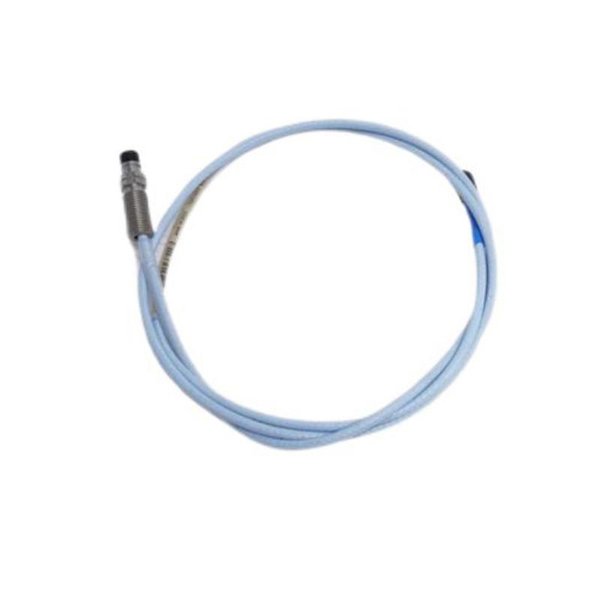

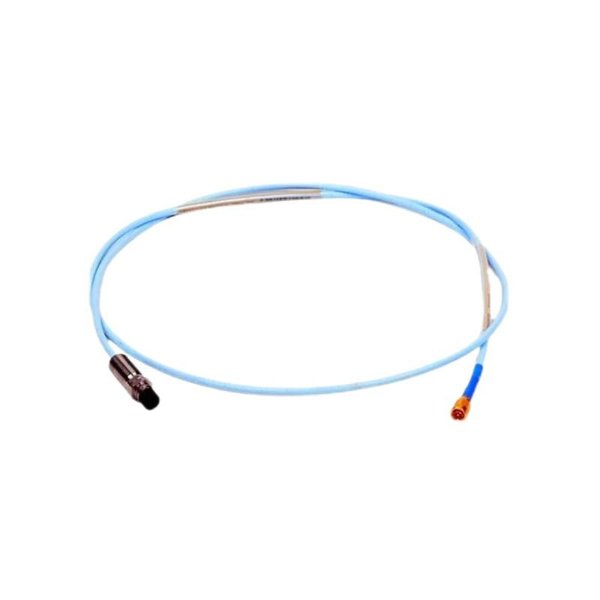

Bently Nevada 330106-05-30-05-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330106-05-30-05-02-00 3300 XL 8 mm Proximity Probe is a specialized reverse mount probe designed for precise vibration and position measurement in rotating machinery. Part of the trusted 3300 XL series, this probe is engineered for demanding industrial environments where early detection of mechanical issues is critical. Its reverse mount configuration allows for compact installation in tight spaces without compromising measurement accuracy.

Constructed with stainless steel and utilizing a miniature ClickLoc™ coaxial connector, this probe delivers reliable performance and durability. It is widely used in power generation, oil & gas, and manufacturing industries for continuous condition monitoring, vibration analysis, and speed measurement applications.

Key Features

• Reverse Mount Design: Enables installation in confined spaces while maintaining accurate sensing capabilities.

• 8 mm Diameter Sensor: Offers high-precision displacement and vibration monitoring.

• Robust Construction: Stainless steel body with PPS (Polyphenylene sulfide) probe tip for durability and chemical resistance.

• Miniature ClickLoc™ Coaxial Connector: Provides secure and reliable electrical connections.

• Wide Measurement Range: Capable of measuring from 0.050 mm up to 10 mm displacement.

• Interchangeable Components: No bench calibration needed when replacing components, simplifying maintenance.

• Sealed Design: Features Viton® O-ring sealing to protect against pressure differentials and contaminants.

• Industry Proven: Compatible with Bently Nevada 3300 XL Proximitor® sensors and extension cables.

Technical Specifications

Typical Applications

The Bently Nevada 330106-05-30-05-02-00 3300 XL 8 mm Proximity Probe is designed for critical machinery monitoring in various industries:

• Power Generation: Monitoring turbines, generators, and motors for displacement and vibration to prevent failures.

• Oil & Gas: Used on pumps, compressors, and rotating equipment in harsh offshore and onshore environments.

• Manufacturing: Precision monitoring of motors, spindles, and critical rotating parts in industrial machinery.

• Chemical Processing: Monitoring pumps and compressors to ensure safe and efficient plant operation.

• Water Treatment: Tracking pump and motor health to maintain continuous water processing.

• Mining & Metals: Ensures reliability of crushers, mills, and other heavy-duty machinery through vibration monitoring.

• Speed and Position Measurement: Supports Keyphasor® and speed measurement applications in fluid-film bearing machines.

Product Advantages

• Space-Efficient Installation: Reverse mount design facilitates installation in tight or constrained areas without compromising accuracy.

• Reliable and Durable: High-quality materials and sealing ensure long service life in demanding industrial environments.

• Easy Maintenance: Component interchangeability without bench calibration reduces downtime and maintenance complexity.

• Accurate Data Output: Voltage output proportional to displacement supports precise monitoring and early fault detection.

• Versatile Application: Suitable for a wide range of rotating machinery across multiple industries.

• Sealed for Harsh Conditions: Viton® O-ring seal protects probe internals from contaminants and pressure differentials.

• Industry Standard Compatibility: Works seamlessly with the 3300 XL Proximitor® sensor family and accessories.

Frequently Asked Questions (FAQ)

1. What is the main advantage of the reverse mount design?

   It allows installation in confined spaces while maintaining accurate sensing capabilities.

2. What is the sensing diameter of this probe?

   The probe has an 8 mm sensing diameter.

3. What is the measurement range of the probe?

   It measures displacements from 0.050 mm to 10 mm.

4. What type of output signal does the probe provide?

   The probe outputs a voltage proportional to the distance between the probe tip and the target surface.

5. What materials are used in the probe’s construction?

   The case is stainless steel, and the probe tip is made of Polyphenylene sulfide (PPS).

6. How is the probe sealed against contaminants?

   It uses a Viton® O-ring seal to protect internal components.

7. What connector type does the probe use?

   It uses a miniature ClickLoc™ coaxial connector for secure electrical connection.

8. Is this probe compatible with existing Bently Nevada systems?

   Yes, it is fully compatible with the 3300 XL Proximitor® sensor and extension cables.

9. What is the operating temperature range?

   The probe operates from -40°C to +120°C (-40°F to +248°F).

10. How heavy is the probe?

    The probe weighs approximately 0.323kg.
