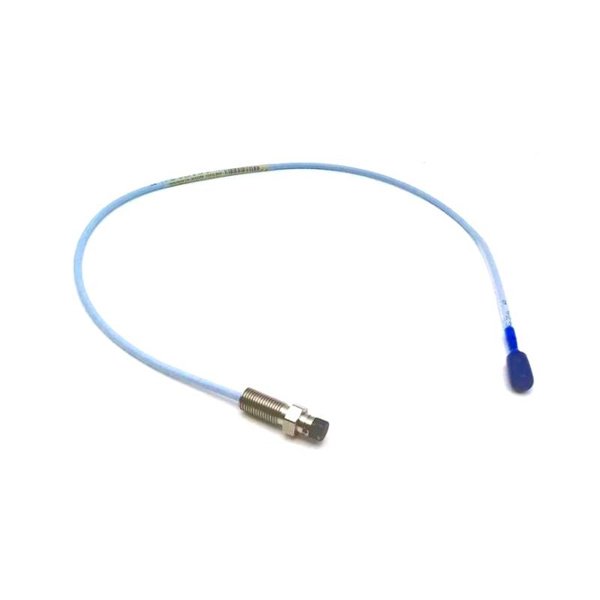

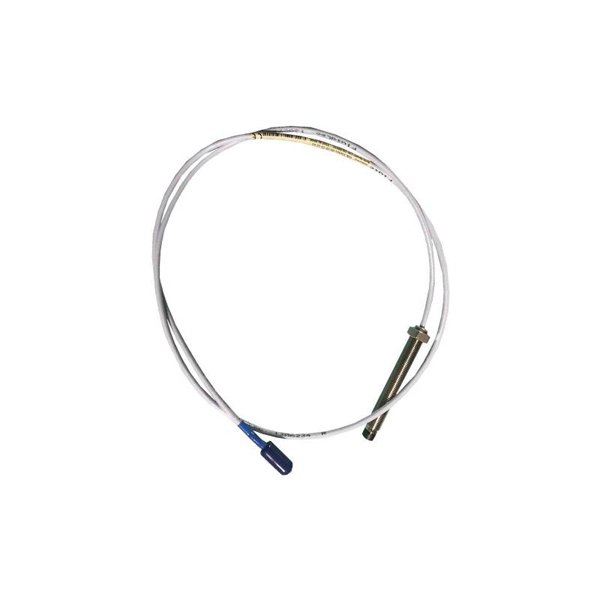

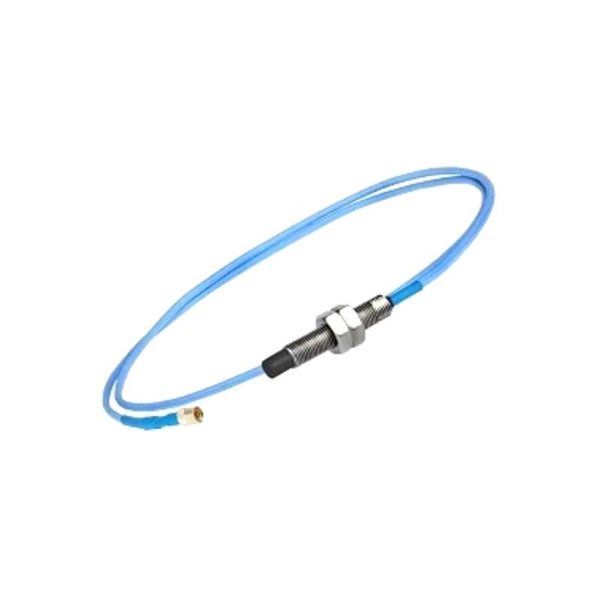

Bently Nevada 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-10-05-02-05 3300 XL 8 mm Proximity Probe stands as a key component within Bently Nevada’s trusted 3300 XL series. Designed for precision and reliability, this probe measures the distance between the probe tip and a conductive target, typically the shaft of rotating machinery. Its robust build and superior engineering make it the go-to choice for critical machinery monitoring, offering accurate displacement, position, and vibration measurements essential for machinery protection and condition monitoring systems.

Engineered to withstand challenging industrial environments, the 330101-00-10-05-02-05 probe is tailored for seamless integration with Bently Nevada 3300 XL Proximitor Sensors. Its 10-meter cable length provides flexibility for installations on large machines or difficult-to-reach locations without signal degradation.

Product Specifications

Applications

The 330101-00-10-05-02-05 Proximity Probe is indispensable in a wide range of industrial machinery applications:

• Steam and Gas Turbines: Monitoring radial shaft vibration and axial position.

• Compressors: Detecting shaft movement to prevent mechanical failure.

• Industrial Motors: Shaft displacement and bearing monitoring.

• Generators: Early detection of shaft misalignment and vibration anomalies.

• Gearboxes: Monitoring shaft and gear alignment.

• Centrifugal Pumps: Detecting shaft imbalance and cavitation conditions.

• Blowers and Fans: Identifying excessive vibration and shaft distortion.

This probe ensures that any deviation from normal operating conditions is detected early, allowing preventative maintenance actions before catastrophic failures occur.

Product Advantages

• Exceptional Durability: Designed to resist high temperatures, pressures, and chemical exposure common in industrial environments.

• High Measurement Accuracy: Provides precise shaft dynamic and static position measurements for critical machinery protection.

• Long Cable Flexibility: The 10-meter cable is ideal for installations where the sensor must be positioned farther from monitoring equipment.

• Superior Signal Integrity: Maintains signal quality over extended distances without the need for signal conditioning.

• Minimal Maintenance: Rugged design minimizes the need for recalibration or frequent replacement.

• Consistent Performance: Tight manufacturing tolerances ensure probe-to-probe interchangeability.

• Optimized for Safety Systems: Fully compatible with API 670 standards for machinery protection systems.

• Reliable in Extreme Conditions: Operational stability across wide temperature and pressure ranges ensures no performance loss.

Frequently Asked Questions (FAQs)

1. What is the recommended installation orientation for the 330101-00-10-05-02-05 probe?

   The probe can be installed horizontally or vertically, depending on the application requirements.

2. Can I shorten the 10-meter cable during installation?

   No, the cable length is fixed and altering it will degrade performance and void warranty.

3. What types of targets are suitable for this proximity probe?

   Conductive targets such as steel shafts or rotating machine elements.

4. Is this probe compatible with non-Bently Nevada monitoring systems?

   It is specifically designed for Bently Nevada 3300 XL systems; compatibility with others is not guaranteed.

5. Does the probe require field calibration?

   No routine calibration is needed, but periodic system verification is recommended.

6. What environmental conditions can the probe endure?

   It operates reliably in temperatures from -35°C to +177°C and pressures up to 500 psi.

7. Is the 330101-00-10-05-02-05 probe suitable for hazardous areas?

   Yes, it holds certifications such as ATEX for hazardous area use.

8. How do I check if the probe is functioning correctly after installation?

   Gap voltage can be measured using a micrometer to ensure correct installation and operation.

9. Can the probe be used for axial position measurements?

   Yes, it is suitable for both radial and axial shaft position monitoring.

10. What is the typical lifespan of the 330101-00-10-05-02-05 probe?

    When properly installed and maintained, it can reliably serve for many years without degradation.
