Vibro-Meter CA306 144-306-000-321 Piezoelectric Accelerometer
Item Number: CA306 144-306-000-321
Brand: Vibro-Meter
Lead Time: In stock
Description:Piezoelectric Accelerometer
Payment: T/T
Product Description

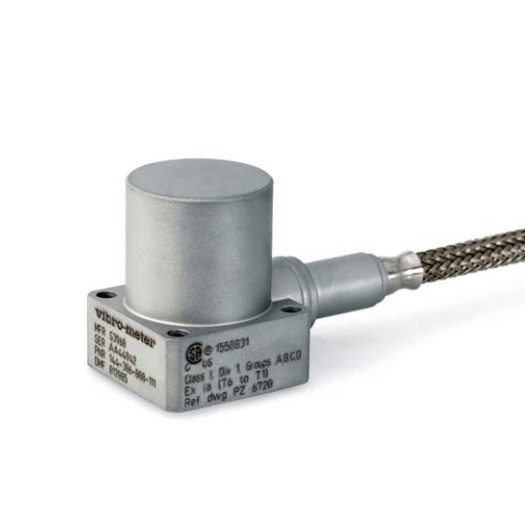

CA306 144-306-000-321 piezoelectric accelerometer is a high temperature accelerometer of the CA306 series, designed for gas turbine applications. The housing is a sealed welded structure of Inconel 600 high temperature alloy, which is corrosion and oxidation resistant. It is suitable for environments such as extreme high temperature and high vibration, and can also be safely used in potentially explosive environments.
Function & Features

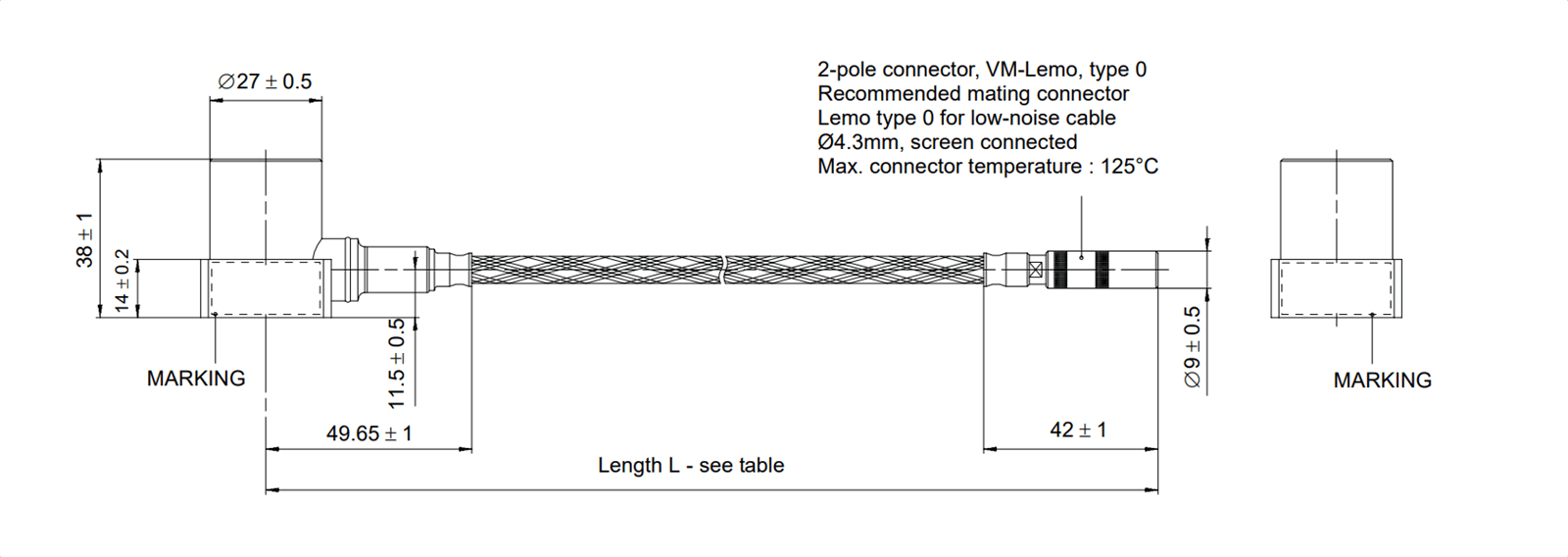

- Housing: CA306 144-306-000-321 features a fully welded Inconel 600 super alloy housing with sealed connectors.
- Cable: CA306 144-306-000-321 has a built-in mineral insulated (MI) stainless steel braided cable to maintain signal integrity even in strong electromagnetic interference or high vibration environments.

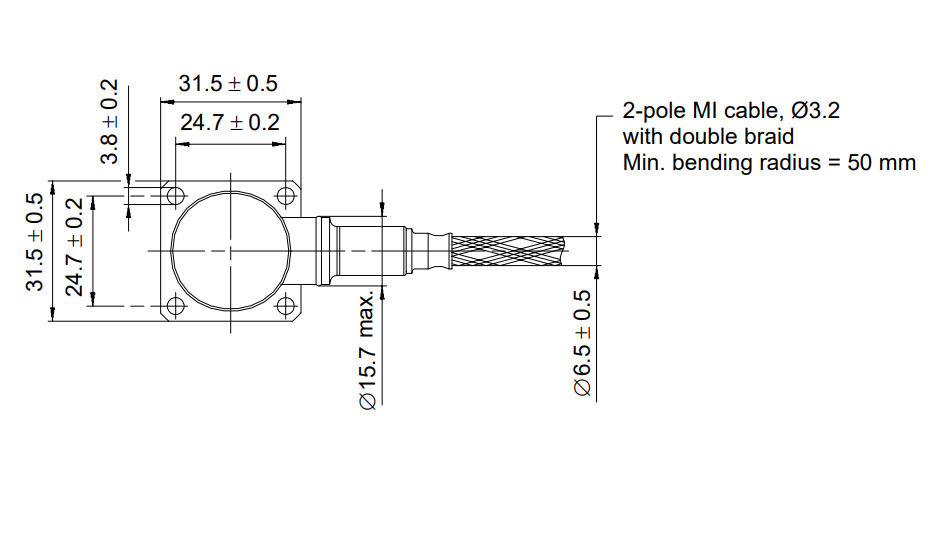

- Mechanical Optimization: CA306 144-306-000-321 has improved lateral frequency resonance to reduce cross-axis sensitivity and improve measurement accuracy. 4-hole mounting (ARINC 554 compliant)
Specifications
|
Parameter |
Value |
|
Series |
CA306 |
| Odering number | 144-306-000-321 |
|
Sensitivity (at 120 Hz) |
50 pC/g ± 5% |
|
Dynamic measuring range (random) |
0.01 g to 100 g peak |
|
Overload capacity (spikes) |
Up to 200 g peak |
|
Linearity |
±1% over dynamic measuring range |
|
Transverse sensitivity |
<5% |
|
Resonant frequency |
>15 kHz |
|
Frequency response (typical) |
± 5% between 5 and 3 000 Hz (lower electronics used) |
|
Internal insulation resistance |
Min. 10⁹ Ω pole - ground Min. 10⁹ Ω pole - pole |
FAQ
Q: What is the brand?
A: CA306
Q: What is the type?
A:Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
