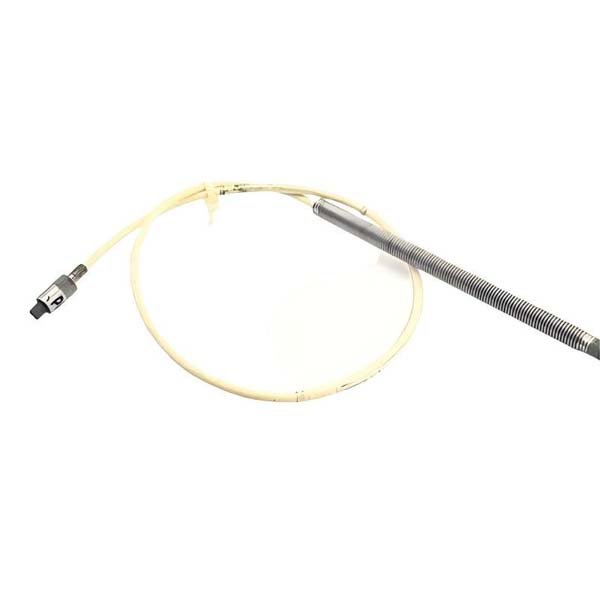

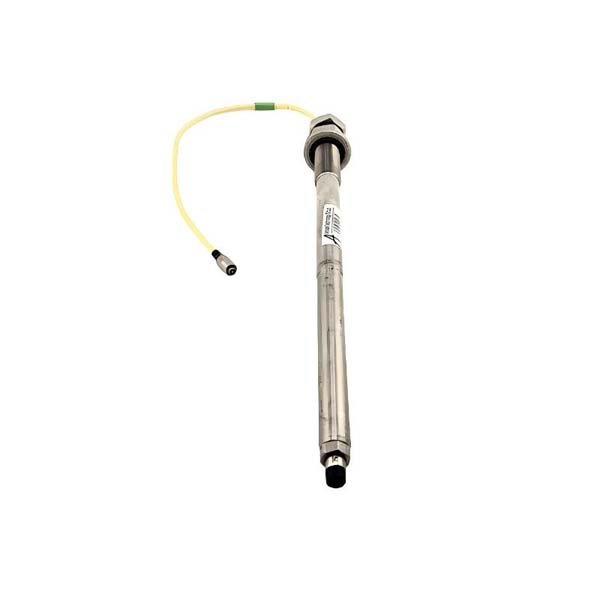

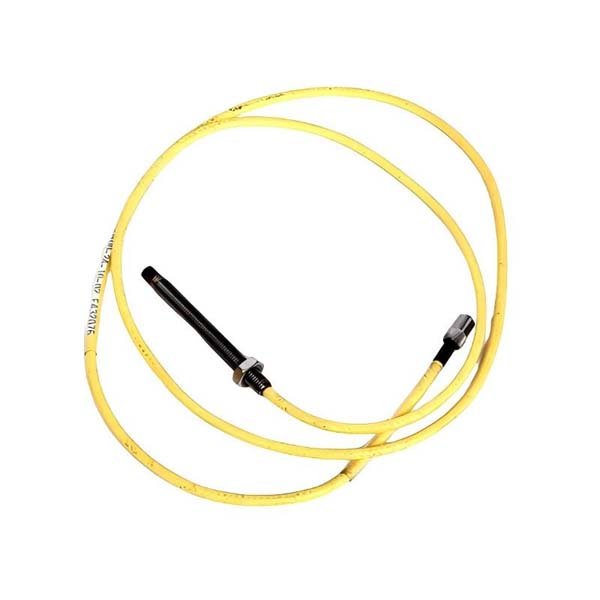

Bently Nevada 21500-04-32-05-02 Velomitor Piezo-Velocity Sensor
Manufacturer:Bently Nevada
Product Number:21500-04-32-05-02
Product Type:Velomitor Piezo-Velocity Sensor
Origin:USA
Dimensions:90 mm × 35 mm × 120 mm
Weight:0.32 kg
Views:148
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 21500-04-32-05-02 Velomitor Piezo-Velocity Sensor is an industrial-grade velocity transducer designed for accurate measurement of casing vibration in rotating equipment. Built on Bently Nevada’s piezoelectric sensing technology, it produces a voltage output directly proportional to vibration velocity, providing a stable and reliable signal for condition monitoring systems.
From a maintenance standpoint, the 21500-04-32-05-02 stands out for its rugged construction, resistance to contamination, and long-term calibration stability. It offers dependable performance in environments exposed to oil mist, mechanical shock, or high temperatures — all typical of turbine and compressor installations.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 21500-04-32-05-02 |
| Module Type | Velomitor Piezo-Velocity Sensor |
| Measurement Type | Vibration velocity (mm/s or in/s) |
| Sensitivity | 100 mV/in/s ±5% (nominal) |
| Frequency Range | 4.5 Hz to 5 kHz |
| Mounting Type | Stud mounting (1/4-28 UNF) |
| Output Signal | Single-ended voltage |
| Power Supply | +23 to +36 V DC |
| Temperature Range | –54 °C to +121 °C |
| Shock Limit | 5000 g peak |
| Connector Type | 2-pin MIL-C-5015 or compatible |
| Housing Material | Stainless steel |
| Typical Dimensions | 90 mm × 35 mm × 120 mm |
| Weight | 0.32 kg |
| Sealing | Hermetically sealed, IP65 equivalent |
Applications / Field Deployment Examples
-
Casing Vibration Measurement on compressors, pumps, turbines, and fans.
-
Integration with Bently Nevada 3500/42M and 1900/65A monitoring modules.
-
Used in predictive maintenance programs for rotating machinery.
-
Ideal for retrofit projects replacing older velocity transducers.
-
Suited for hazardous or outdoor environments due to sealed housing design.
Advantages / Key Features
-
Hermetically Sealed Housing: Protects against oil, dust, and humidity.
-
Excellent Frequency Response: Accurate velocity readings across wide dynamic range.
-
Maintenance-Free Operation: No moving parts; calibration remains stable over years.
-
High Shock Resistance: Can withstand installation on heavy industrial machinery.
-
Flexible Integration: Compatible with Bently Nevada and third-party monitoring systems.
-
Temperature Resilience: Operates reliably across extreme thermal conditions.
FAQs
-
What type of measurement does the Velomitor provide?
– Vibration velocity (mm/s or in/s RMS).
-
What is the standard sensitivity?
– 100 mV/in/s ±5%.
-
Can it be directly connected to a 3500 rack?
– Yes, through 3500/42M vibration input modules.
-
What is the usable frequency range?
– 4.5 Hz to 5 kHz.
-
How is it powered?
– +23 to +36 V DC.
-
Is the sensor sealed?
– Yes, hermetically sealed for harsh environments.
-
What is the mounting method?
– Stud mount, typically 1/4-28 UNF thread.
-
What materials are compatible with the housing?
– Stainless steel construction for corrosion resistance.
-
What temperature range can it handle?
– –54 °C to +121 °C.
-
Does it require recalibration?
– Normally no; periodic verification recommended every 2–3 years.
