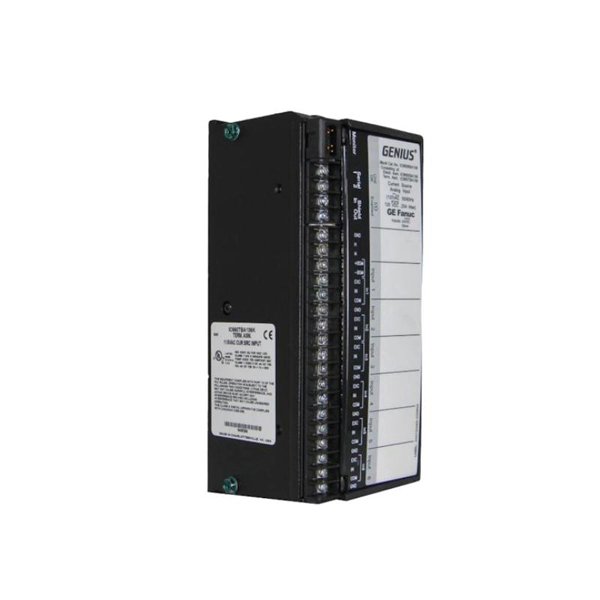

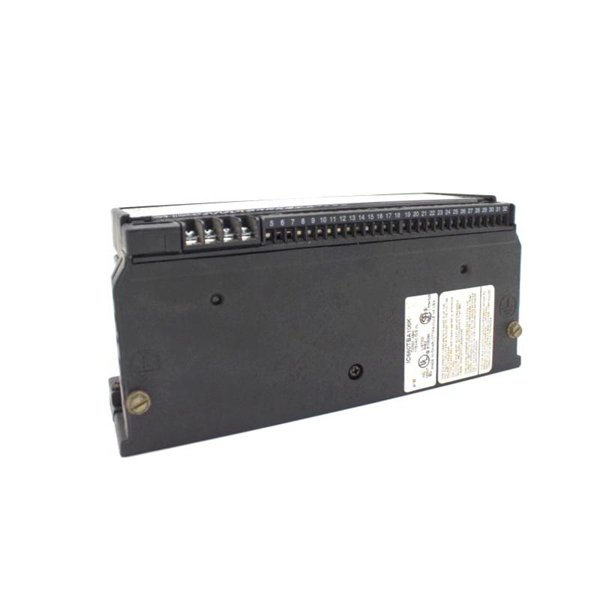

General Electric IC660BBA106 Current Source Analog Input Module

The GE IC660BBA106 is a rugged and reliable analog input module designed for use in industrial automation systems, particularly those operating within the Genius I/O system from General Electric. This module is engineered to receive analog signals from field devices such as sensors and transmitters, converting these signals into digital data for processing by the control system.

Specifically, the IC660BBA106 is a current source input module, accepting analog inputs in the range of 4 to 20 mA, which is standard in industrial control environments due to its noise immunity and signal integrity over long distances. The module is widely known for its robust design, high environmental tolerance, and seamless integration with other GE Genius block devices.

Its flexible configuration, diagnostic capabilities, and high accuracy make it a preferred choice for various applications in industries such as manufacturing, energy, chemical processing, and water treatment.

Product Specifications

Applications

The IC660BBA106 is designed to operate in diverse industrial environments where reliable analog data acquisition is critical. Key application areas include:

• Process Control Systems: Monitoring variables like pressure, temperature, and flow via 4–20 mA transmitters.

• Water and Wastewater Management: Measuring chemical dosing levels, tank levels, and pump performance.

• Energy and Power Generation: Gathering sensor data in turbines, boilers, and distribution systems.

• Oil & Gas: Real-time acquisition of drilling, refining, and pipeline data.

• Manufacturing: Used in SCADA and PLC systems to manage and regulate automated processes.

Product Advantages

• Industrial-Grade Durability: Built to withstand harsh environments with wide operating temperature and humidity ranges.

• High Accuracy and Resolution: 12-bit resolution ensures precise data acquisition for control applications.

• Advanced Diagnostics: Provides real-time alerts for open circuits, over-range values, and faults, enabling fast maintenance response.

• Flexible Configuration: Easily configured via hand-held monitor or centralized control systems.

• Reliable Communication: Seamless integration with Genius I/O systems ensures fast and reliable data transfer.

• Low Signal Noise: Current loop signal handling reduces susceptibility to noise over long distances.

• Compact Design: Space-saving form factor suitable for dense cabinet installations.

Frequently Asked Questions (FAQ)

1. What type of signals does the IC660BBA106 accept?

   It accepts 4–20 mA current loop analog signals from field instruments.

2. How many input channels are available on this module?

   The module has 8 independent analog input channels.

3. Is the module compatible with other brands of sensors?

   Yes, it is compatible with any standard 4–20 mA sensor.

4. Can it be mounted on a DIN rail?

   Yes, it supports both DIN rail and panel mounting options.

5. Does the module offer any diagnostic features?

   Yes, it includes features like open circuit detection and over-range diagnostics.

6. What is the resolution of the input channels?

   Each input channel provides a 12-bit resolution for accurate readings.

7. Can I configure the module without a PC?

   Yes, it can be configured using a GE hand-held monitor.

8. What power supply is needed for the module?

   It typically requires a 24 VDC power supply.

9. Is the module suitable for outdoor environments?

   While it is robust, it should be housed in a weatherproof enclosure if used outdoors.

10. What communication interface does it use?

    It communicates using the Genius I/O Bus protocol.
