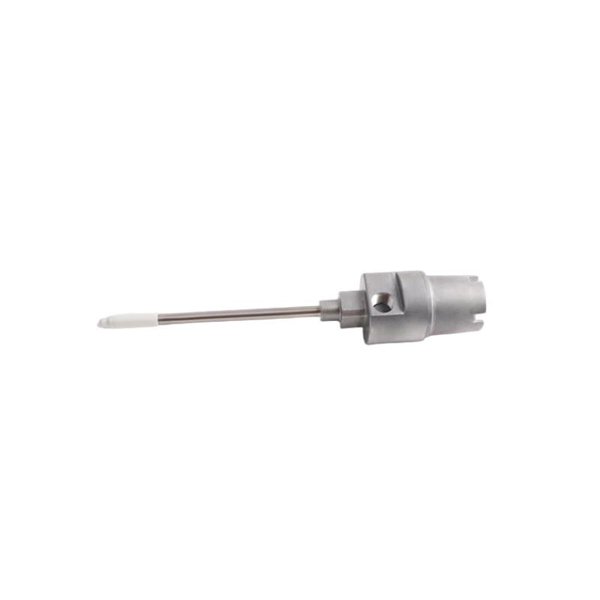

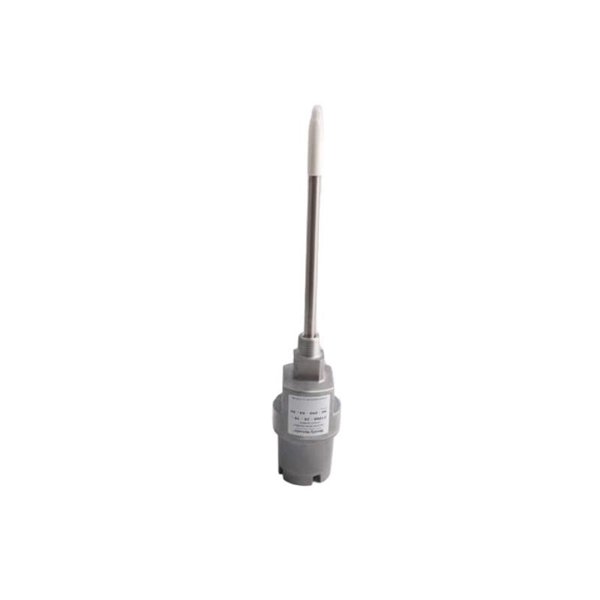

Bently Nevada 21000-28-05-20-095-04-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-28-05-20-095-04-02 Proximity Probe Housing Assembly is a high-performance component specifically engineered for critical machinery condition monitoring and protection applications. As part of the trusted 21000 series by Bently Nevada, a brand renowned for precision and reliability in vibration monitoring solutions, this housing unit ensures robust protection, secure mounting, and optimal signal integrity for proximity probe systems operating in harsh industrial environments.

This assembly is typically paired with proximity probes and extension cables to complete a fully functional transducer system, enabling non-contact measurement of shaft vibration, axial position, and phase reference. Built with rugged stainless steel and designed to comply with API 670 standards, it is ideal for turbomachinery applications such as steam turbines, gas turbines, compressors, and pumps.

Product Specifications

Applications

The Bently Nevada 21000-28-05-20-095-04-02 Proximity Probe Housing Assembly is widely used in machinery monitoring systems across a range of critical industries. Typical application scenarios include:

• Turbomachinery: Steam and gas turbines for monitoring shaft displacement and vibration.

• Compressors: Both axial and centrifugal compressors for detecting imbalance and rotor misalignment.

• Pumps: High-speed or mission-critical pumps where bearing wear and shaft movement must be tracked.

• Generators: Monitoring thermal expansion and shaft alignment in generator shafts.

• Refineries and Petrochemical Plants: Condition monitoring of rotating equipment.

• Paper Mills, Steel Mills: Monitoring of heavy-duty rolling machinery.

Advantages

• High Reliability: Engineered for continuous operation in high-vibration, high-temperature, and high-pressure environments.

• Modular Design: Enables easy integration with other Bently Nevada proximity systems.

• Ease of Installation: Designed for straightforward field mounting using standard tools.

• Environmental Protection: IP65-rated housing with sealed cable entries ensures long service life even in corrosive and humid atmospheres.

• Global Standards Compliance: Designed to meet or exceed API 670 and CE/RoHS directives, ensuring universal acceptance.

• Accurate Signal Transmission: Shielded cabling and internal design reduce electrical noise and maximize signal fidelity.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 21000-28-05-20-095-04-02 housing assembly?

   It securely mounts and protects proximity probes while maintaining signal integrity for machinery monitoring.

2. Is this housing assembly compatible with all Bently Nevada proximity probes?

   It is compatible with most 5 mm and 8 mm probes, particularly those in the 3300 and 7200 series.

3. Can this housing be used in hazardous locations?

   While the housing itself is rugged and IP-rated, for hazardous areas, additional certifications like ATEX or CSA may be required based on probe and system configuration.

4. What type of cable entry is supported?

   It supports either conduit hub or cable gland entries depending on model specifications.

5. Does the housing affect probe calibration?

   No, it is designed to maintain alignment and spacing consistent with factory calibration procedures.

6. What environmental conditions can it withstand?

   The housing is built for use in industrial environments with temperatures ranging from -40°C to +125°C and is dust and water resistant.

7. Is the housing grounded?

   Yes, it includes provisions for proper grounding to eliminate EMI/RFI interference.

8. How does it connect to the monitoring system?

   Through a coaxial extension cable that links the proximity probe to the driver or monitor.

9. What is the service life of this housing assembly?

   With proper installation and routine inspection, it can last for many years, often matching the lifecycle of the monitored equipment.

10. Can it be used in retrofitting applications?

    Yes, its compact design and threaded mounts make it suitable for both new installations and retrofits.
