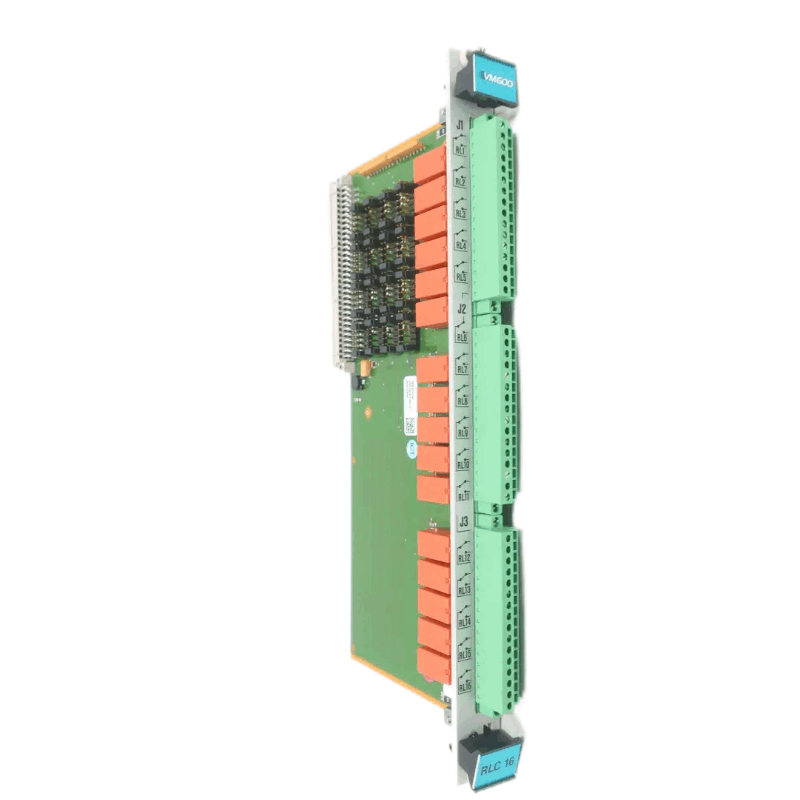

Vibro-Meter RLC16 200-570-000-111 Relay Card
Item Number: RLC16 200-570-000-111 Relay Card
Brand: Vibro-Meter
Lead Time: In stock
Description: Relay Card
Payment: T/T
Product Description
The RLC16 200-570-000-111 is a 16-channel relay card designed for use in machinery protection systems (MPS) and condition monitoring systems. It is used when the four relays on the IOC4T input/output card are not enough for the application and additional relays are required. It is mounted on the rear of the rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector. Additional relay outputs can be expanded with this card.
Function & Features

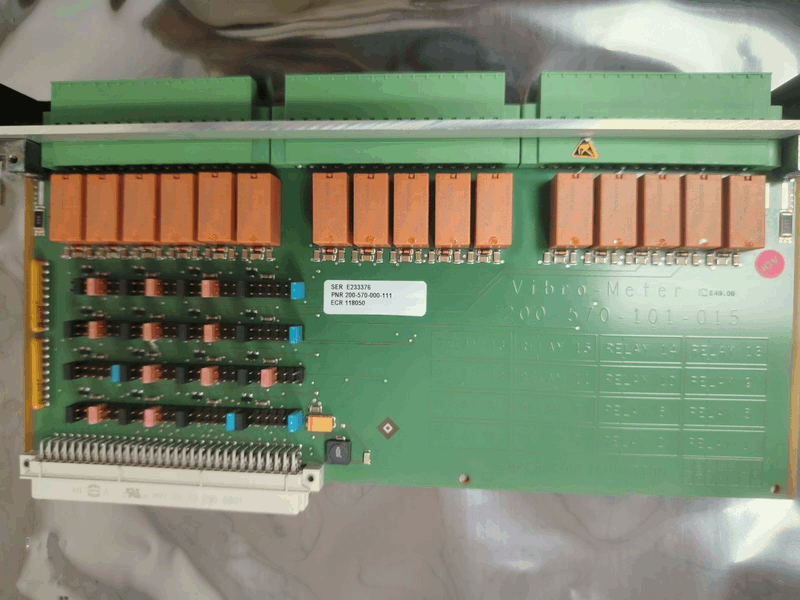

- Hardware Configuration: RLC16 200-570-000-111 uses a screw terminal connector and has 16 relays with changeover contacts built in, each corresponding to 3 terminals on the screw terminal connector on the rear of the rack.
- Control Mode: The relays are controlled by software-controlled open collector drivers, and the relays can be normally excited (NE) or normally de-excited (NDE) mode selected by jumpers on the RLC16 200-570-000-111 card.
- Logic Control Configuration: RLC16 200-570-000-111 can be selected by jumpers to normally excited (NE) or non-excited (NDE) mode.It controlled by open collector drivers, supporting software logic settings.
Specifications
|
Category |
Specification |
| Part Number | RLC16 200-570-000-111 |
|
Relay Details |
|
|
Relay Names |
RL1 to RL16 |
|
Relay Type |
PED14005 |
|
Electrical Ratings |
|
|
Nominal Rated Voltage |
250 VAC |
|
Nominal Rated Current |
5 AAC |
|
Maximum Breaking Capacity |
1250 VA |
|
Isolation & Lifespan |
|
|
Between Open Contacts |
1000 VAC |
|
Between Contact and Coil |
4000 VAC |
|
Mechanical Life |
15 × 10<sup>6</sup> operations |
|
Electrical Life |
> 10<sup>5</sup> operations |
|
Physical Dimensions |
|
|
Height |
6U (262 mm, 10.3 in) |
|
Width |
20 mm (0.8 in) |
|
Depth |
125 mm (4.9 in) |
|
Weight |
0.30 kg (0.66 lb) approx. |
FAQ
Q: What is the brand?
A: Others
Q: What is the type?
A:Relay Card
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
