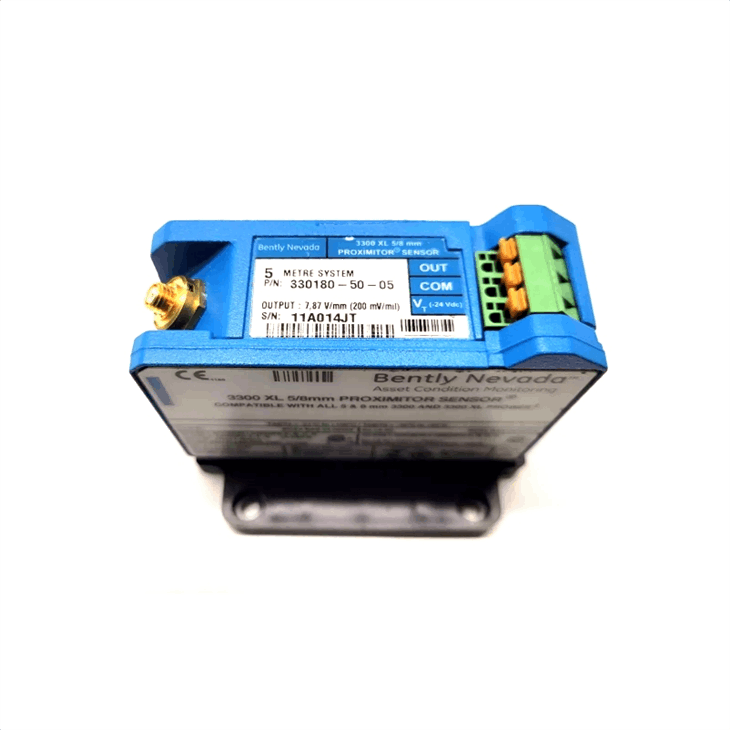

Bently Nevada 330180-50-05 3300 XL Proximitor Sensor
Item Number:330180-50-05
Brand:Bently Nevada
Price:$1
Lead Time: In stock
Description:3300 XL Proximitor Sensor
Payment: T/T
Product Description
Bently Nevada 330180-50-05 is a 5/8 mm proximity sensor that is part of the 3300 Series and is suitable for use in proximity sensor systems. The sensor is compatible with the 5 mm and 8 mm probes of the 3300 and 3300 XL series and is capable of measuring static (position) and dynamic (vibration) values, outputting a voltage that is proportional to the distance between the probe and the conductive surface. As part of the 3300 XL 8 mm proximity sensor system, the 330180-50-05 provides precision and versatility for a wide range of applications in vibration monitoring and position measurement.
Function & Features
- Product Content: Bently Nevada's 3300 XL 8 mm Proximity Sensor System consists of the 3300 XL 8 mm Probe, 3300 XL Extension Cable, and 3300 XL Proximitor Sensor. The system measures both static and dynamic.
- Interchangeable Components: The 330180-50-05 Proximity Sensor System's probe, extension cables, and sensors are fully interchangeable, eliminating the need for matching or bench calibration of individual components.
- Versatile Measurements: As part of the 3300 XL 8mm Proximity Sensor System, the Bently Nevada 330180-50-05 measures both static (position) and dynamic (vibration) values, outputting a voltage proportional to the distance between the probe tip and the conductive surface being measured.
Specifications
|
Parameter |
Specification |
|
Model Number |
330180--50-05 |
|
Cable Length |
5.0 meters |
|
Proximity Probe Input |
Compatible with non-contact 3300 Series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probes and extension cables. |
|
-17.5 Vdc to -26 Vdc, max. 12 mA (non-isolated) |
|
|
Proximitor Housing Material |
A308 Aluminum |
|
Connector Material |
Gold-plated brass or gold-plated beryllium copper |
|
Dimensions |
6.4 cm × 6 cm × 8 cm |
FAQ
Q: What is the brand?
A:Bently Nevada
Q: What is the type?
A:3300 XL Proximitor Sensor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
