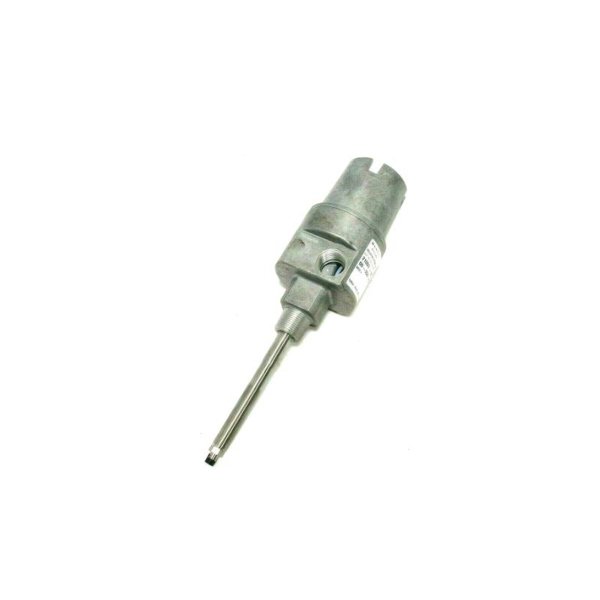

Bently Nevada 21000-16-10-00-066-03-02 Proximity Probe Housing Assemblies

The Bently Nevada 21000-16-10-00-066-03-02 is a high-performance proximity probe housing assembly engineered for demanding industrial environments. It serves as a protective and functional enclosure for proximity probes used in vibration and position monitoring systems. Designed by Bently Nevada, a globally trusted name in machinery protection and condition monitoring, this housing assembly supports external mounting of probes, allowing for easier maintenance and improved system uptime.

This specific model accommodates an 8 mm 3300 XL proximity probe and comes equipped with a 1-meter probe cable. The rugged design and compliance with CSA Type 4 and API 670 standards make it ideal for critical machinery across industries such as oil & gas, power generation, and heavy manufacturing. With components made from aluminum and 304 stainless steel, it offers long-term durability and protection against harsh operating conditions.

Technical Specifications

Applications

The Bently Nevada 21000-16-10-00-066-03-02 housing assembly is widely used in industrial applications where monitoring of rotating machinery is critical. Below are the primary areas where this product excels:

• Turbomachinery Monitoring

  Used in gas and steam turbines to monitor shaft vibration and radial displacement.

• Oil & Gas Processing Plants

  Ideal for compressors and other rotating equipment requiring reliable condition monitoring in explosive environments.

• Power Generation Facilities

  Installed on generators, motors, and pumps to ensure stable and efficient operation.

• Heavy Manufacturing Equipment

  Ensures early fault detection in gearboxes, fans, and high-speed spindles.

• Marine Propulsion Systems

  Provides critical real-time vibration data for marine turbines and engine components.

Product Advantages

• Robust Construction

  Manufactured with corrosion-resistant materials including aluminum and stainless steel, ensuring long operational life.

• Quick & Safe Access

  Allows maintenance personnel to inspect and replace probes without dismantling critical machinery.

• Environmental Sealing

  Rated IP67 for dust-tight and waterproof protection, ensuring safe usage in demanding environments.

• Standards-Compliant Design

  Complies with international industry standards (API 670, CSA Type 4) for reliable performance.

• Flexible Integration

  Compatible with widely used 3300 XL series probes and adaptable for various cable configurations.

• Reduced Downtime

  External mounting and plug-and-play design significantly reduce machine downtime during servicing.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 21000-16-10-00-066-03-02 housing assembly?

This housing protects and secures proximity probes while allowing easy access for maintenance without machinery disassembly.

2. Is this product suitable for hazardous environments?

Yes, its CSA Type 4 rating and robust sealing make it suitable for explosive and hazardous industrial zones.

3. Which probes are compatible with this housing?

The assembly is optimized for the Bently Nevada 3300 XL 8 mm proximity probe.

4. How is the probe mounted inside the housing?

The housing uses an NPT threaded mount and internal clamping mechanism to secure the probe in position.

5. Can the probe cable be customized in length?

This model comes with a 1-meter cable, but other configurations may be available upon request or under different model numbers.

6. Does this assembly include any adapters or plugs?

Yes, it comes with a 3/4-14 NPT plug, reducer fitting, and a cable grip assembly with grommets for cable sealing.

7. How resistant is this housing to water or dust?

It is rated IP67, meaning it is fully dust-tight and protected against temporary immersion in water.

8. What are the main materials used in the housing?

Aluminum for the body and 304 stainless steel for the sleeve, providing both lightweight and corrosion resistance.

9. What are the Probe weight?

The measures 1.1 kg.

10. How should the housing be installed to ensure optimal performance?

Install using the designated mounting threads and follow the recommended torque values and sealing practices outlined in the installation manual to ensure secure and leak-proof setup.
