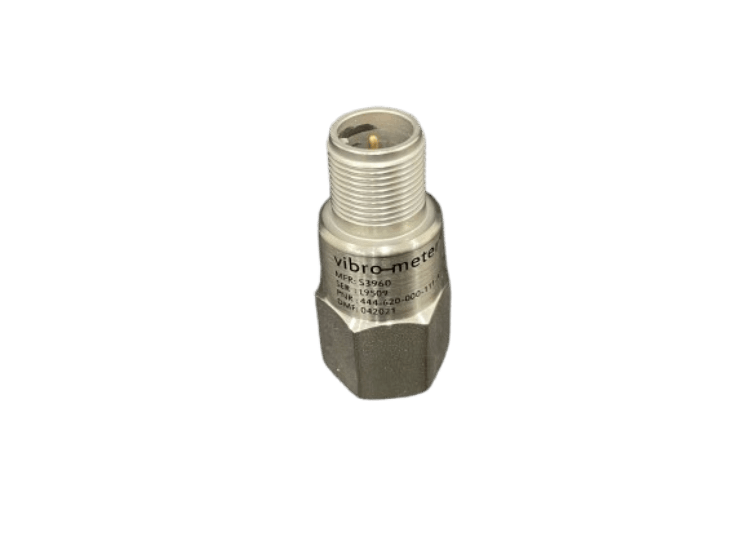

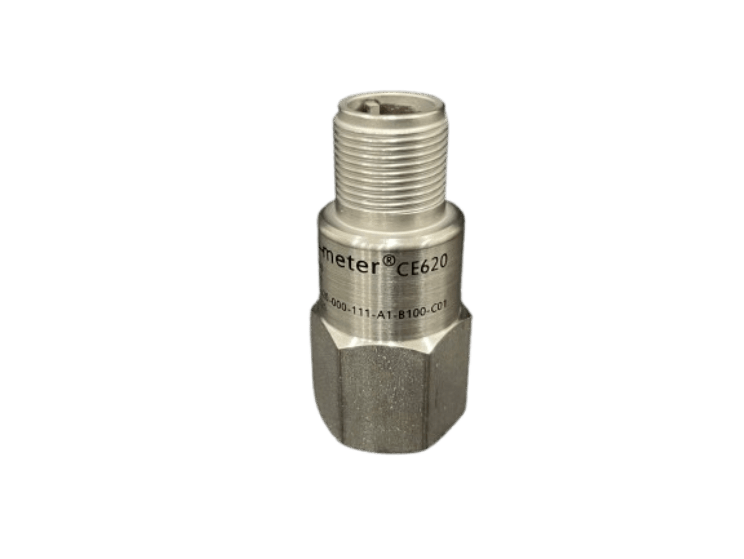

Vibro-Meter CE620 444-620-000-011-A1-B100 Piezoelectric Accelerometer
Item Number: CE620 444-620-000-011-A1-B100
Brand: Vibro-Meter
Lead Time: In stock
Description: Piezoelectric Accelerometer
Payment: T/T
Product Description
The CE620 444-620-000-011-A1-B100 piezoelectric accelerometer is an IEPE (Integrated Circuit Piezoelectric) vibration sensor available in sensor-only versions or with an internal cable protected by a stainless steel braid. The sensor is available in 100 mV/g or 500 mV/g sensitivity options for Standard Area and Hazardous Area (Ex certified version) and is available in either Detachable Cable or Integral Armored Cable configurations.
Related products: CE620 444-620-000-111-A1-B100-C01
Function & Features
- With built-in signal conditioning circuit, CE620 only needs 2-20 mA constant current power supply to output dynamic vibration signal (AC) and bias voltage (DC)
- Integrated armored cable: stainless steel braided layer protection, anti-mechanical damage.
- CE620 standard version: suitable for non-hazardous industrial environments (such as power plants, pumping stations).
- CE620 explosion-proof version (Ex): certified for use in potentially explosive gas environments (such as petrochemicals, mining)
Specifications
|
Parameter |
Details |
| Series | CE620 |
|
100 mV/g versions |
±80 g peak |
|
500 mV/g versions |
±16 g peak |
|
Transverse sensitivity |
<5% |
|
Linearity |
±1% maximum |
|
100 mV/g versions (ordering option code B100) |
−55 to 120°C (−67 to 248°F) |
|
500 mV/g versions (ordering option code B500) |
−55 to 90°C (−67 to 194°F) |
|
Humidity |
IP68 (according to IEC 60529) |
|
Shock vibration limit |
5000 g peak |
|
Continuous vibration limit |
500 g peak |
|
Base strain sensitivity |
0.0002 g peak/µε |
|
Electromagnetic sensitivity (50 Hz, 0.03 T) |
0.2 g |
FAQs
Q: What is the brand?
A: Others
Q: What is the type?
A: Piezoelectric Accelerometer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
