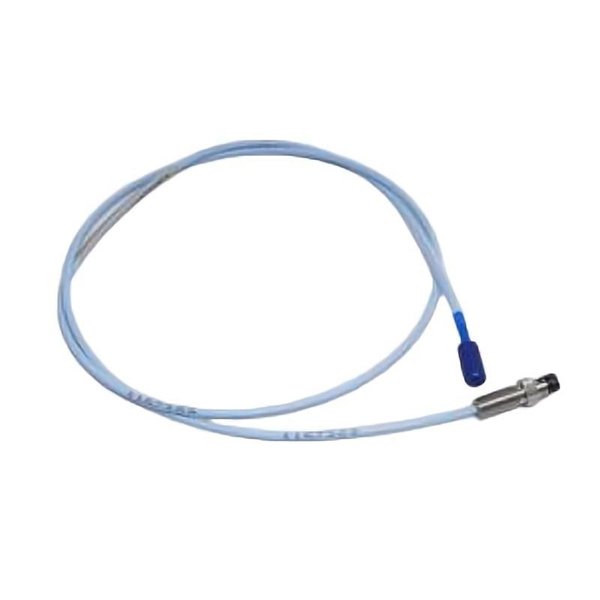

Bently Nevada 330103-02-08-10-02-RU 3300 XL 8mm Proximity Probes

The Bently Nevada 330103-02-08-10-02-RU 3300 XL 8mm Proximity Probe is a precision sensor engineered for accurate measurement of shaft vibration and displacement in critical rotating machinery. Belonging to the 3300 XL series, this probe ensures reliable, repeatable measurements required for machinery protection, predictive maintenance, and operational efficiency.

This probe uses eddy current technology to convert the distance between the probe tip and the rotating shaft into an electrical signal with high fidelity. Its total length of 1 meter and weight of 0.323 kg make it suitable for medium-range installations while ensuring signal stability. The stainless steel housing provides durability against corrosion, vibration, and industrial stress. The RU designation indicates compliance with Russian industrial standards. The probe is fully compatible with Proximitor sensors and 3300 XL monitoring systems, providing high-accuracy data for early fault detection and machinery health monitoring.

Product Specifications

Applications

The 330103-02-08-10-02-RU probe is widely applied in industrial machinery monitoring and protection systems. Its key applications include:

• Measuring radial vibration in turbines, compressors, pumps, and motors.

• Detecting axial shaft displacement to identify misalignment or mechanical overload.

• Providing real-time signals for predictive maintenance and early fault detection.

• Integration into power generation, petrochemical, and oil & gas machinery protection systems.

• Medium-distance installations where a 1-meter cable ensures optimal sensor placement.

• Detection of mechanical issues such as imbalance, looseness, and bearing wear.

Advantages

• High Measurement Accuracy: Provides precise and repeatable readings of vibration and displacement.

• Medium Cable Length: 1-meter cable allows flexible installation while maintaining signal integrity.

• Durable Construction: Stainless steel housing ensures resistance to corrosion, vibration, and shock.

• Thermal Stability: Operates reliably from –35 °C to +180 °C.

• API 670 Compliance: Meets international standards for machinery protection and monitoring.

• System Compatibility: Fully compatible with 3300 XL Proximitor sensors and monitoring modules.

• Electromagnetic Noise Immunity: Shielded cable ensures accurate signal transmission.

• Interchangeable Design: Can replace other 3300 XL 8mm probes without recalibration.

FAQ

1. What sensing principle does this probe use?

It uses eddy current technology to measure the gap between the probe tip and the shaft surface.

2. What is the linear measurement range?

The typical linear range is 2 mm when used with a compatible Proximitor sensor.

3. How does the 1-meter cable affect calibration?

The probe and cable are factory-matched to ensure calibration stability across the full cable length.

4. Can it measure both radial and axial shaft movement?

Yes, installation orientation determines whether it measures radial vibration or axial displacement.

5. What type of electrical output does the probe provide?

It generates a voltage signal proportional to shaft displacement.

6. How does it handle electromagnetic interference?

The shielded cable reduces EMI and maintains accurate signal transmission in electrically noisy environments.

7. Is it suitable for high-vibration environments?

Yes, it operates reliably under vibration levels up to 10 g across 10–2000 Hz.

8. What is the operating temperature range?

It operates reliably from –35 °C to +180 °C.

9. Can it be used with legacy Bently Nevada systems?

Yes, it is compatible with both 3300 and 3500 series monitoring systems.

10. What industry standards does this probe comply with?

It meets API 670 standards for vibration and displacement monitoring in rotating machinery.
