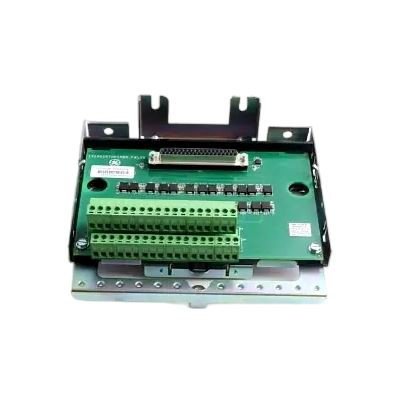

General Electric IS200STTCH2A DIN Rail Mounted Thermocouple Terminal Board
Item Number:IS200STTCH2A
Brand:GE（General Electric）
Lead Time: In stock
Description:DIN Rail Mounted Thermocouple Terminal Board
Payment: T/T
Product Description
The GE IS200STTCH2A thermocouple terminal board is a DIN rail mounted thermocouple terminal board from the early Mark Vie series. This board is a signal interface component that provides a wiring point for multiple thermocouple sensors and transmits the temperature signal to an upstream control module (such as a TCRT card).
Function & Features
- 48-Position Terminal Block: One side of the IS200STTCH2A board features a large 48-position terminal block.
- Split Connection: The IS200STTCH2A terminal block is divided into two separate 24-screw connection sections, allowing for grouped wiring (for example, corresponding to different thermocouple groups or different measurement areas).
- 37-Pin Connector: A 37-pin female DC connector is located in the center of the other side of the IS200STTCH2A board. This connector is used for internal connections to other parts of the system via cables.
Specifications
| Parameter | Description |
|---|---|
| Product Model | IS200STTCH2A |
| Product Name | DIN Rail Mounted Thermocouple Terminal Board |
| Belonging System | GE Speedtronic Mark VI Control System |
| External Connection | 1 x 48-position screw terminal strip (divided into 2 groups, 24 positions each) |
| Material Safety Certification | 94V-0 Flammability Rating |
| Board Identification Code | 6BA00 |
| Dimension | 21.1*73.4 cm |
| Weight | 0.33kg |
FAQ
Q: Where is the IS200STTCH2A board commonly used?
A:It is primarily used in applications requiring temperature monitoring, particularly in GE gas and steam turbine control systems, to monitor critical parameters such as exhaust temperature, bearing temperature, and flame temperature.
Q: What does the "94V-0" code on the IS200STTCH2A board represent?
A:94V-0 is the flame retardancy rating for plastic materials. This is the highest level of flame retardancy, indicating that the plastic material used to make the board's baseplate will self-extinguish within a very short time (typically within 10 seconds) upon contact with an open flame and will not release flaming particles.
Q: What options are available if a customer experiences a malfunction with the IS200STTCH2A they purchased?
A: Repair Service: We'll repair your existing faulty card, typically with a 12-month warranty.
Replacement Parts: We'll purchase new, unused parts or repair and test refurbished parts.
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
