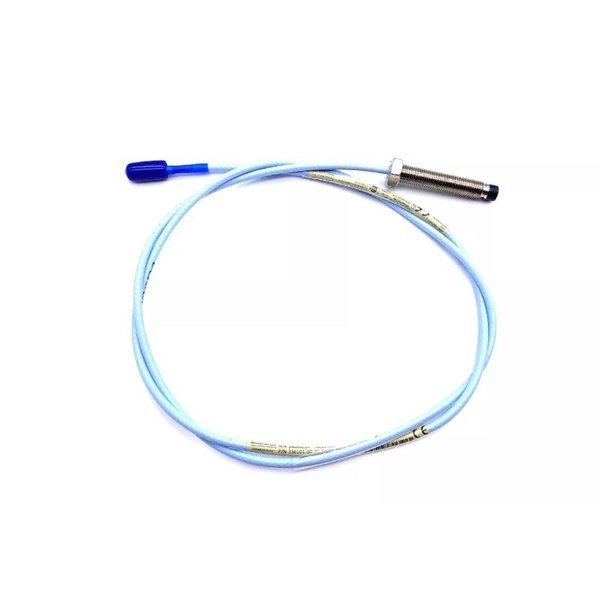

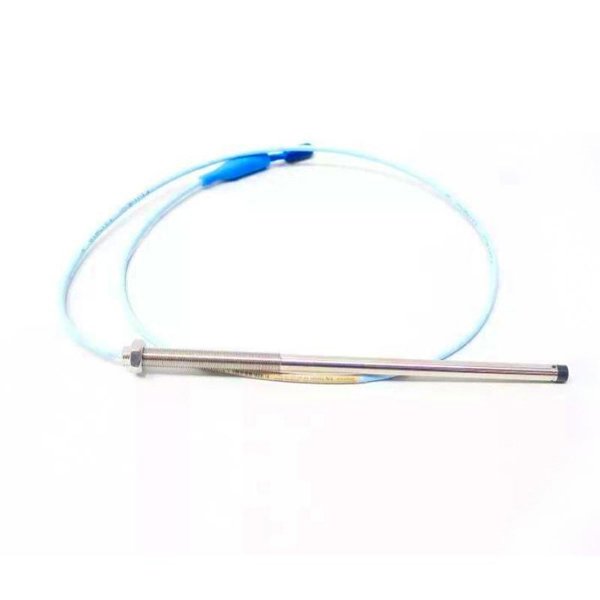

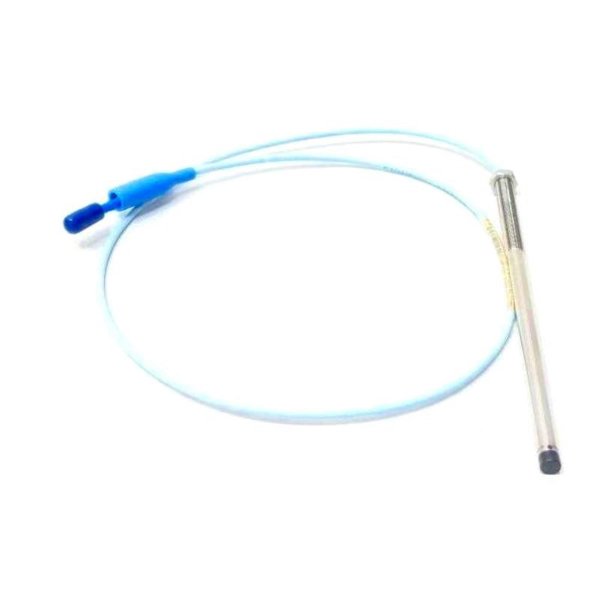

Bently Nevada 330101-39-63-15-12-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-39-63-15-12-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:38
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-39-63-15-12-05 is part of the 3300 XL 8 mm Proximity Transducer System. It is designed for measuring both static (position) and dynamic (vibration) parameters on fluid-film bearing machinery, and for Keyphasor reference and speed measurements. It provides high accuracy, robustness, and is fully compliant with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Total Length | 1.5 meters |
| Weight | 0.484 kg |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial FEP-insulated |
| Operating Temperature (Standard) | -52°C to +177°C |
| Operating Temperature (ETR) | Up to +218°C |
| Minimum Target Size | 15.2 mm |
| Shaft Diameter (Recommended) | ≥76.2 mm |
| Linear Range | 2 mm |
| Frequency Response | 0–10 kHz |
| Output Scale Factor | 7.87 V/mm ±5% |
| Humidity | <3% change at 93% RH |
Applications
-
Vibration monitoring on turbines, compressors, pumps, and motors
-
Position monitoring in fluid-film bearing machinery
-
Keyphasor reference signals for rotational speed and phase detection
-
Systems requiring compliance with API 670 standard
Advantages
-
Fully interchangeable components (probe, extension cable, Proximitor)
-
Backward compatible with non-XL series components
-
Rugged design with TipLoc and CableLoc technology for enhanced durability
-
Excellent RFI/EMI immunity for reliable operation in harsh environments
-
SpringLoc terminal strips for quick and secure field wiring
FAQ
Q1: What is the total length of this probe?
A1: The total length is 1.5 meters.
Q2: What material is used for the probe tip?
A2: The tip is made of durable PPS plastic.
Q3: Can it operate in high-temperature environments?
A3: Yes, the extended temperature range version can handle up to +218°C.
Q4: Is it compatible with older 3300 series systems?
A4: Yes, it is fully backward compatible and interchangeable.
Q5: What is the recommended shaft diameter for installation?
A5: At least 76.2 mm for optimal performance.
Q6: Does it meet API 670 standards?
A6: Yes, it is fully compliant with API 670 requirements.
Q7: How resistant is it to radio frequency interference?
A7: It has enhanced RFI/EMI immunity, suitable even in fiberglass enclosures.
Q8: What is the weight of the probe?
A8: Approximately 0.484 kg.
Q9: What is the typical linear measurement range?
A9: The linear range is 2 mm.
Q10: What type of cable is used?
A10: A 75Ω triaxial cable with FEP insulation.
