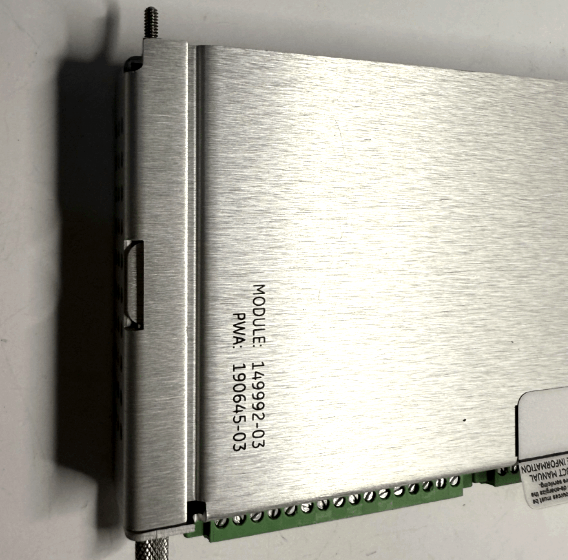

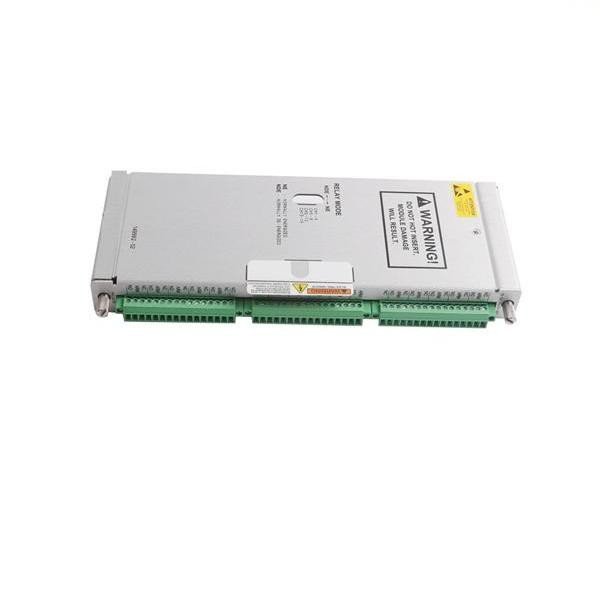

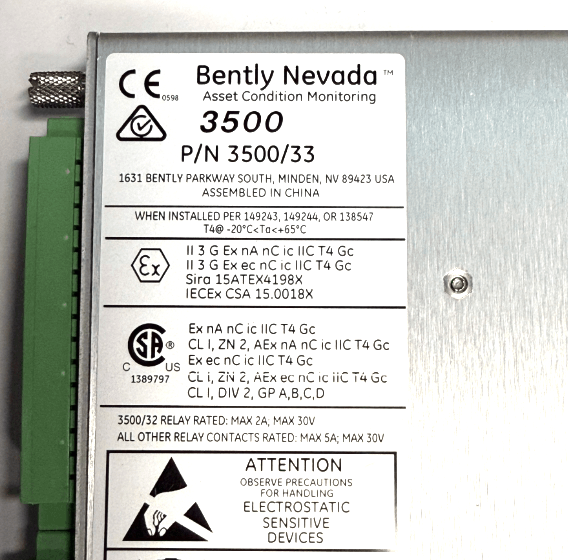

Bently Nevada 3500/33-03-00 149992-03 16-Channel Relay Module

Bently Nevada 3500/33 - 03 - 00 149992 - 03 sixteen-channel relay module is a key component in the 3500 Series monitoring system, specifically designed to handle and control alarm and shutdown operations of a variety of industrial equipment. The module has 16 independent relay output channels, each of which can be configured to respond to specific alarm conditions, such as mechanical vibration, temperature, position and other monitoring parameters, enabling users to manage alarms and set protection based on the operating status of the equipment.

Fuctions & Features

• Comparison and judgment: The 149992-03 16-Channel Relay Module has preset thresholds for different monitoring parameters. These thresholds are set based on the normal operating range of the equipment and safety standards. The pre-processed signal is compared with the preset threshold. When the input signal exceeds or falls below the corresponding threshold, the module will determine that the equipment has an abnormality.

• Input and monitoring: The 149992-03 16-Channel Relay Module is connected to various sensors used to monitor the operating parameters of industrial equipment, such as vibration sensors, temperature sensors, position sensors, etc. These sensors will collect relevant operating data of the equipment in real time and convert it into electrical signals for transmission to the 3500/33-03-00 module.

• Relay control: Once the 149992-03 16-Channel Relay Module determines that the equipment is abnormal, it will drive the corresponding relay action through its internal control circuit according to the pre-configuration.

Specification

Appilications of Bently Nevada 3500/33-03-00 149992-03 16-Channel Relay Module:
