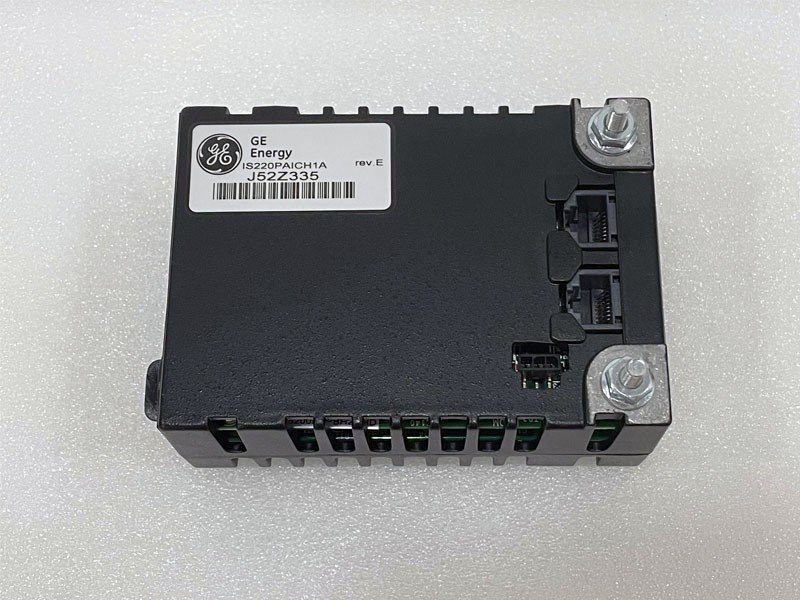

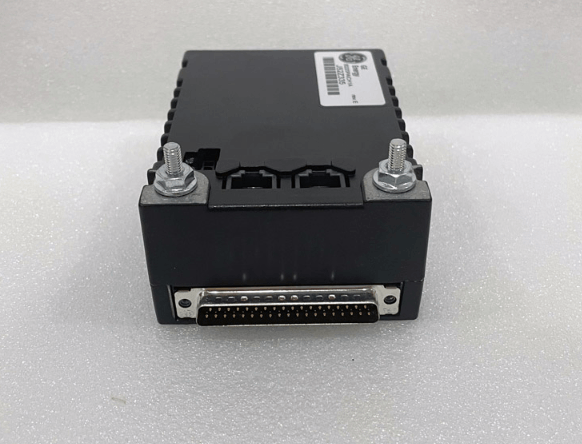

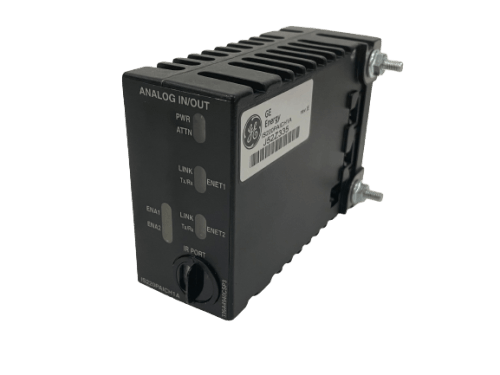

General Electric IS220PAICH1A IO Pack, Analog I/O Basic
Product Description
GE IS220PAICH1A is an analog input/output (I/O) module developed for the GE Mark VIe series. The IS220PAICH1A module provides an electrical interface for connecting one or two I/O Ethernet networks to an analog input terminal board. It contains a processor board (and an acquisition board dedicated to analog input functions.The following is a detailed description of the GE IS220PAICH1A IO Pack, Analog I/O Basic：
Fuctions & Features
- Supports up to 10 analog input channels.
- The first 8 channels can be configured as ±5 V, ±10 V, or 0-20 mA current loop inputs.
- The last 2 channels can be configured as +1 mA or 0-20 mA current inputs.
2.Analog Outputs:
- Supports two 0-20 mA current loop outputs.
- PAICH2 version additionally supports 0-200 mA current on the first output channel.
3.Communication Interface: Connects to the I/O Ethernet network via dual RJ45 Ethernet interfaces.
4.Power Input: Uses a three-pin power input with a rated voltage of 28 V DC and an operating voltage range of 18-32 V DC.
Specification
|
Parameter |
Details |
|
Product Series |
Mark VIe |
|
Input Channels |
10 analog inputs |
|
Output Channels |
2 x 0-20 mA current loop outputs |
|
Power Requirements |
+5 V DC, 6 A |
|
Power Supply Voltage |
28 V DC |
|
Operating Voltage Range |
18-32 V DC |
|
Input Configuration |
±5 V, ±10 V, 0-20 mA, +1 mA |
|
Output Configuration |
0-20 mA (PAICH2 supports 0-200 mA) |
|
Communication Interface |
Dual RJ45 Ethernet ports |
|
Connector |
DC-37 pin connector |
|
Diagnostic Features |
LED indicators, infrared diagnostic port |
|
Supported Terminal Boards |
IS200STAIH1A, IS200STAIH2A, IS200TBAIH1C |
