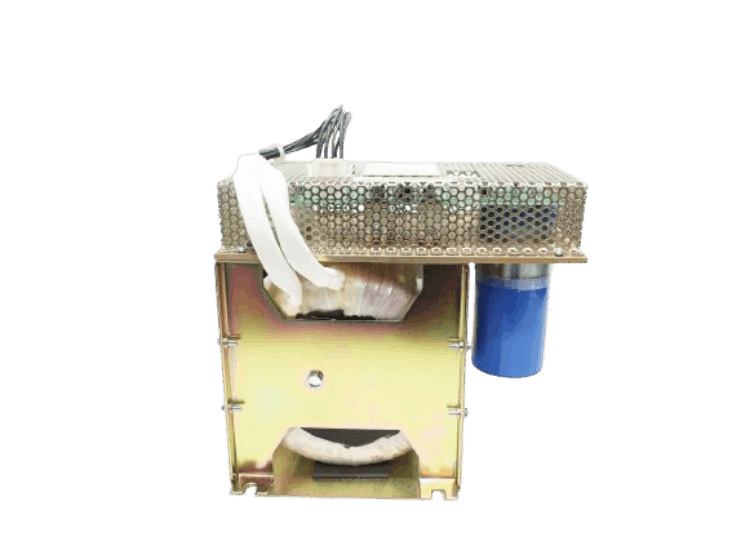

General Electric DS2020DACAG2 Power Conversion Module
Item Number:DS2020DACAG2
Brand: GE
Lead Time: In stock
Description:Power Conversion Module
Payment: T/T
Product Description
GE DS2020DACAG2 is a power conversion module for the Speedtronic Mark V gas/steam turbine control system. It converts AC (VAC) to DC (VDC) power, can be used in conjunction with the main power supply, and provides buffer power during brief power outages.
Note: It must be installed in a non-corrosive, non-flammable environment.
Function & Features
- Power conversion: GE DS2020DACAG2 converts input AC power (VAC) to DC power (VDC) to power the control system. Supports battery backup power (optional) to provide short-term power support when the external power supply is interrupted.
- Transient buffering capability: GE DS2020DACAG2 has a built-in local energy storage device (such as capacitors or batteries) to temporarily maintain the operation of the control system when the main power fails ("ride-through" function).
- Installation method: GE DS2020DACAG2 uses a four-corner bracket + bolt fixation and can be installed at the bottom of the drive cabinet.
Specifications
|
Parameter |
Details |
|
Model |
DS2020DACAG2 |
|
Series |
Mark V |
|
Input Terminals |
Screw terminals (AC L/N/GND) |
|
Output Terminals |
Screw terminals (DC +/- poles) |
|
None (External monitoring device required) |
|
|
Heat Dissipation Method |
Natural convection / Forced air cooling |
|
Frequency Range |
50/60Hz ±5% |
|
Conversion Efficiency |
≥85% |
|
Battery Backup Support |
Optional, supports short-term power outage buffering |
|
Installation Method |
Floor mounting (4 brackets + bolts for fixation) |
