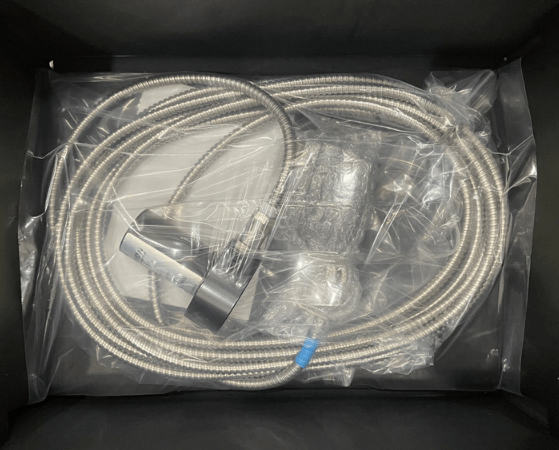

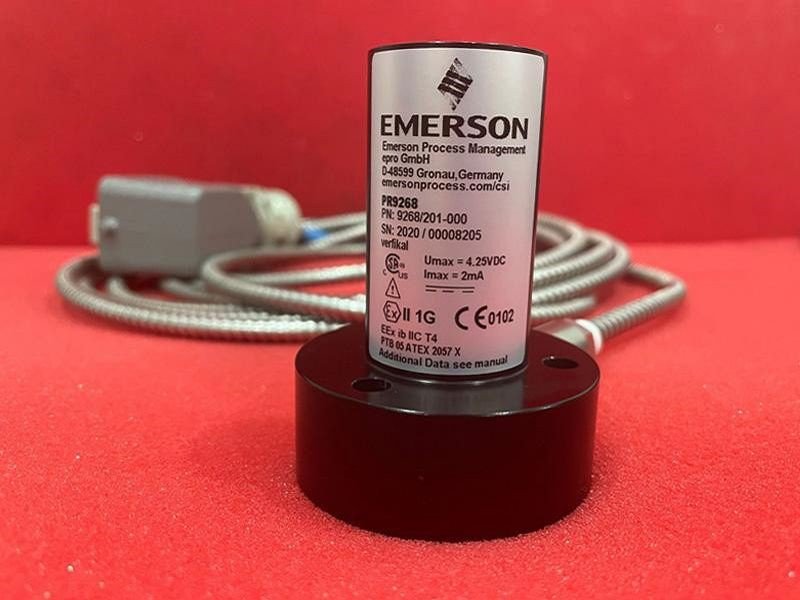

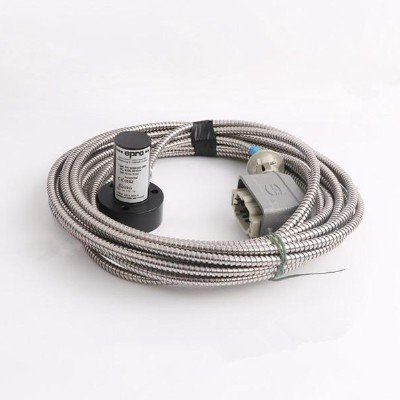

Epro PR9268/201-000 Electrodynamic Velocity Vertical Sensor
Item Number:PR9268/201-000
Brand:EPRO
Lead Time: In stock
Description: Electrodynamic Velocity Vertical Sensor
Payment: T/T
Product Description
EPRO PR9268/201-000 is an electric vertical speed sensor, which belongs to mechanical speed sensor. It is mainly used for absolute vibration measurement of key turbomachinery such as steam turbines, gas turbines, water turbines, compressors, pumps and fans to monitor the vibration of the equipment casing.it can timely detect abnormal vibration of equipment and prevent equipment failure; it is suitable for a variety of turbomachinery such as compressors, pumps and fans.
Fuctions & Features
- Absolute vibration measurement: It can accurately measure the absolute vibration of turbine machinery and provide key data for monitoring the operating status of the equipment.
- Casing vibration monitoring: Measuring the casing vibration of equipment such as steam, gas and water turbines helps to detect abnormal vibration of equipment in time and prevent equipment failure.
- Adapt to a variety of equipment: It is suitable for various types of turbine machinery, such as compressors, pumps and fans, and has a wide range of applications.
Specification
|
Parameter |
Specification |
|
Sensitivity |
17.5 mV/mm/s |
|
Frequency Range |
14 to 1000 Hz |
|
Natural Frequency |
14 Hz ± 7% @ 20°C (68°F) |
|
Transverse Sensitivity |
< 0.1 @ 80 Hz |
|
Vibration Amplitude |
500 µm Peak-to-Peak |
|
Amplitude Linearity |
< 2% |
|
Maximum Acceleration |
|
|
Continuous |
10g (98.1 m/s²) Peak-to-Peak |
|
Intermittent |
20g (196.2 m/s²) Peak-to-Peak |
|
Maximum Transverse Acceleration |
2g (19.62 m/s²) |
|
Damping Factor |
~0.6% @ 20°C (68°F) |
|
Resistance |
1723 Ω ± 2% |
|
Inductance |
≤ 90 mH |
|
Active Capacitance |
< 1.2 nF |
