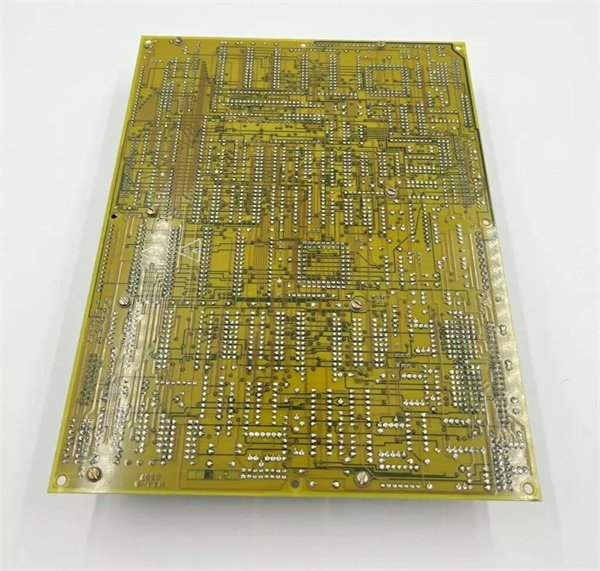

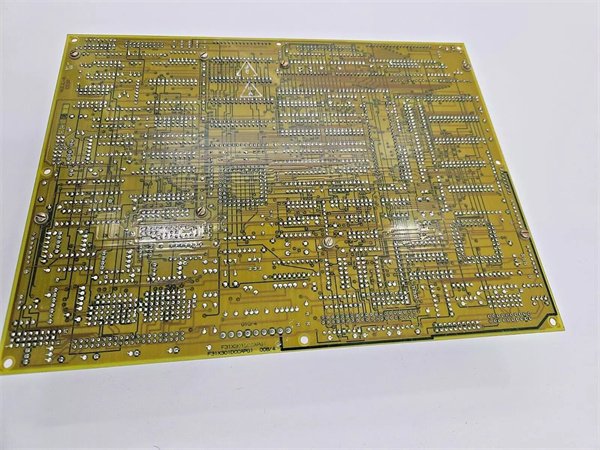

General Electric 531X306LCCBFM1 High-Temperature Thermocouple Input Terminal Board

The 531X306LCCBFM1 is a specialized high-temperature thermocouple input terminal board developed by Emerson for its Ovation Distributed Control System (DCS)—designed to condition and distribute signals from high-temperature thermocouples (e.g., Type K, S) to core data acquisition modules like the 531X306TCADG1. Unlike the low-temperature RTD-focused 531X307LTBADG1 (optimized for -200°C to +200°C), the 531X306LCCBFM1 addresses the unique challenges of high-temperature monitoring: thermocouple nonlinearity, cold-junction errors, and EMI from high-heat equipment (e.g., furnaces, turbines), ensuring accurate signal transmission to the Ovation DCS.

With 12 isolated channels and dedicated cold-junction compensation (CJC) per channel group, the 531X306LCCBFM1 acts as a critical intermediary between field thermocouples and thermocouple input modules. It linearizes nonlinear thermocouple signals (e.g., Type S at 1500°C) and filters out line noise from nearby power lines or heating elements, reducing measurement drift by up to 50% compared to unconditioned signals. For plant engineers in power generation, metal processing, or chemical manufacturing, the 531X306LCCBFM1 is indispensable: it enhances the performance of the 531X306TCADG1, ensuring compliance with high-temperature safety standards (e.g., API 560 for furnace design) and preventing costly process failures due to inaccurate temperature data.

Detailed Parameter Table

Core Advantages and Technical Highlights

Dedicated High-Temperature Signal Conditioning

The 531X306LCCBFM1 is engineered to handle the extreme temperature ranges of industrial thermocouples (up to +1700°C for Type B). Its built-in linearization corrects for the inherent nonlinearity of thermocouples—for example, Type K thermocouples have a 2% deviation from linearity at 1000°C, which the board reduces to <0.1% via preprogrammed calibration curves. This linearization ensures the 531X306TCADG1 (thermocouple input module) receives a proportional signal, eliminating the need for software-based correction in the Ovation controller. Additionally, dedicated CJC sensors per 3-channel group minimize cold-junction errors—a critical issue for high-temperature measurements, where a 1°C error at the terminal board can translate to a 5–10°C error in furnace temperature readings.

Robust Isolation and Noise Filtering

Unlike generic thermocouple terminal blocks, the 531X306LCCBFM1 features 1000 V DC channel-to-channel isolation and a 50/60 Hz notch filter—essential for high-heat environments with heavy electrical loads (e.g., steel mill furnaces or power plant turbines). The isolation prevents ground loops between thermocouples installed in different parts of a furnace, while the notch filter suppresses noise from heating element power supplies. In a coal-fired power plant, for instance, the board filters out 60 Hz noise from boiler feedwater pumps, ensuring the 531X306TCADG1 accurately measures boiler tube temperatures (500°C–600°C) without interference. Its metal chassis with high-temperature-resistant coating further protects components from radiant heat, extending the module’s lifespan in hot control cabinets.

Seamless Integration with Ovation High-Temp Ecosystem

The 531X306LCCBFM1 is designed to work in tandem with Emerson’s high-temperature thermocouple input module (531X306TCADG1) and Ovation controller (531X101PAMIG1), creating a end-to-end high-temperature monitoring loop. It shares the same 3U rack-mount form factor as the 531X307LTBADG1, enabling side-by-side installation in mixed high/low-temperature control systems (e.g., a chemical plant with both furnaces and refrigerated storage). The board’s 26-pin D-sub connector directly mates with the 531X306TCADG1, eliminating custom adapters and reducing wiring time by 25%. This integration ensures conditioned thermocouple signals flow seamlessly to the DCS, making it easy to scale monitoring systems for additional furnaces or turbines.

Typical Application Scenarios

Power Plant Boiler Temperature Monitoring

In a coal-fired power plant, the 531X306LCCBFM1 is installed in the boiler control rack to condition thermocouple signals:

Type K thermocouples (installed in boiler tubes, monitoring 500°C–600°C) connect to the board’s input terminals;

The 531X306LCCBFM1 applies CJC to correct for ambient temperature fluctuations in the control room (20°C–30°C) and linearizes the Type K signal;

Conditioned signals are sent via the 26-pin D-sub connector to the 531X306TCADG1, which converts them to digital data for the Ovation controller;

If boiler tube temperature exceeds 620°C (a safety threshold), the controller triggers a fuel flow reduction via the 531X304DCOADG1 (digital output module), preventing tube failure.

Steel Mill Furnace Control

In a hot-rolling steel mill, the 531X306LCCBFM1 supports blast furnace temperature monitoring:

Type S thermocouples (tracking 1200°C–1500°C in the furnace hearth) connect to the board;

Its 50/60 Hz notch filter suppresses noise from furnace power supplies (which operate at 60 Hz), ensuring stable signal transmission;

The board’s channel isolation prevents cross-talk between thermocouples in different furnace zones (each powered by separate electrical circuits);

Data from the 531X306TCADG1 (conditioned by the 531X306LCCBFM1) is used to adjust oxygen flow into the furnace, maintaining optimal steel melting temperature (1538°C).

Chemical Reactor High-Temp Safety

In a chemical plant producing ethylene, the 531X306LCCBFM1 monitors reactor temperatures:

Type E thermocouples (monitoring 300°C–800°C in the reactor vessel) connect to the board;

Built-in linearization corrects Type E’s nonlinearity at high temperatures, ensuring the Ovation controller receives accurate data;

If a temperature spike (e.g., 850°C) is detected, the controller initiates a coolant injection via the 531X304DCOADG1, preventing a reaction runaway. The board’s SIL 2 certification ensures compliance with IEC 61511 (process safety standards).
