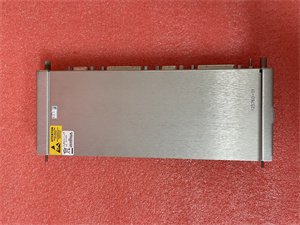

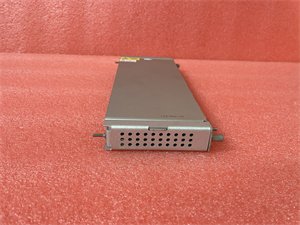

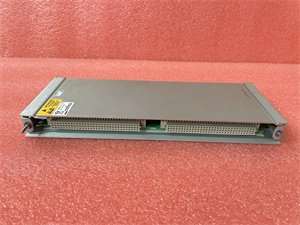

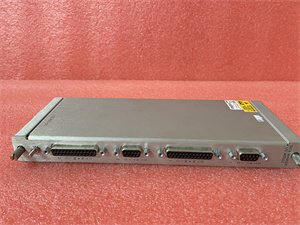

Bently Nevada 125760-01 Data Manager I/O Module
Manufacturer:Bently Nevada
Product Number:Bently Nevada 125760-01
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 125760-01 is a high-performance data manager I/O module designed for seamless integration with the Bently 3500 Series Monitoring System. Serving as the primary interface for 3500 racks, it supports real-time configuration, data retrieval, and communication with external processors like TDXnet, TDIX, and DDIX. Installed in Slot 1 adjacent to the power supply, this module ensures efficient data management for rotating machinery in industries such as energy, manufacturing, and oil & gas. While not part of the critical monitoring path, it enhances system reliability by enabling remote diagnostics and reducing manual intervention.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 125760-01 |
| Product Type | Data Manager I/O Module |
| Series | 3500 |
| Input Signal Range | -10 V DC to +10 V DC |
| Power Consumption | 7.7 W |
| Axis Power Supply | -24 V DC |
| Sensor Power Supply | -24 V DC |
| Weight | 0.82 kg (1.8 lb) |
| Dimensions | 9.50 in × 0.96 in × 3.90 in (24.1 cm × 2.4 cm × 9.9 cm) |
| Communication Protocols | Proprietary (for rack configuration) |
| Compatibility | TDXnet, TDIX, DDIX communication processors |
| Mounting Slot | Slot 1 (rack interface) |
Advantages and Features
- Centralized Data Management: Enables remote configuration and real-time data retrieval for 3500 racks.
- Flexible Communication: Supports multiple external processors for seamless integration with industrial networks.
- Space-Efficient Design: Compact form factor suits both small and large-scale monitoring systems.
- Redundancy Support: TMR (Triple Modular Redundancy) version available for mission-critical applications, including channel comparison and error logging.
- Non-Critical Path Operation: Ensures continuous monitoring even if the module encounters issues.
Application Areas and Use Cases
Industry Applications:
- Power Generation: Monitoring steam turbines and generators.
- Oil & Gas: Protecting pumps and compressors in offshore platforms.
- Manufacturing: Optimizing performance of conveyor systems and rotating equipment.
Case Study: A U.S. petrochemical plant reduced downtime by 30% by using the 125760-01 to remotely monitor compressor vibrations, enabling predictive maintenance and avoiding costly failures.
Competitor Comparison
- Enhanced Protocol Support: Backs multiple communication standards, surpassing single-protocol alternatives.
- Simplified Installation: Requires only Slot 1 placement, unlike competitors with complex slot requirements.
- Redundancy Flexibility: TMR version offers advanced error detection, outperforming basic non-redundant modules.
Selection Recommendations
- Rack Compatibility: Ensure alignment with 3500 Series racks (full-size or mini).
- Redundancy Needs: Opt for the TMR version for high-reliability environments.
- Communication Requirements: Verify compatibility with TDXnet, TDIX, or DDIX processors.
Precautions
- Slot Placement: Install strictly in Slot 1 to avoid system errors.
- Power Supply: Use a stable -24 V DC power source to prevent voltage fluctuations.
- Firmware Updates: Regularly update firmware to access the latest features and bug fixes.
