Bently Nevada 3500/61 163179-02+133819-02 Temperature Monitor Module
Manufacturer: Bently Nevada
Product Number: 3500/61 (163179-02, 133819-02)
Category: Six-Channel Temperature Monitor Module
Number of Channels: 6
Input Types: RTD and Thermocouple (TC)
Series: 3500 Series Machinery Protection System
Outputs: Recorder outputs per channel
Configuration: User-programmable alarm setpoints via 3500 Rack Configuration Software
Product Description

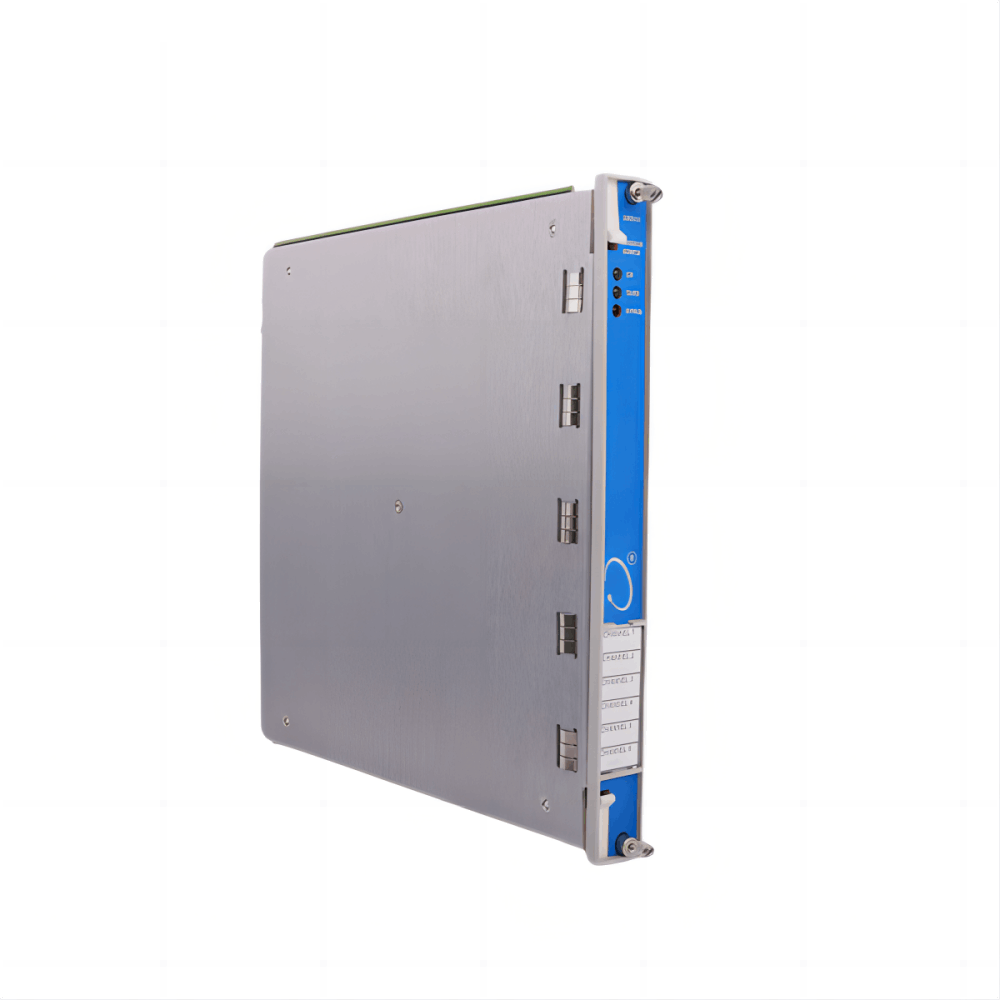

The Bently Nevada 3500/61 (163179-02 + 133819-02) is a six-channel temperature monitoring module designed for use in the 3500 Series Machinery Protection System.

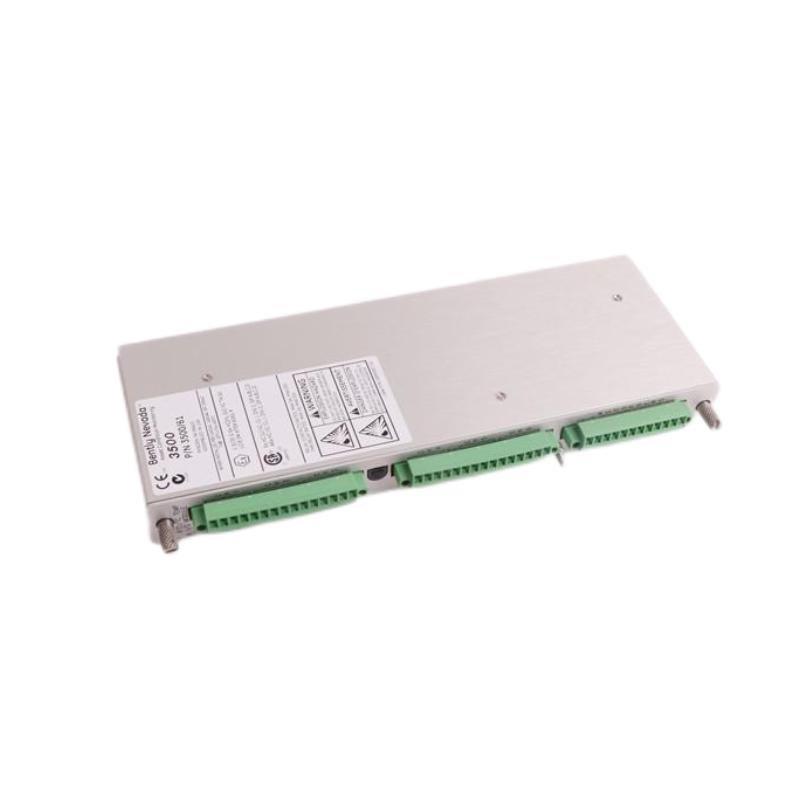

This configuration consists of the 163179-02 monitor module paired with the 133819-02 isolated I/O module, providing complete isolation between input channels, system backplane, and field devices.
The 3500/61 measures temperature using Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), converting sensor signals into engineering units for precise monitoring of machinery temperatures. Each channel continuously compares its temperature readings with user-defined Alert and Danger setpoints, triggering alarms when limits are exceeded.
Each of the six channels provides an individual 4–20 mA proportional output, allowing for external control, display, or data acquisition integration.
Key Features
-
Six fully independent, isolated input channels.
-
Supports both RTD and Thermocouple inputs.
-
Two programmable alarm setpoints (Alert and Danger) per channel.
-
4–20 mA output available for each channel.
-
Electrical isolation between channels, I/O, and rack backplane.
-
Configurable via 3500 Configuration Software for sensor type, range, and alarm levels.
-
Compact, full-height module design for the 3500 rack system.
-
Compliant with API 670 and major industrial safety standards.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/61 | Six-channel temperature monitor |
| Assembly | 163179-02 + 133819-02 | Monitor + Isolated I/O module |
| System Compatibility | Bently Nevada 3500 Series Rack | Full-height slot module |
| Number of Channels | 6 channels | Independently configurable |
| Input Types | RTD or Thermocouple | Field-configurable per channel |
| Supported RTDs | Pt100, Nickel, Copper | 2-, 3-, or 4-wire configuration |
| Supported Thermocouples | Types E, J, K, T | Field-selectable |
| Recorder Output | 4–20 mA per channel | Proportional to temperature |
| Input Isolation | 500 V channel-to-channel and to backplane | Electrical isolation for high noise immunity |
| Accuracy | ±3 °C typical at 25 °C | Depending on input type |
| Alarm Setpoints | Alert and Danger per channel | Configurable via software |
| Signal Processing | Linearization and filtering | Per-channel processing |
| Power Consumption | Approx. 9 W | Typical |
| Operating Temperature Range | –30 °C to +65 °C | Continuous industrial operation |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.91 kg (2.0 lb) | Typical |
| Mounting Type | Full-height slot | Installed in 3500 rack |
| Compliance | API 670, CE, CSA, ATEX | Meets global industrial standards |
