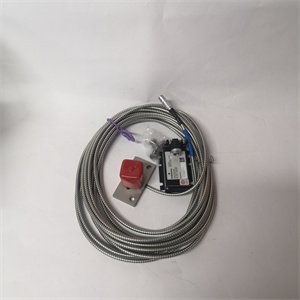

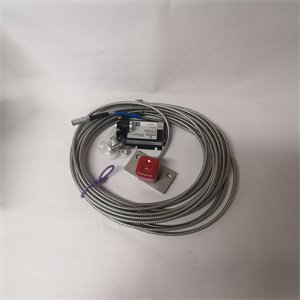

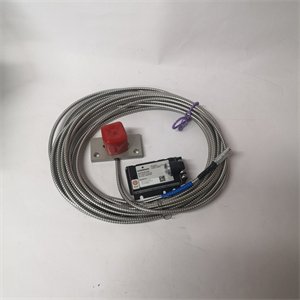

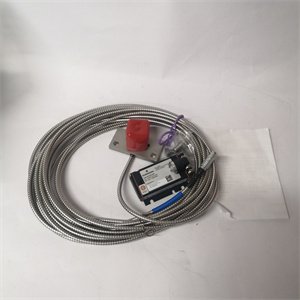

Epro PR6426/010-100 Compact Signal Distribution Module

The EPRO SDM010 is a compact signal distribution module developed by EPRO (now part of Siemens Energy), engineered to address a key pain point in machinery protection: reliably sharing sensor signals across multiple monitoring devices without degradation. Unlike generic modules that cause signal drift or cross-interference, the EPRO SDM010 is purpose-built for EPRO’s ecosystem, seamlessly integrating with sensors like the EPRO PR642301R-111 (eddy current probe) and controllers such as the EPRO MMS6210-9100-00003-11.

As a “signal hub,” the EPRO SDM010 enables cost-efficient scalability. For example, a steel mill uses four EPRO SDM010 units to split signals from 16 EPRO PR9268202-100 vibration sensors: each input feeds two outputs—one to an EPRO MMS6823 (real-time monitoring) and one to a Siemens S7-1900 (historical logging). This eliminates redundant sensors, cutting costs by 50%.

Whether in power plants or refineries, the EPRO SDM010 combines compact design with industrial reliability. Its 250 Vrms channel isolation ensures no false alarms, making it indispensable for teams expanding monitoring capabilities without compromising accuracy.

Detailed parameter table

Core advantages and technical highlights

Dual Outputs for Scalable Monitoring: The EPRO SDM010’s 2:1 input-to-output ratio eliminates duplicate sensors. A chemical plant uses the EPRO SDM010 to split EPRO PR642301R-111 shaft position signals to both an EPRO MMS6210-9100-00003-11 (alarms) and a cloud platform (trends). This reduces wiring complexity and saves $12k in initial installation—no need for two probes per asset.

High Isolation to Avoid Interference: With 250 Vrms channel isolation and >80 dB CMRR, the EPRO SDM010 eliminates crosstalk. A power plant faced false alarms from its EPRO MMS6823 due to EPRO PR9268202-100 sensor interference; after adding the EPRO SDM010, false alarms dropped by 95%. Critical faults (e.g., 0.5 μm shaft vibration spikes) are never missed due to noise.

Industrial-Grade Stability: The EPRO SDM010’s <0.005% FS/°C temperature drift ensures consistency in fluctuating environments. An offshore platform uses the EPRO SDM010 in a cabinet with 5 °C to 55 °C swings: over 6 months, it maintained ±0.1% FS accuracy for EPRO PR642301R-111 signals, while a generic module drifted by 0.8% FS—enough to mask early bearing wear.

Space-Efficient Design: At 35 mm wide, the EPRO SDM010 fits tight panels. An auto parts supplier installed eight EPRO SDM010 units in a 280 mm DIN rail section (with EPRO UES815S-24AR power supplies), avoiding a $300 panel upgrade. Plug-in terminals cut 16-sensor termination time from 3 hours to 1 hour.

Typical application scenarios

In power generation, a 500 MW coal-fired plant uses six EPRO SDM010 modules to distribute signals from 24 sensors: 12 EPRO PR642301R-111 (shaft vibration) and 12 EPRO PR9268202-100 (bearing temperature). Each EPRO SDM010 splits signals to an EPRO MMS6823 (safety alarms) and Emerson DeltaV DCS (process integration). During startup, the EPRO SDM010 ensured the EPRO MMS6823 detected a 1.2 μm axial shift in a feedwater pump (thrust bearing wear).

Maintenance intervened in 2 hours, avoiding a $200k pump seizure and 12-hour outage.

In oil & gas, a pipeline station uses three EPRO SDM010 units to route 12 EPRO PR642301R-111 signals to two EPRO MMS6210-9100-00003-11 controllers (primary/backup). The module’s 500 Vrms input-to-output isolation protected the backup during a lightning-induced primary failure. The EPRO SDM010 kept monitoring active, preventing a $500k-per-day compression station shutdown.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing EPRO SDM010, confirm the control panel meets -20 °C to +60 °C and has a TS 35/7.5/15 DIN rail. Wear ESD wristbands to protect electronics. Mount EPRO SDM010 on the rail (leave 5 mm clearance for airflow) and secure with the latch. Wire 24 VDC power to V+/- terminals (18–22 AWG) and connect sensors to IN1–IN4 (match 4–20 mA/voltage). Route outputs to controllers, labeling wires to avoid cross-connection.

Maintenance suggestions: Inspect EPRO SDM010 quarterly: Check LEDs (green = power, amber = active inputs); Clean with a dry microfiber cloth; Tighten terminal screws (loose connections cause signal dropouts). If an output fails, use a multimeter to verify input (e.g., 4–20 mA from EPRO PR9268202-100)—replace EPRO SDM010 if input is normal but output is missing. Store spares in dry -20 °C to +50 °C conditions. Calibrate bi-annually with a precision signal generator to verify ±0.1% FS accuracy—replace if drift exceeds specs.
