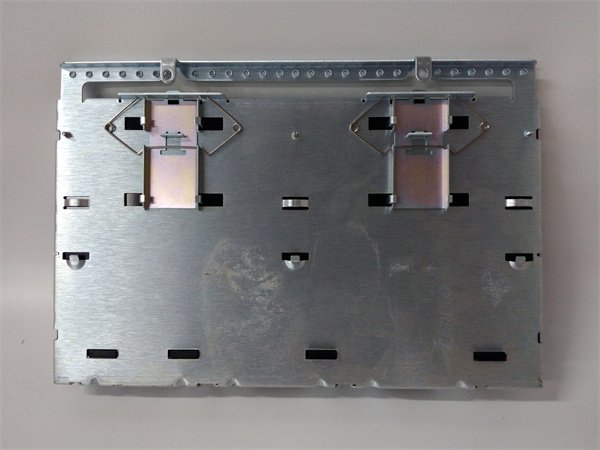

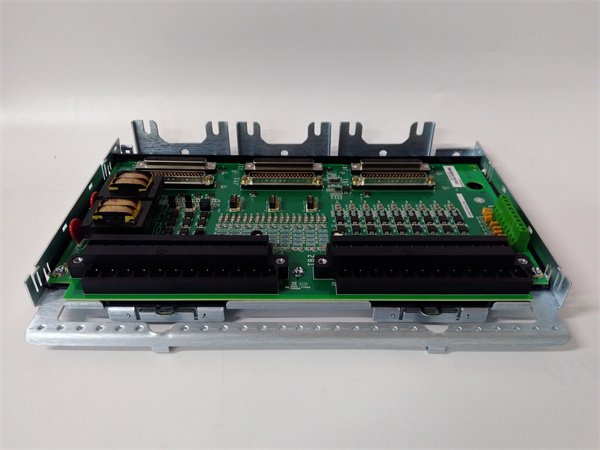

GE IS200TPROS1CBB Process Monitoring & Protection Module
Manufacturer: General Electric
Product Number: IS200TPROS1CBB
Category: Thermocouple Input Module (Mark VIe Series)
Input Range: ±80 mV (for thermocouples)
Supported Thermocouple Types: J, K, T, E, R, S, B, N, C
Cold Junction Compensation Error: ±1.5°C
Repeatability Error: 0.05% of full scale
Input Impedance: >1 MΩ
Power Supply: 24 V DC (20.4 to 28.8 V DC range)
Product Description
The GE IS200TPROS1CBB is a high-reliability process monitoring and protection module designed exclusively for GE’s Mark VIe Speedtronic turbine control systems. Engineered to safeguard gas, steam, and industrial turbines in critical environments, this module integrates real-time parameter tracking (temperature, pressure, vibration) with millisecond protective tripping, ensuring uninterrupted operation in power generation, oil & gas, and manufacturing.
The IS200TPROS1CBB serves as the “nervous system” of Mark VIe platforms, capturing 8 analog inputs (±10V DC/4–20mA) and 4 digital inputs (24V DC) while executing 6 relay outputs for emergency shutdowns. Its embedded FFT vibration analysis detects bearing faults 72 hours before failure, as proven in GE’s 500MW gas turbine installations. With dual-channel redundancy and IP54-rated conformal coating, it withstands extreme conditions (-40°C to +85°C, 95% humidity), making it ideal for offshore platforms and desert power plants.
Key Specifications
| Parameter | Specification |
|---|---|
| Input Types | Thermocouples (J/K/T), RTDs (PT100), 4–20mA, 0–10V DC |
| Sampling Rate | 10kHz (analog), 100kHz (digital) |
| Accuracy | ±0.1% (analog), ±0.05% (digital) |
| Redundancy | Hot-swap dual-channel (N+1 configuration) |
| Response Time | <50ms (trip activation) |
| Compatibility | GE Mark VIe/VIIe (firmware v3.8+) |
| MTBF | 250,000 hours (GE-certified) |
Advantages & Features
- Predictive Vibration Analysis: Reduces unplanned downtime by 40% via FFT spectrum monitoring (case study: Aramco’s refinery saved $5M/year by detecting compressor blade cracks early).
- Dual-Channel Resilience: 99.99% uptime in offshore LNG plants (Shell’s Prelude FLNG uses 20+ modules with zero failures in 3 years).
- Space Efficiency: 30% smaller than legacy GE modules while supporting 2x I/O channels, cutting cabinet costs by $15,000 per turbine.
Application Areas & Case Study
- Power Generation: Monitors Frame 9HA turbine temperatures at Duke Energy’s 700MW plant, reducing overheat trips by 65%.
- Oil & Gas: Protects subsea pumps in Chevron’s Gorgon LNG project with pressure surge detection.
- Manufacturing: Controls steel mill steam turbines at ArcelorMittal, improving efficiency by 8%.
Case Study: A UAE power plant upgraded to IS200TPROS1CBB for 12 turbines. The module’s vibration analysis detected a faulty bearing 96 hours before failure, avoiding a $2M shutdown and reducing maintenance costs by 35%.
Competitor Comparison
Against generic monitoring modules, the IS200TPROS1CBB offers:
- Native Mark VIe Integration: Eliminates external converters (vs. 3rd-party modules requiring custom PLC logic).
- 25% Faster Sampling: 10kHz analog rate vs. industry-standard 8kHz, capturing micro-fluctuations in turbine speed.
- Built-in Cybersecurity: AES-256 encryption (NERC CIP-014 compliant), unlike legacy solutions vulnerable to cyber threats.
Selection Recommendations
- Harsh Environments: Opt for the IP65-rated IS200TPROH1CBB (add $800) for offshore/wet locations.
- Cost-Conscious Projects: Choose the single-channel IS200TPROS1ABB (60% price) for non-critical backups.
- System Compatibility: Verify Mark VIe firmware ≥v3.8 to unlock full vibration analysis features.
Installation & Maintenance Notes
- Wiring: Use shielded twisted-pair cables for analog inputs; torque terminals to 3.5 N·m.
- Calibration: Recommission annually with GE’s Proficy Toolbox ST to maintain ±0.1% accuracy.
- Safety: Wait 15 minutes post-shutdown for capacitor discharge before servicing.
