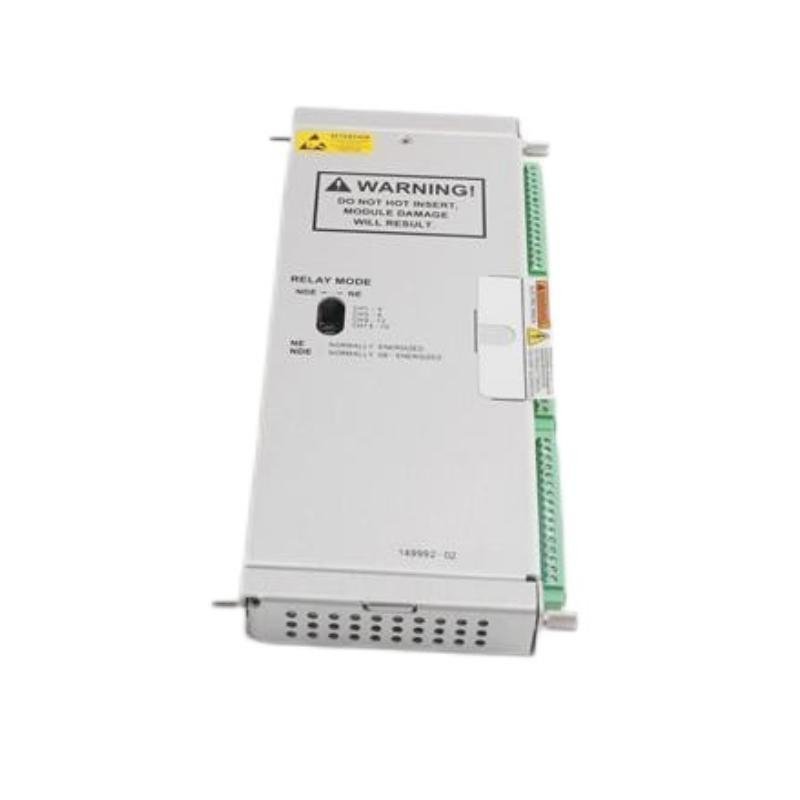

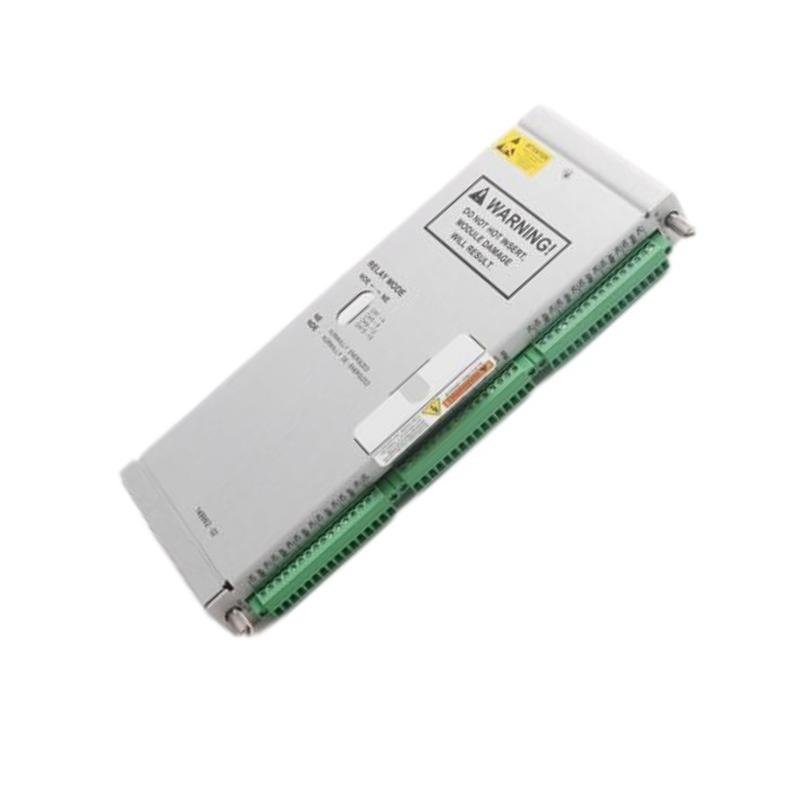

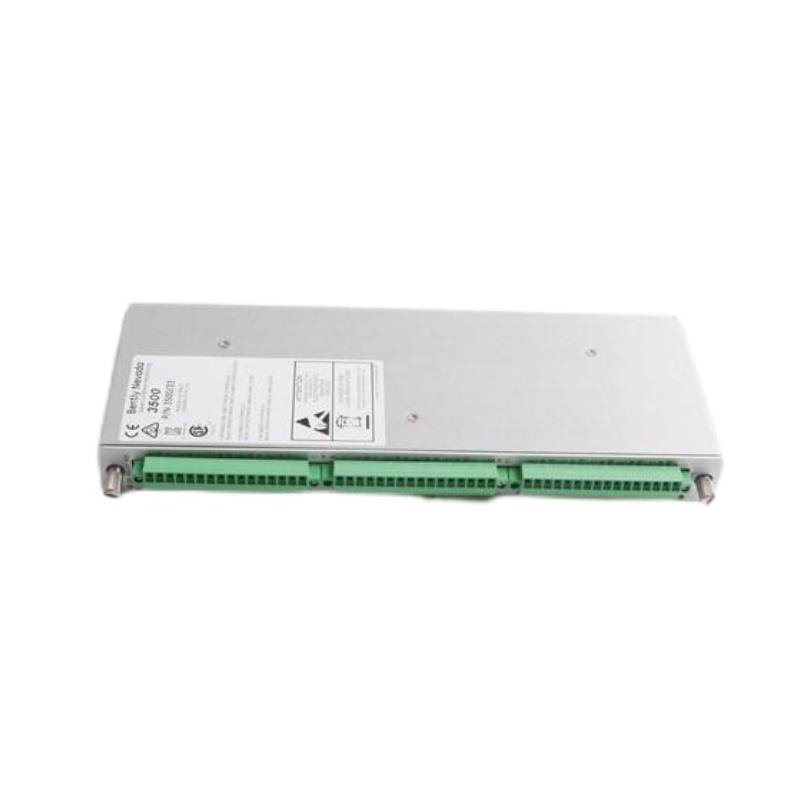

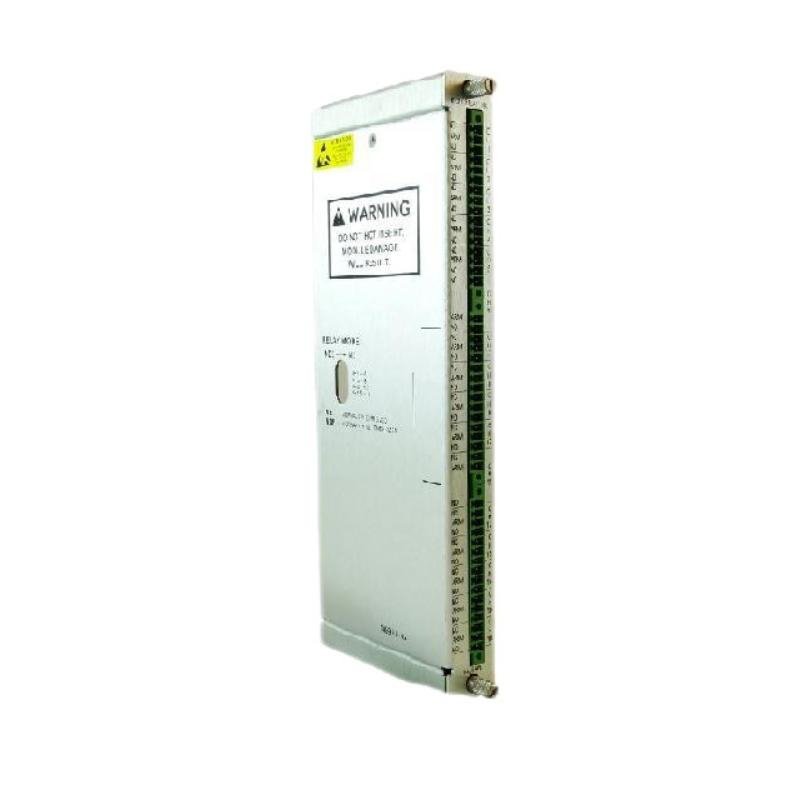

Bently Nevada 350033-02-00 149992-02 16-Channel Relay Module
Manufacturer: Bently Nevada
Product Number: 350033-02-00 (149992-02)
Category: 16-Channel Relay Module (3500 Series)
Number of Channels: 16 independent relay outputs
Application: Machinery protection and monitoring systems requiring versatile relay outputs for alarm and control
Operating Temperature: -40°C to +70°C
Product Description
The Bently Nevada 350033-02-00 149992-02 16-Channel Relay Module is an essential component of the Bently Nevada 3500 Series machinery protection and monitoring systems. Designed to offer 16 independent relay outputs, this module provides versatile control for field devices, alarm systems, and protective mechanisms. Its key function is to activate or deactivate control systems based on alarm conditions, ensuring real-time protection for critical machinery.
This module is engineered for use in demanding industrial environments such as power plants, oil and gas facilities, and manufacturing plants. The module features robust construction and advanced features for reliable operation under harsh conditions. It integrates seamlessly into the 3500 system, delivering high-quality protection and performance in machinery monitoring.
Key Features
-
16 Independent Relay Channels: Offers up to 16 relay outputs for flexible control of various field devices.
-
Alarm Control Logic: Supports advanced logic for alarm handling, ensuring proper system response to fault conditions.
-
Durable Design: Built to withstand challenging industrial environments, including temperature fluctuations, vibration, and contamination.
-
Flexible Relay Configuration: Provides NO (Normally Open) and NC (Normally Closed) relay outputs for diverse control applications.
-
LED Status Indicators: Includes clear LED indicators for each relay channel, providing real-time feedback on system status and fault conditions.
-
Seamless Integration: Compatible with Bently Nevada 3500 Series racks and monitoring systems, enabling quick system deployment and configuration.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
General Information
| Item | Specification |
|---|---|
| Model | 350033-02-00 149992-02 |
| Manufacturer | Bently Nevada (a Baker Hughes business) |
| Product Type | 16-Channel Relay Module |
| Mounting | Rack mountable (fits 3500 series racks) |
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Relay Specifications
| Item | Specification |
|---|---|
| Relay Type | Single-pole, double-throw (SPDT) |
| Contact Ratings |
Min. Switched Current: 100 mA at 5 Vdc
Max. Switched Current: 5 A Max. Switched Power: 70 W at 24 Vdc |
| Relay Life | 10,000 cycles |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% (via system backplane) |
| Power Consumption | Approx. 5.8 W |
| Operating Current | ≤ 0.24 A |
| Isolation | Channel-to-channel isolation |
Environmental Specifications
| Item | Specification |
|---|---|
| Sealing | Epoxy-sealed relays |
| Arc Suppression | 250 Vrms |
Approvals
| Item | Specification |
|---|---|
| CSA/NRTL-C | Class 1, Division 2 |
| ATEX/IECEx | Class 1, Zone 2 |
Industry Applications
The Bently Nevada 350033-02-00 149992-02 16-Channel Relay Module is deployed across various industries that demand high-performance machinery protection systems:
-
Power Generation: Used for controlling turbines, generators, and other critical power plant machinery, ensuring operational safety and efficiency.
-
Oil and Gas: Protects vital equipment in both upstream and downstream operations, minimizing the risk of equipment failure.
-
Manufacturing: Provides real-time protection for manufacturing machinery, enhancing system uptime and reducing operational disruptions.
-
Chemical Processing: Safeguards reactors, pumps, and compressors by managing alarms and control responses to hazardous conditions.
-
Mining: Monitors and controls heavy machinery, improving safety in challenging and high-risk mining environments.
This module is a vital component for ensuring machinery protection and operational safety, offering reliable and effective relay control for mission-critical systems.
