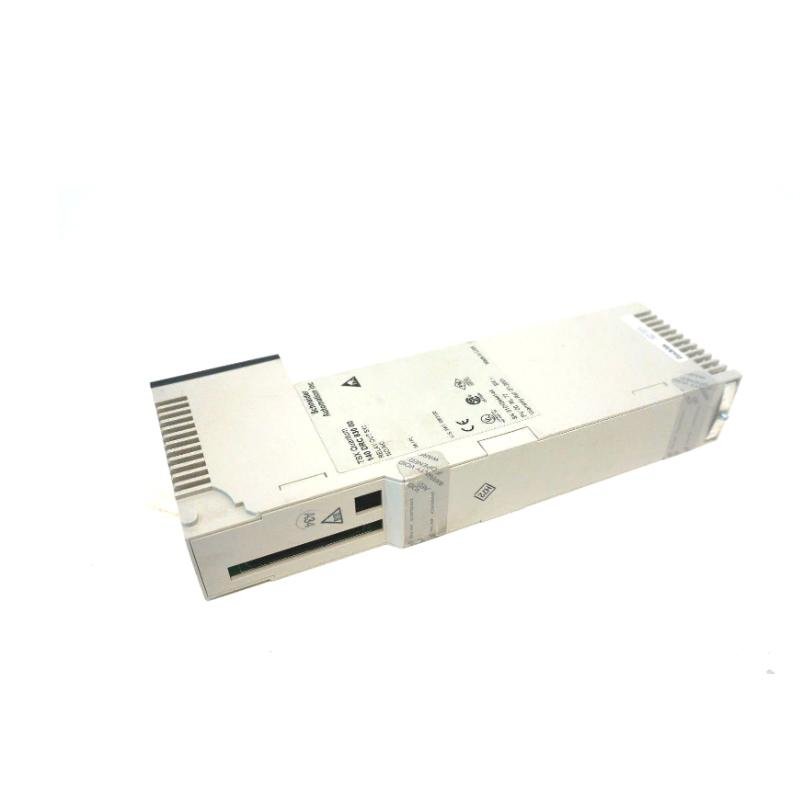

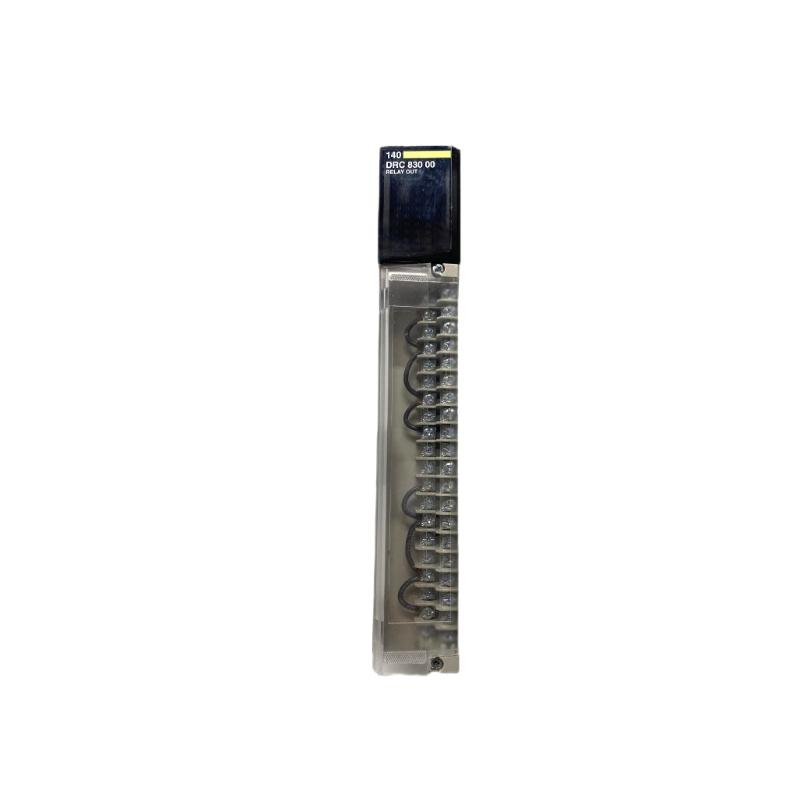

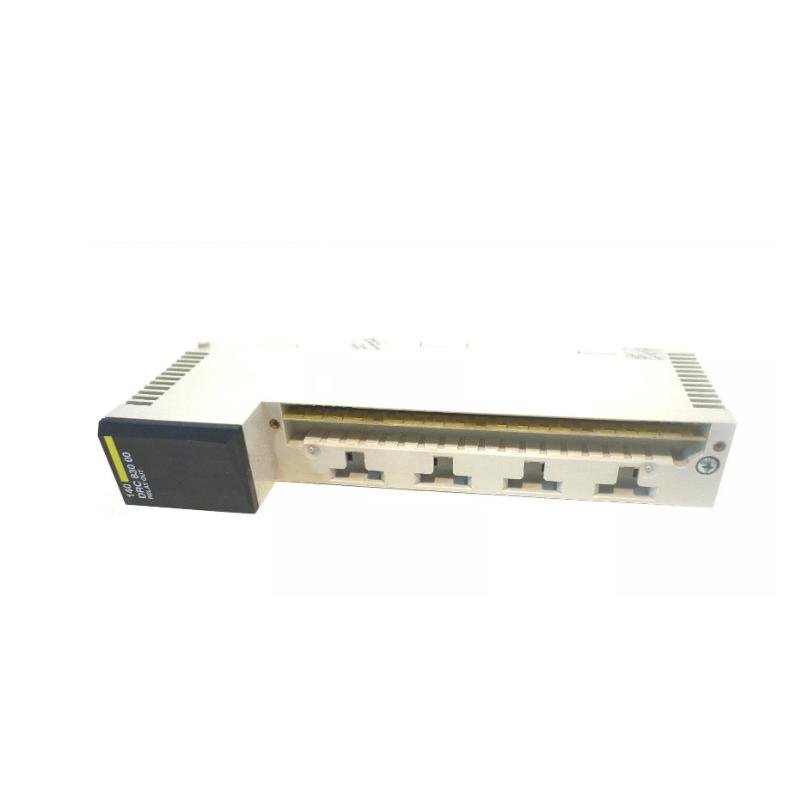

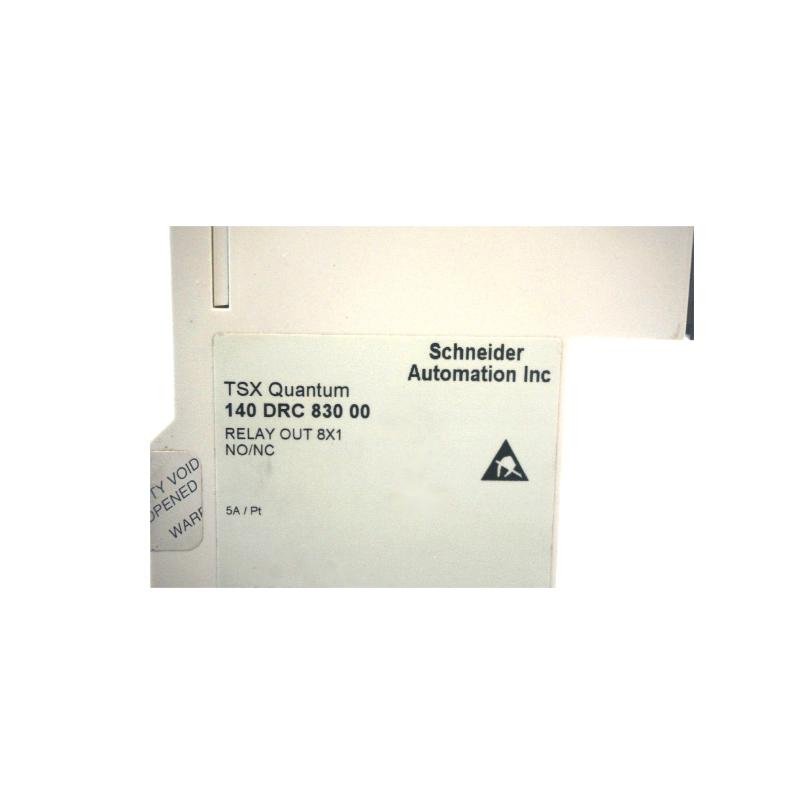

Schneider 140DRC83000 Relay Discrete Output Module
Manufacturer: Schneider Electric
Product Number: 140DRC83000
Category: Relay Discrete Output Module (Modicon Quantum)
Number of Outputs: 16
Output Type: Isolated relay outputs
Contact Rating: 2A @ 230VAC
System Compatibility: Modicon Quantum series
Product Description
The Schneider Electric 140DRC83000 is a relay-type discrete output module for the Modicon Quantum series. It features 16 individually isolated relay outputs that provide flexible switching of AC or DC loads. Designed to control a wide range of field devices such as solenoids, lamps, contactors, and small motors, this module offers high electrical isolation, dependable mechanical relay switching, and robust protection, making it ideal for heavy-duty control applications across industrial automation systems.
Key Features
-
16 Relay Outputs–Provides reliable switching for both AC and DC loads
-
Individually Isolated Channels–Enhances system safety and flexibility in load control
-
High Load Capacity–Supports output ratings up to 2 A per channel
-
Mechanical Relay Design–Offers dependable operation with longer electrical life
-
Status LEDs–Per-channel indication for real-time output monitoring
-
Modicon Quantum Compatible–Fully integrates with Quantum racks and I/O systems
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Type | Relay (mechanical contact) |
| Number of Outputs | 16 |
| Load Voltage Range | 5–30 VDC or 19–250 VAC |
| Output Current Rating | 2 A max per channel |
| Isolation | 1500 V between outputs and logic circuits |
| Switching Frequency | 1 Hz typical for inductive loads |
| Contact Type | SPST-NO (Form A) |
| Relay Life Expectancy | 10 million operations (no load), ~100k (full load) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Electric Modicon Quantum Series |
| Mounting | Rack-mounted in Quantum I/O chassis |
| Configuration | Auto-detected via Unity Pro or EcoStruxure |
Industry Applications
-
Water Treatment Facilities–Controls pumps, valves, and actuators with AC or DC relays
-
Manufacturing Plants–Switches contactors, beacons, and other discrete devices
-
Building Automation–Enables lighting and fan control systems
-
Energy & Power Systems–Operates breakers and isolation relays
-
Process Industries–Interfaces with on/off equipment in chemical or food production lines
The Schneider Electric 140DRC83000 Relay Discrete Output Module provides flexible, isolated control of AC and DC devices with mechanical reliability. As part of the Modicon Quantum family, it is a versatile solution for demanding discrete output applications in automation and process control environments.
