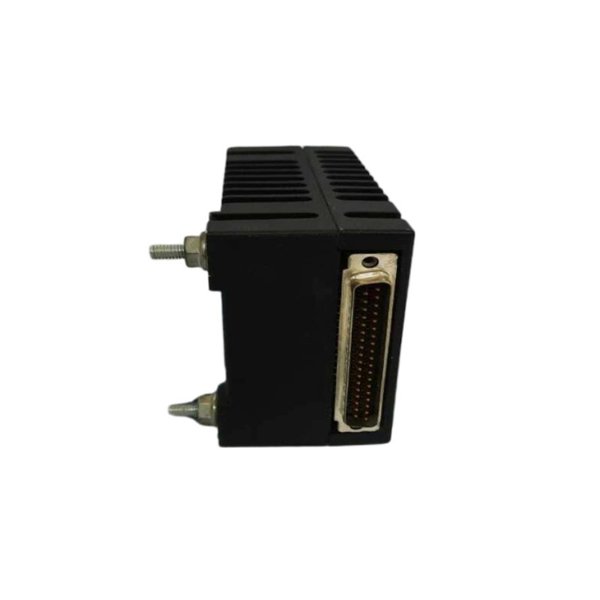

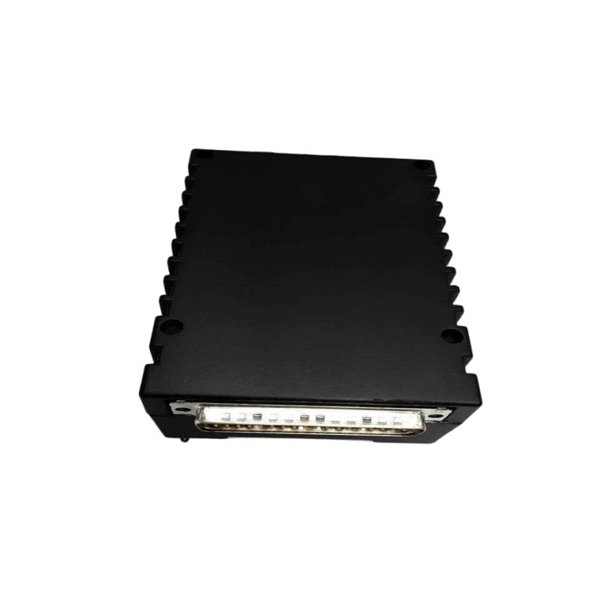

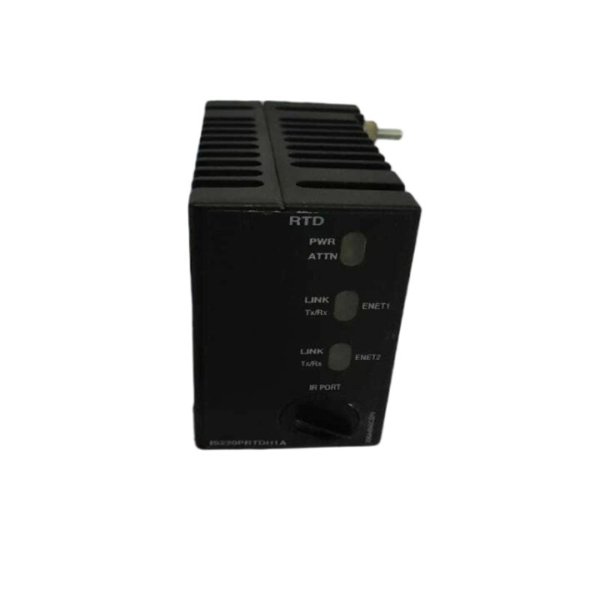

The GE IS220PRTDH1AD Resistance Temperature Device (RTD) Input Module is a high-performance component designed for use in industrial systems requiring precise temperature measurements. This module is an integral part of GE’s Mark VIe control system, providing reliable and accurate temperature monitoring for various applications such as power generation, manufacturing processes, and other industrial operations.

The IS220PRTDH1AD module allows for seamless integration of RTD sensors into control systems, enabling operators to track temperature variations in real-time. With a robust design, it is capable of handling high-accuracy measurements for critical temperature-sensitive applications. This module helps ensure the stability and efficiency of the entire system by ensuring proper thermal management and preventing overheating or temperature-related failures.

Thanks to its compact design and high reliability, the IS220PRTDH1AD module can be used in a variety of industrial environments. It provides easy installation, quick data integration, and is adaptable to various temperature input standards, making it a versatile addition to any temperature monitoring system.

Product Specifications

Applications

The GE IS220PRTDH1AD RTD Input Module is ideal for applications where precise temperature control and monitoring are crucial. Common use cases include:

• Industrial Temperature Monitoring: The module is widely used in power plants, refineries, chemical plants, and other industrial facilities to monitor critical temperature parameters of machinery and process equipment.

• Energy Generation Systems: In power generation, the module tracks the temperature of turbines, generators, and other key components to ensure that operations remain within safe thermal limits.

• Control Systems Integration: Integrated into GE Mark VIe and other control systems, it provides seamless communication with temperature sensors, offering reliable data for system control and optimization.

• HVAC and Cooling Systems: It is used to monitor the temperature of air and liquid systems in HVAC, ensuring the efficient operation of environmental systems.

• Manufacturing and Process Control: The module supports precision temperature monitoring in manufacturing processes, helping to control processes that are sensitive to temperature fluctuations.

• Laboratory and Testing Equipment: Ideal for monitoring temperatures in research labs or test equipment, the IS220PRTDH1AD ensures high-accuracy readings in critical testing environments.

Product Advantages

• High Accuracy and Reliability: The IS220PRTDH1AD module supports multiple RTD configurations (2-wire, 3-wire, and 4-wire), ensuring high accuracy for various temperature sensing applications in industrial environments.

• Wide Temperature Range: With a temperature range of -200°C to +850°C, the module can be used in diverse applications, including high and low-temperature environments.

• Versatile Input Options: The module accepts 2-wire, 3-wire, and 4-wire RTD sensors, making it flexible enough to meet various system requirements.

• Ethernet and Serial Communication: The module supports both Ethernet and serial communication interfaces, ensuring fast and reliable data transfer between the temperature sensors and the control system.

• Compact and Space-Efficient: With compact dimensions of 128 x 82 x 60 mm and weighing only 0.38 kg, the module is easy to integrate into existing systems without requiring additional space.

• DIN Rail Mounting: The DIN rail mounting feature simplifies installation and ensures secure placement within control panels, enhancing the system’s organization and accessibility.

• IP20 Protection Class: The module has an IP20 protection rating, making it suitable for use in environments where dust and moisture protection are not a primary concern but where reliable performance is still essential.

• Real-Time Monitoring: It provides continuous real-time monitoring of temperature data, enabling operators to act quickly if any system parameters go beyond safe operating ranges.

FAQ

1. What is the function of the GE IS220PRTDH1AD module?

The GE IS220PRTDH1AD module is designed to provide accurate and reliable temperature measurements by interfacing with RTD (Resistance Temperature Device) sensors in various industrial applications, helping to monitor the temperature of critical equipment.

2. What types of RTD inputs does the IS220PRTDH1AD module support?

The IS220PRTDH1AD module supports 2-wire, 3-wire, and 4-wire RTD sensors, offering flexibility in sensor configurations depending on the application.

3. What is the temperature range of the GE IS220PRTDH1AD module?

The IS220PRTDH1AD module can measure temperatures ranging from -200°C to +850°C, making it suitable for both low and high-temperature monitoring in various industrial applications.

4. What communication interfaces are supported by the IS220PRTDH1AD module?

The module supports Ethernet and serial communication interfaces, allowing seamless integration with control systems and providing quick data transmission.

5. What power supply is required for the GE IS220PRTDH1AD module?

The IS220PRTDH1AD module operates with a 24V DC power supply.

6. How is the GE IS220PRTDH1AD module mounted?

The module is designed for DIN rail mounting, ensuring easy installation and secure attachment to control panels.

7. What protection class does the IS220PRTDH1AD module have?

The module has an IP20 protection class, which means it is protected against solid objects larger than 12mm but is not fully resistant to dust or water.

8. Can the IS220PRTDH1AD module be used in high-temperature applications?

Yes, the IS220PRTDH1AD module can be used in high-temperature applications, as it supports a temperature range from -200°C to +850°C, making it versatile for a wide range of environments.

9. What is the main advantage of using the IS220PRTDH1AD module in industrial systems?

The IS220PRTDH1AD module offers high accuracy, flexibility in sensor configurations, and real-time temperature monitoring, ensuring that industrial systems maintain optimal operational conditions and avoid potential damage from temperature variations.

10. How does the IS220PRTDH1AD module contribute to overall system safety?

By continuously monitoring temperature levels and providing real-time data, the IS220PRTDH1AD module helps prevent equipment overheating or thermal failure, ensuring the safety and reliability of industrial processes.
