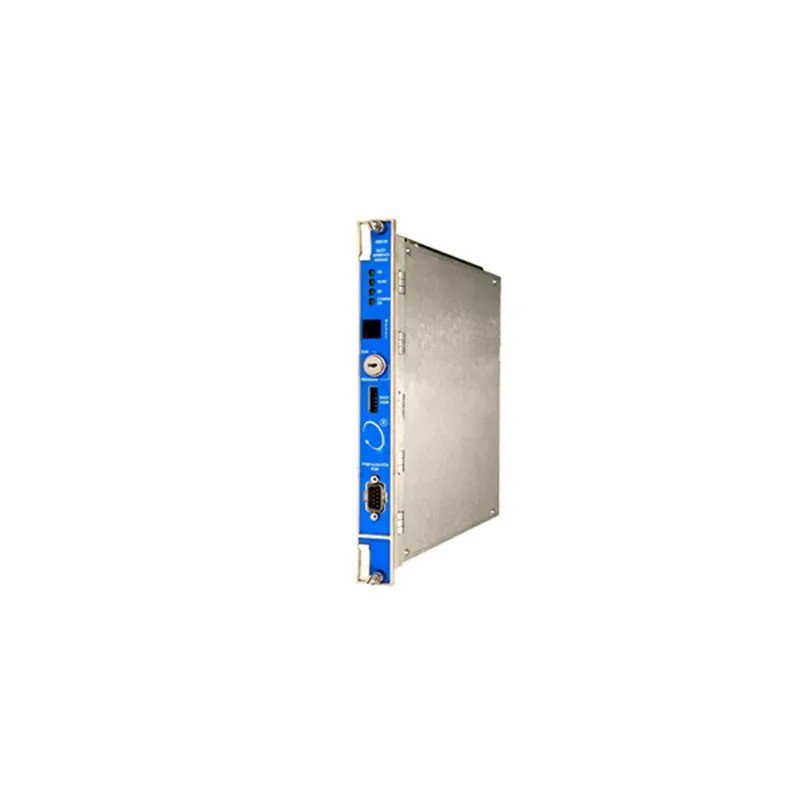

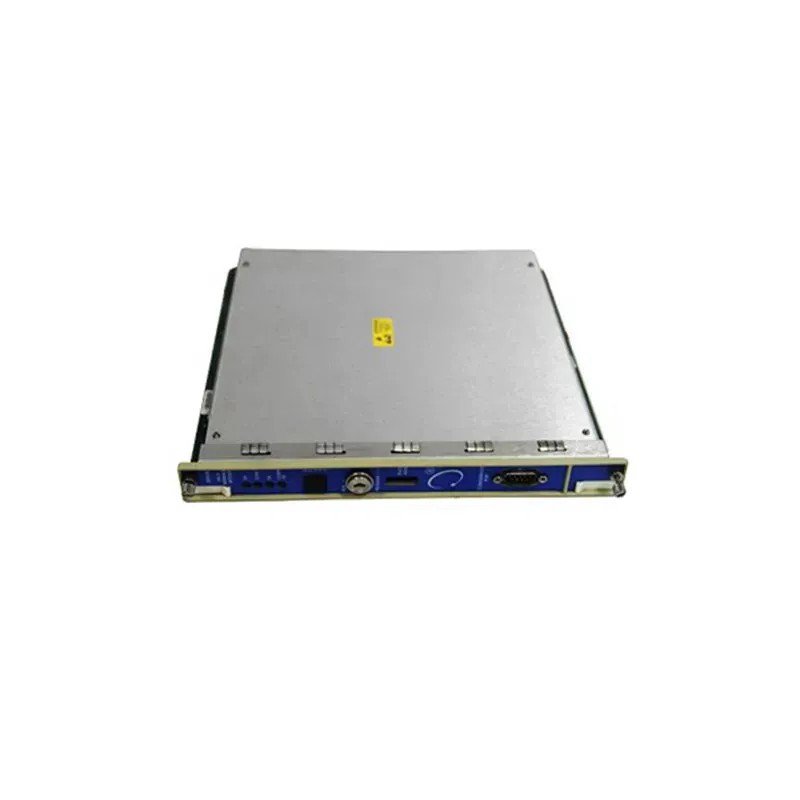

Bently Nevada 3300/55-03-01-15-15-00-00-01-00 Dual Velocity Monitor

The Bently Nevada 3300/55-03-01-15-15-00-00-01-00 is a Dual Proximity Probe Monitor within the Bently Nevada 3300 machinery protection system. Here’s a breakdown of its code:

• 3300: Identifies the Bently Nevada 3300 system it belongs to.
• 55: Indicates the measurement group, meaning it monitors physical parameters like displacement, velocity, or acceleration.
• 03: Represents the subgroup, typically “03” for dual probe monitors.
• 01: This is the function code, usually “01” for the primary monitoring role.
• 15-15: These repeated “15” could denote a specific option code, possibly related to probe type, configuration, or additional features. Without the manual or more context, it’s difficult to pinpoint the exact meaning.
• 00-00: These repeated zeros likely signify “no option” for the channel and card codes.
• 01: This final “01” could be the revision code, indicating the first revision of this specific module variation.

Function

It primarily monitors two process variables using dual probes.

Specialization:

It’s likely a customized or specialized process monitor with unique features beyond the standard Bently Nevada offerings.

Applications

It could be used in various machines to monitor vibration or position in critical components, such as:

• Turbine rotor movement
• Valve stem position
• Machine shaft displacement
• Gearbox tooth mesh
