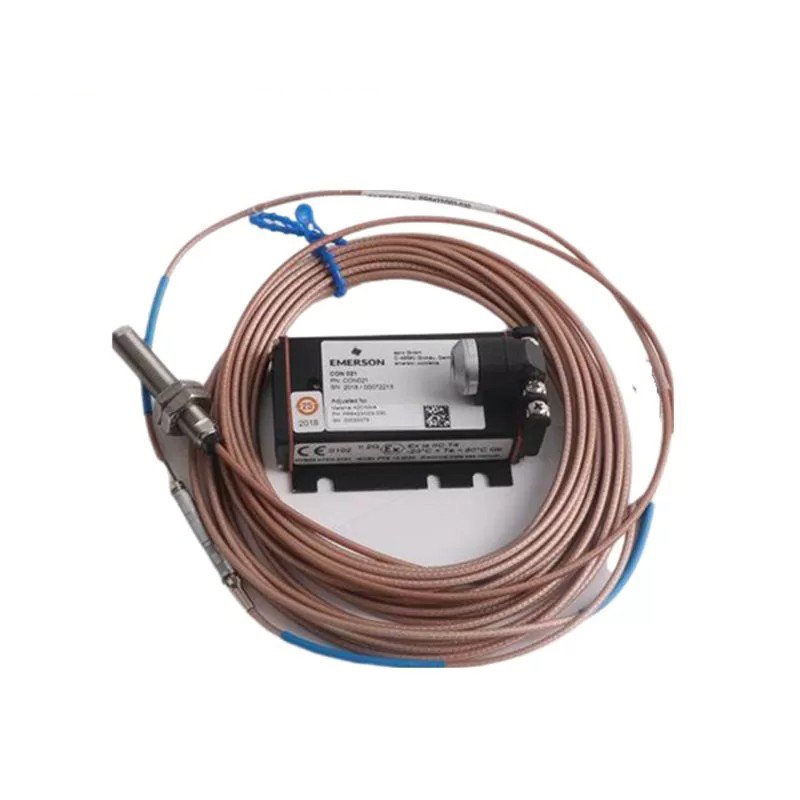

Epro PR6423/00N-030 Eddy Current Sensor
Product Number: PR6423/00N-030
Category: Eddy Current Displacement Sensor
Sensor Type: Non-contact eddy current (inductive) sensor
Probe Diameter: 8mm (typical for PR6423 series)
Measurement Principle: Oscillator amplitude attenuation proportional to distance
Calibration Material: 42CrMo4 (standard industrial steel)
Cable Length: 3.0 meters (specified by -030)
Cable Type: Standard configuration
Operating Temperature: -35°C to +380°C (sensor tip)
System Compatibility: CON0xx series converters, MMS 3000/6000 monitors
Application: Shaft vibration, radial position, axial thrust measurement, eccentricity monitoring
Mounting Thread: Metric or imperial available
Product Description
EPRO PR6423/00N-030 is a high-precision eddy current sensor designed for dynamic measurement of displacements, positions, eccentricities, and shaft speeds in both radial and axial directions. It is widely used in applications like steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.
Key Technical Specifications
- Measurement Range: Up to 2mm (80 mils) linear displacement.
- Operating Voltage: Typically operates on 24V DC.
- Input Channels: One input channel.
- Communication Protocol: Supports HART communication protocol.
- Temperature Range: Specific temperature range should be verified from the datasheet.
- Other Features: Includes built-in diagnostics, various output options, and compatibility with different mounting accessories.
Additional Information
- Dimensions and Mounting: Physical dimensions, mounting options, and compatibility with other equipment.
- Electrical Specifications: Detailed electrical characteristics, including input/output signals, noise immunity, and power consumption.
- Environmental Specifications: Operating temperature range, humidity tolerance, and other environmental factors.
- Performance Characteristics: Measurement accuracy, repeatability, and response time.
- Application Notes: Guidelines for optimal sensor usage in various applications.
Loading comments...
Epro PR6423/00N-030 Eddy Current Sensor
Product Number: PR6423/00N-030
Category: Eddy Current Displacement Sensor
Sensor Type: Non-contact eddy current (inductive) sensor
Probe Diameter: 8mm (typical for PR6423 series)
Measurement Principle: Oscillator amplitude attenuation proportional to distance
Calibration Material: 42CrMo4 (standard industrial steel)
Cable Length: 3.0 meters (specified by -030)
Cable Type: Standard configuration
Operating Temperature: -35°C to +380°C (sensor tip)
System Compatibility: CON0xx series converters, MMS 3000/6000 monitors
Application: Shaft vibration, radial position, axial thrust measurement, eccentricity monitoring
Mounting Thread: Metric or imperial available
Product Description
EPRO PR6423/00N-030 is a high-precision eddy current sensor designed for dynamic measurement of displacements, positions, eccentricities, and shaft speeds in both radial and axial directions. It is widely used in applications like steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans.
Key Technical Specifications
- Measurement Range: Up to 2mm (80 mils) linear displacement.
- Operating Voltage: Typically operates on 24V DC.
- Input Channels: One input channel.
- Communication Protocol: Supports HART communication protocol.
- Temperature Range: Specific temperature range should be verified from the datasheet.
- Other Features: Includes built-in diagnostics, various output options, and compatibility with different mounting accessories.
Additional Information
- Dimensions and Mounting: Physical dimensions, mounting options, and compatibility with other equipment.
- Electrical Specifications: Detailed electrical characteristics, including input/output signals, noise immunity, and power consumption.
- Environmental Specifications: Operating temperature range, humidity tolerance, and other environmental factors.
- Performance Characteristics: Measurement accuracy, repeatability, and response time.
- Application Notes: Guidelines for optimal sensor usage in various applications.
