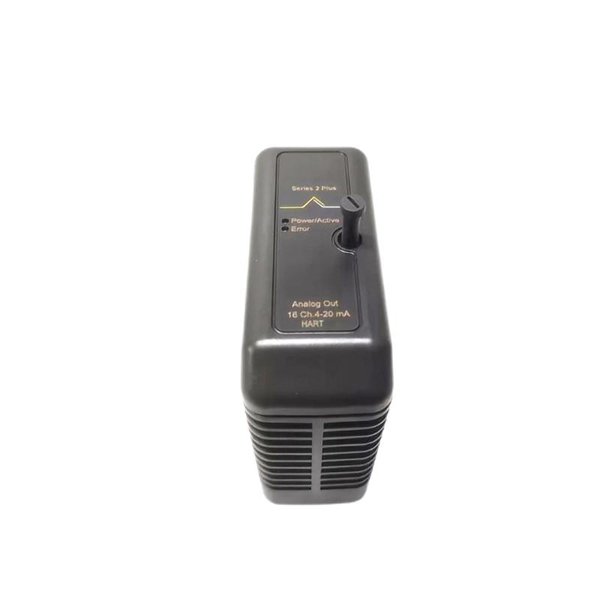

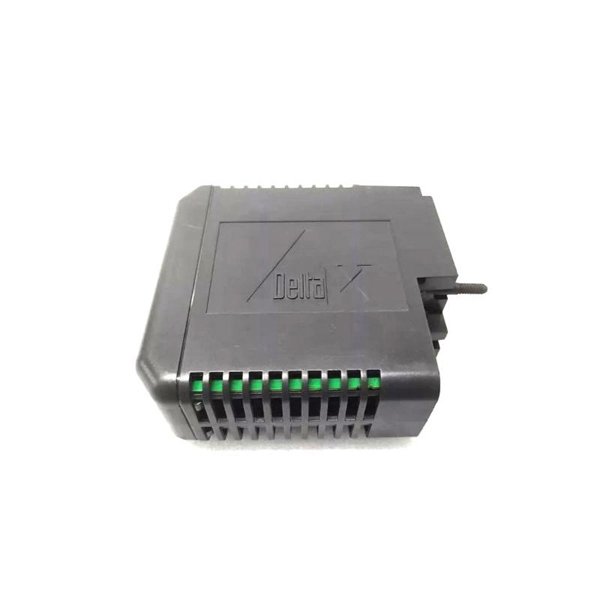

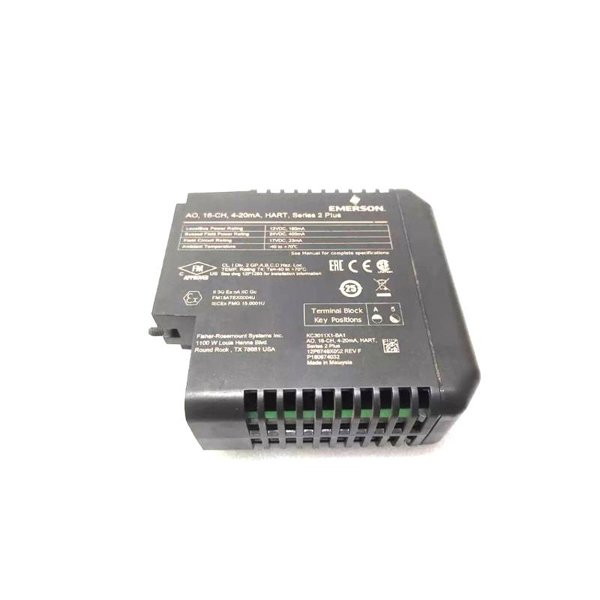

The Emerson KC3011X1-BA1 Analog Output Module is a reliable, high-precision analog signal transmission device used to convert digital control signals into analog outputs for field instrumentation and control elements. Designed to interface seamlessly with Emerson’s Ovation™ and DeltaV™ platforms, this module delivers precise analog current and voltage signals to actuators, valves, variable frequency drives, and other field devices.

With its compact design and robust build, the KC3011X1-BA1 is particularly suited for critical process automation systems across industries like oil & gas, power generation, petrochemicals, and water treatment. It ensures accurate command execution from control systems with built-in diagnostics and scalable performance.

Product Specifications

Product Applications

• Power Generation Plants

  Provides analog control to turbines, dampers, and feedwater control systems for precise load adjustments.

• Oil & Gas Operations

  Used in upstream and downstream control systems to operate flow valves, pumps, and gas regulators.

• Chemical Processing

  Drives analog signal output to reactors, mixers, and dosing equipment based on process control logic.

• Water & Wastewater Treatment

  Regulates chemical dosing pumps, blowers, and flow control devices in treatment systems.

• Pharmaceutical Manufacturing

  Delivers precision control for temperature, pressure, and batch processing via analog actuators.

• Metals & Mining

  Transmits output signals to hydraulic and pneumatic actuators used in mineral processing.

Product Advantages

• High Precision Outputs

  Equipped with 16-bit resolution digital-to-analog converters for exceptional control fidelity.

• Flexible Signal Configuration

  Each channel can be independently configured for current or voltage output, meeting diverse application needs.

• Isolated Channels

  Fully isolated outputs prevent electrical interference and ensure safe operation in high-noise environments.

• Built-in Diagnostics

  Real-time monitoring of signal quality, open-circuit detection, and over-range indication for proactive maintenance.

• Compact Design

  Small footprint saves control cabinet space while providing high channel density.

• Seamless System Integration

  Integrates easily with Ovation and DeltaV systems, reducing engineering and commissioning time.

• Robust Construction

  Withstands harsh environmental conditions, offering stable performance in temperature and humidity extremes.

Frequently Asked Questions (FAQ)

1. What types of output signals does the KC3011X1-BA1 support?

   It supports both voltage (0–10V, ±10V) and current (0–20 mA, 4–20 mA) outputs.

2. Can each channel be configured independently?

   Yes, each channel can be independently set for voltage or current output using software tools.

3. Is the module hot-swappable?

   Hot-swapping is supported within certain Emerson backplane configurations.

4. What is the resolution of the output signal?

   The module features a 16-bit resolution DAC for smooth, high-fidelity control signals.

5. Does the module provide any diagnostics?

   Yes, it provides diagnostics including open circuit detection, over-range, and general fault status.

6. Is this module compatible with both Ovation and DeltaV?

   Yes, it’s designed to operate within Emerson’s Ovation™ and DeltaV™ automation platforms.

7. What is the output load range for current signals?

   The current output supports a load of 0 to 600 ohms.

8. Can I use this module in high-temperature environments?

   Yes, it operates in environments ranging from -20°C to +60°C.

9. Is channel-to-channel isolation available?

   Yes, all channels are isolated from each other and from the control logic.

10. How do I calibrate the module?

    The module is factory-calibrated but supports software recalibration through the configuration interface.
