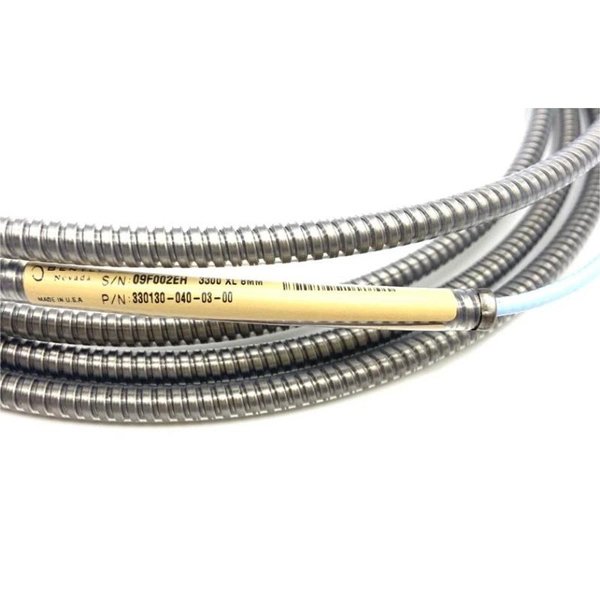

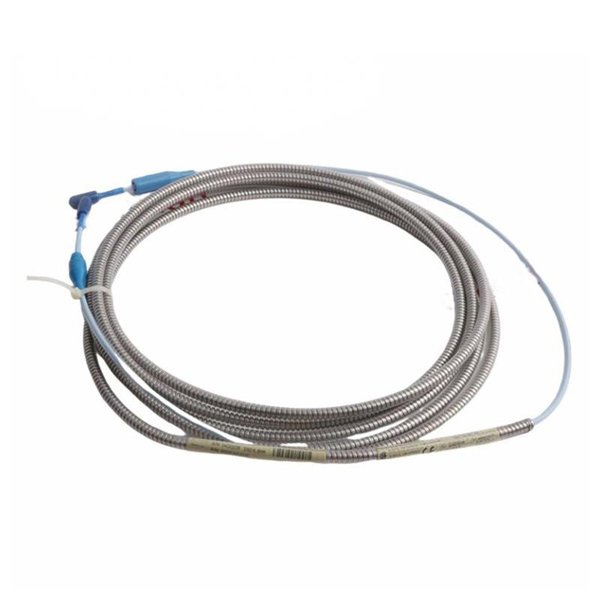

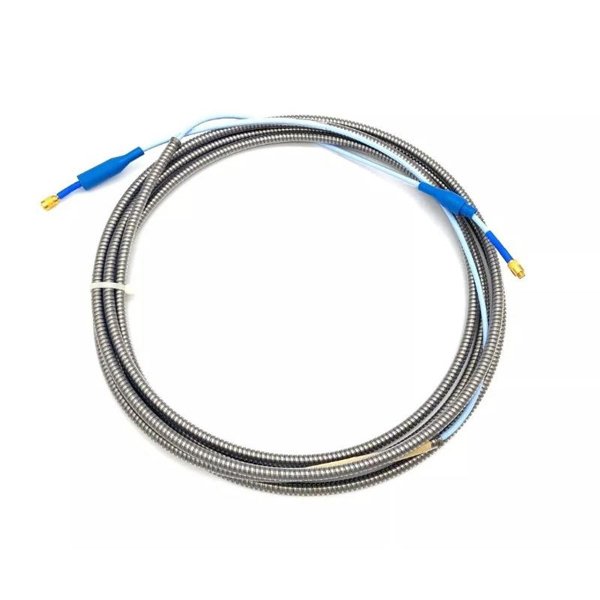

The Bently Nevada 330130-040-03-00 is a standard proximity probe extension cable, part of the 3300 XL series produced by Baker Hughes’ Bently Nevada division. This cable is used in conjunction with proximity transducers and drivers to form a complete proximity measurement system. It is primarily employed in critical machinery condition monitoring systems, offering reliable signal transmission from the probe to the monitoring system in high-vibration and high-temperature environments. With a length of 4.0 meters (13.1 feet), this extension cable is engineered to maintain signal integrity over distance, supporting accurate displacement and vibration measurements.

Product Advantages

• Rugged Design: Built to withstand harsh industrial environments including heat, oil, and mechanical stress.

• Reliable Signal Integrity: Ensures accurate data transmission over long distances with minimal signal loss.

• Universal Compatibility: Compatible with 3300 XL series proximity probes and drivers, forming part of a fully integrated monitoring system.

• High Temperature Resistance: Rated for continuous exposure in high-temperature applications without signal degradation.

• Shielded Construction: Reduces electromagnetic interference, ensuring clean signal output.

• Proven Industry Use: Used globally in refineries, power plants, and rotating equipment installations.

Technical Specifications

Product Applications

The 330130-040-03-00 is typically deployed in the following applications:

• Steam and Gas Turbines

• Centrifugal Compressors

• Hydraulic Pumps and Motors

• Industrial Fans and Blowers

• Rotating Machinery in Power Generation

• Refinery Equipment

• Petrochemical Plants

• Nuclear and Thermal Power Stations

This extension cable is an essential component in proximity transducer systems, enabling remote monitoring of shaft position, vibration, and displacement in dynamic industrial environments.

Installation Notes

• Ensure that the cable connectors are fully engaged with the probe and driver ends.

• Use appropriate strain relief to prevent excessive tension on the cable.

• Avoid routing the cable near high-voltage lines or sources of electrical interference.

• Observe minimum bend radius requirements to avoid internal wire damage.

• Installation in high-temperature zones should not exceed specified thermal limits.

FAQ

Q1: What is the function of the 330130-040-03-00 cable?

A1: It serves as the extension between the proximity probe and driver, transmitting the signal accurately across a distance.

Q2: Is this cable compatible with all Bently Nevada probes?

A2: It is designed specifically for use with the 3300 XL series and is not guaranteed to be compatible with older or different series.

Q3: What is the maximum operating temperature of this cable?

A3: The cable can operate continuously in environments up to 177°C (350°F).

Q4: Can this cable be used outdoors?

A4: While it has good chemical and thermal resistance, additional environmental protection is recommended for outdoor exposure.

Q5: How should the cable be routed to avoid interference?

A5: Route it away from high-voltage lines, use shielding, and follow proper cable management to prevent signal degradation.

Q6: Can I cut and re-terminate the cable to a different length?

A6: No. These cables are factory terminated and cutting may compromise signal integrity and void compliance.

Q7: What’s the difference between -01-00 and -03-00 suffixes?

A7: The suffix typically denotes connector type or configuration. -03-00 includes specific end connectors suited for direct system compatibility.

Q8: Is the cable resistant to oil and chemicals?

A8: Yes, the PFA jacket offers strong resistance to oils, solvents, and industrial chemicals.

Q9: Does the cable have shielding?

A9: Yes, it features shielding to protect against electromagnetic interference (EMI).

Q10: What’s the purpose of the miniature coaxial connector?

A10: It ensures tight, reliable electrical connection with minimal loss, suitable for precision signal transfer.
