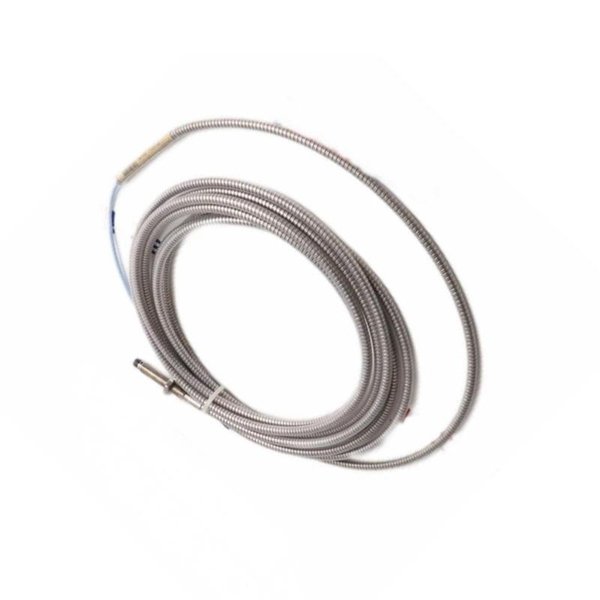

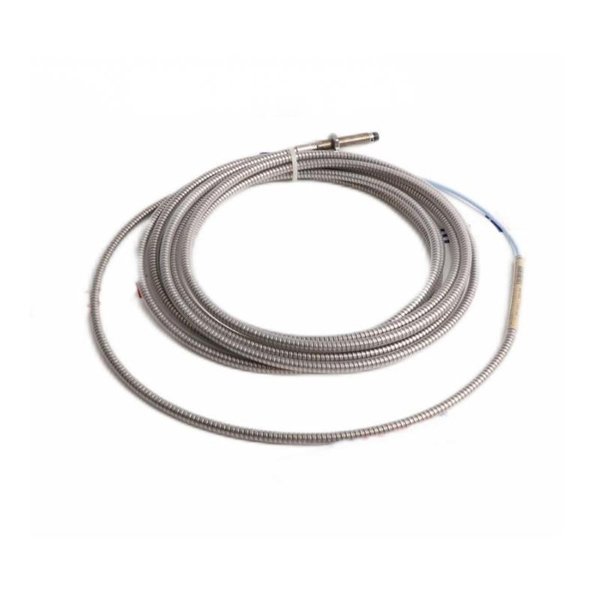

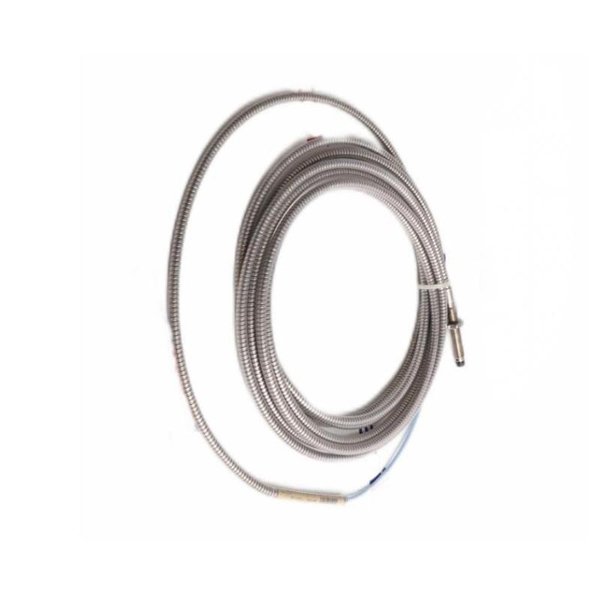

The Bently Nevada 330104-03-09-10-02-00 proximity probe is part of the 3300 XL 8 mm Proximity Transducer System, designed for high-accuracy, non-contact measurement of vibration, position, and thrust in rotating machinery. With robust construction and an 8 mm tip, it offers superior performance and reliability in demanding industrial environments.

This model includes a factory-matched probe and cable assembly, ensuring high linearity and stable output. It is designed to operate seamlessly with Bently Nevada’s 3300 XL extension cables and Proximitor sensors, ensuring API 670 compliance for machinery protection applications.

Key Features

• Non-contact eddy current sensing for shaft vibration and position monitoring

• 8 mm probe tip with excellent linear range and sensitivity

• Coaxial cable with robust environmental protection

• Factory-matched system ensures high accuracy and ease of installation

• Compatible with 3300 XL Proximitor sensors

• Corrosion-resistant stainless steel construction

• Certified to API 670 and CE compliance standards

• Stable output under extreme temperature and vibration conditions

Technical Specifications

Industry Applications

The Bently Nevada 330104-03-09-10-02-00 probe is ideal for use in:

• Turbines and compressors

• Industrial pumps and blowers

• Motors and generators

• Axial position monitoring

• Thrust bearing condition monitoring

• Gearbox and shaft condition diagnostics

• Predictive maintenance in oil & gas, power, chemical, and marine industries

Product Advantages

• API 670 compliance for critical machinery protection

• Reliable linear output with factory-matched accuracy

• Rugged stainless steel body for harsh environments

• Stable performance under temperature extremes

• Ease of installation and interchangeability

• Miniature coaxial connector reduces signal noise

• No field calibration required

• Part of the industry-trusted 3300 XL series

Frequently Asked Questions (FAQ)

1. What is the sensing range of this probe?

   It offers a linear sensing range of up to 2 mm (80 mils).

2. Is the probe compliant with API 670?

   Yes, it meets API 670 standards for machinery protection.

3. What connector does this probe use?

   It uses a miniature coaxial connector for signal integrity.

4. Is the cable armored?

   No, this specific model comes with an unarmored cable.

5. What material is the probe tip made from?

   PPS (Polyphenylene sulfide), suitable for high-temperature use.

6. Does it require field calibration?

   No, the probe and cable are factory-matched, so no field calibration is needed.

7. What temperature can it withstand?

   It operates from -35°C to +177°C (-31°F to +351°F).

8. What type of material is it calibrated for?

   AISI 4140 steel, which is standard for Bently Nevada probes.

9. Can it be used in hazardous areas?

   Yes, when installed with the proper intrinsic safety systems.

10. Is it compatible with the 3300 XL Proximitor sensor?

    Yes, it is fully compatible with 3300 XL extension cables and Proximitor sensors.
