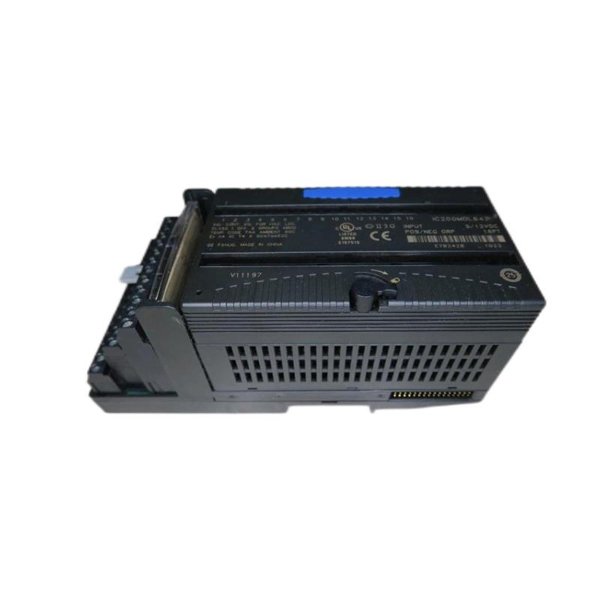

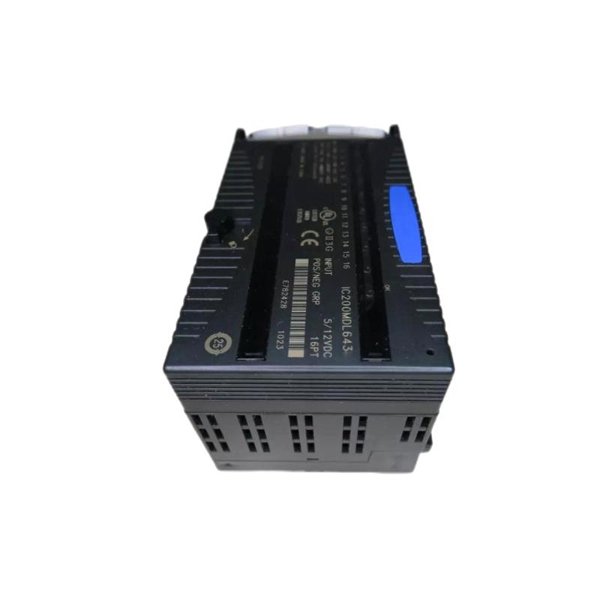

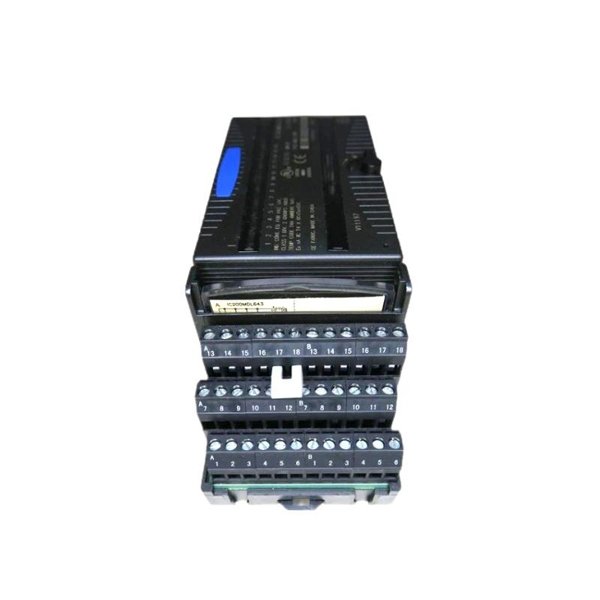

The GE IC200MDL643A VersaMax Discrete Input Module is a high-performance, industrial-grade component designed to provide reliable digital input functionality for control systems. Part of GE’s VersaMax PLC (Programmable Logic Controller) series, the IC200MDL643A module is designed to integrate seamlessly with various automation systems. Its primary function is to receive discrete digital signals from field devices, such as switches, sensors, or relays, and transmit them to the PLC for processing.

The IC200MDL643A is a highly versatile module, featuring 32 discrete inputs, which allow for robust and efficient control in industrial environments. This module supports high-speed data transfer and is built to handle harsh industrial conditions, making it an ideal choice for a wide range of automation applications. Its compact design and easy installation process provide added convenience, reducing both downtime and installation costs.

Product Parameters

Applications

The GE IC200MDL643A VersaMax Discrete Input Module is primarily used in industrial control systems for applications that require the monitoring of discrete inputs from field devices. Some common applications include:

• Manufacturing Automation: The module is used to interface with limit switches, emergency stop buttons, or other discrete devices in automated manufacturing environments.

• Process Control: It is used to collect digital signals from sensors or switches in a process control system, ensuring accurate control over industrial processes.

• Machine Safety Systems: The module helps ensure that safety inputs are monitored, such as those from emergency stop buttons, interlocks, and other safety devices.

• Building Automation: In building management systems, this module is used for monitoring inputs from security systems, lighting controls, and HVAC systems.

• Energy Management Systems: It is used for collecting input signals from energy meters or other monitoring devices to ensure efficient energy consumption and control.

• Material Handling Systems: This module is used to interface with sensors that detect the presence or absence of materials on conveyors or other automated material handling equipment.

Advantages

• High Reliability: The IC200MDL643A module is built to handle harsh industrial environments, ensuring long-term reliability and minimal downtime.

• Compact Design: With its small size, the module can be easily mounted on a DIN rail, saving valuable space in control panels and reducing installation time.

• High-Speed Input Processing: The module supports high-speed input processing, ensuring quick response times for automation and control systems.

• Wide Input Voltage Range: The module supports a broad input voltage range of 10 to 30 VDC, making it compatible with a wide range of field devices.

• Easy Integration: It integrates seamlessly with the GE VersaMax PLC systems, ensuring compatibility and smooth operation with other GE automation products.

• Versatile Applications: Whether used in industrial, process, or safety systems, the IC200MDL643A module is highly adaptable to various automation needs.

• Low Power Consumption: The module has a low power consumption of only 0.3 W per channel, making it energy-efficient and suitable for power-sensitive applications.

Frequently Asked Questions (FAQ)

1. What is the primary function of the GE IC200MDL643A module?

   • The IC200MDL643A module is used to receive digital input signals from field devices and transmit them to a PLC for processing in industrial automation systems.

2. How many inputs does the IC200MDL643A module support?

   • The module supports 32 discrete input channels.

3. What is the input voltage range for this module?

   • The input voltage range for the IC200MDL643A is between 10 to 30 VDC.

4. Can the IC200MDL643A be used with other brands of PLCs?

   • No, this module is designed to work specifically with the GE VersaMax PLC system.

5. What type of inputs does the IC200MDL643A support?

   • The module supports sinking discrete inputs.

6. What is the power consumption of the IC200MDL643A?

   • The power consumption is 0.3 W per channel (maximum).

7. What is the operating temperature range for this module?

   • The module can operate in temperatures ranging from 0°C to 60°C (32°F to 140°F).

8. Can this module be mounted in a standard control panel?

   • Yes, the IC200MDL643A module is DIN rail mountable, which is a standard mounting option for control panels.

9. What is the weight of the module?

   • The IC200MDL643A weighs 1.36 kg.

10. What types of applications is the IC200MDL643A suitable for?

    • This module is suitable for a wide range of applications, including manufacturing automation, process control, machine safety systems, and energy management.
