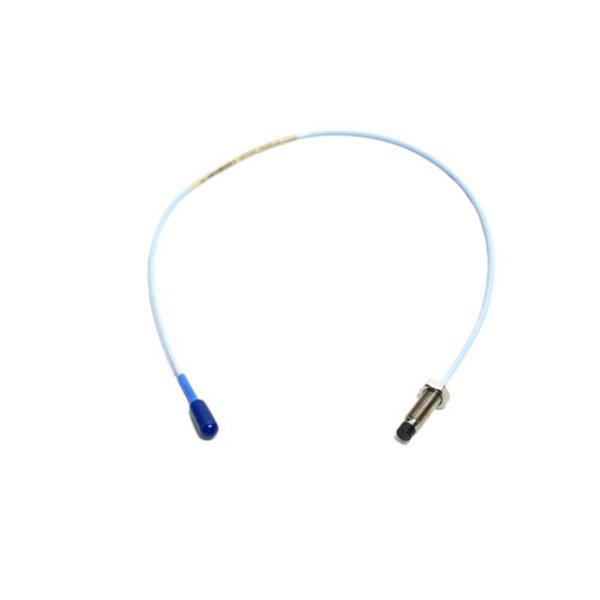

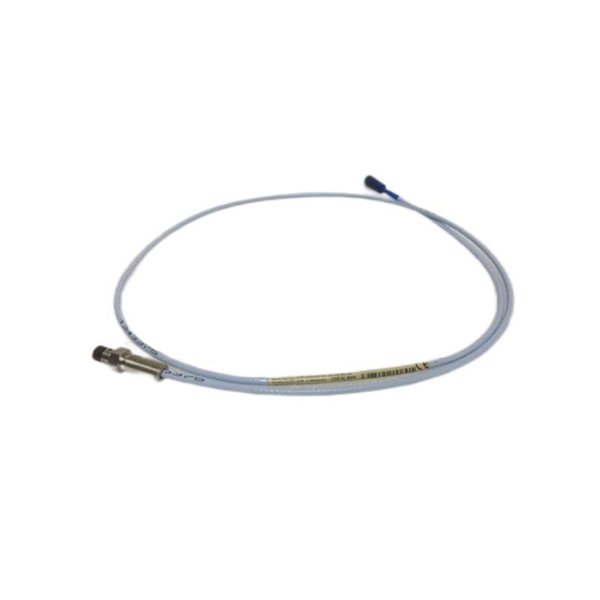

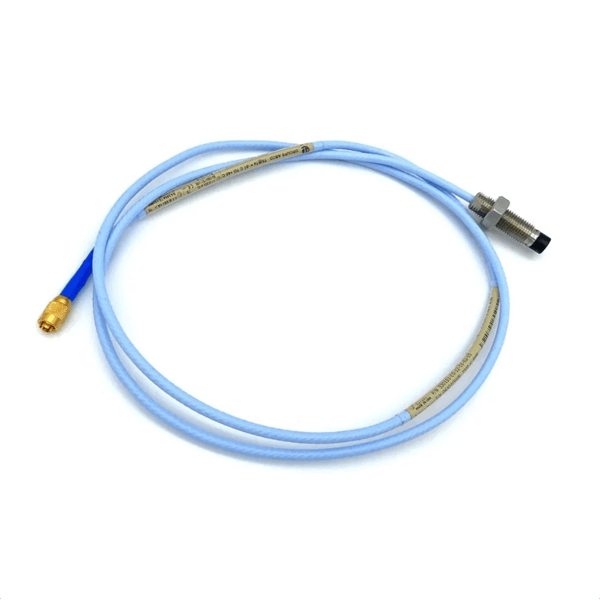

Bently Nevada 330103-04-19-05-02-CN 3300 XL 8mm Proximity Probe

The Bently Nevada 330103-04-19-05-02-CN is part of the renowned 3300 XL series, designed specifically for high-precision vibration monitoring and condition-based maintenance in industrial machinery. This 8 mm proximity probe is designed to measure the displacement of machine components with outstanding accuracy. It is widely used in critical applications that require continuous, real-time monitoring to ensure the optimal performance and longevity of machinery, such as pumps, motors, turbines, and compressors.

As a metric version, this proximity probe ensures precise measurement with a nominal gap of 8 mm, offering a combination of durability, reliability, and easy integration into existing systems. The 3300 XL series is designed to meet the rigorous needs of industrial environments, providing real-time insights into mechanical condition and enabling predictive maintenance, reducing downtime, and minimizing unplanned maintenance costs.

Product Specifications

Below are the detailed specifications for the Bently Nevada 330103-04-19-05-02-CN 3300 XL 8mm Proximity Probe:

Product Applications

The Bently Nevada 330103-04-19-05-02-CN proximity probe is ideal for a variety of industrial applications where high precision and continuous monitoring are essential:

1. Turbine Monitoring: Essential in gas and steam turbines to measure shaft displacement and identify any early signs of mechanical failure.

2. Motor and Pump Monitoring: Used to monitor the condition of motors and pumps, ensuring smooth operations and identifying issues before they become critical.

3. Compressor Vibration Monitoring: Helps in maintaining the health of compressors, ensuring operational efficiency by tracking vibration levels and displacement.

4. Rotating Equipment: The probe is designed to measure the relative displacement between rotating shafts and fixed structures, ensuring optimal alignment and reducing wear.

5. Power Generation Plants: Common in both nuclear and conventional power plants for monitoring the performance and condition of turbines, pumps, and other critical machinery.

6. Process and Chemical Industries: Helps monitor rotating machinery within refineries, chemical processing plants, and other heavy industries to ensure consistent operational performance and safety.

Product Advantages

1. High Precision: The 3300 XL proximity probe offers outstanding accuracy, providing high-resolution measurement of shaft displacement and vibration, critical for machinery condition monitoring.

2. Durability: Made from high-quality stainless steel, the probe is designed to withstand the harsh industrial environment and long-term use in demanding conditions.

3. Wide Temperature Range: With an operating temperature range of -40°C to +120°C, the probe can be used in a variety of extreme environments without compromising its performance.

4. High Sensitivity: The probe’s sensitivity allows it to detect even the smallest changes in displacement, providing early warning of potential issues.

5. Easy Integration: The 3300 XL proximity probe can be easily integrated into existing monitoring systems, offering a straightforward setup and quick deployment.

6. Shock and Vibration Resistance: The probe can endure high shock loads (up to 100 g), making it suitable for high-impact environments.

7. Minimal Maintenance: The robust construction and design of the probe ensure a long lifespan and low maintenance requirements, leading to reduced operating costs.

8. Real-Time Monitoring: Provides continuous, real-time vibration monitoring, enabling predictive maintenance and minimizing unplanned downtimes.

9. Compatibility: Compatible with various Bently Nevada systems and monitoring equipment, including the 3300 and 3500 series vibration monitoring systems.

10. Cost-Effective: The 3300 XL series offers excellent value for high-performance machinery monitoring, ensuring cost-effective maintenance strategies and reducing operational risks.

Frequently Asked Questions (FAQ)

1. What is the nominal gap for the 3300 XL proximity probe?

   • The nominal gap for this probe is 8 mm.

2. What is the total length of the Bently Nevada 330103-04-19-05-02-CN?

   • The total length of the probe is 0.5 meters.

3. What is the weight of the proximity probe?

   • The probe weighs 0.161 kg, making it lightweight and easy to handle.

4. What is the operating temperature range for this proximity probe?

   • The probe operates between -40°C and +120°C, suitable for harsh industrial environments.

5. What types of machines is this probe used to monitor?

   • This probe is commonly used to monitor turbines, motors, pumps, compressors, and other rotating equipment.

6. What is the sensitivity of the Bently Nevada 3300 XL probe?

   • The probe offers high precision and sensitivity to detect minute changes in vibration and displacement.

7. Is the Bently Nevada 3300 XL proximity probe shock-resistant?

   • Yes, the probe is resistant to shocks up to 100 g.

8. What output does the probe provide?

   • The probe typically provides an analog output, usually in the range of 4-20 mA.

9. How is the Bently Nevada 330103-04-19-05-02-CN mounted?

   • The probe can be directly mounted to the machine surface for accurate displacement measurement.

10. Can this probe be used in hazardous environments?

    • Yes, it is designed to withstand extreme temperatures and industrial environments, making it suitable for use in hazardous locations.
