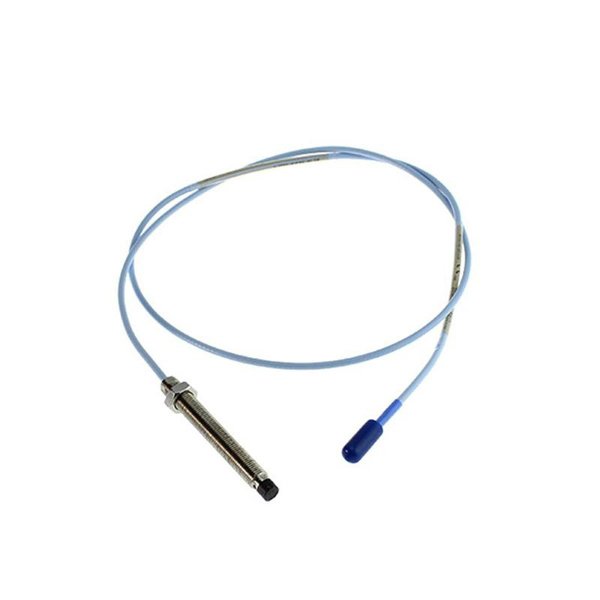

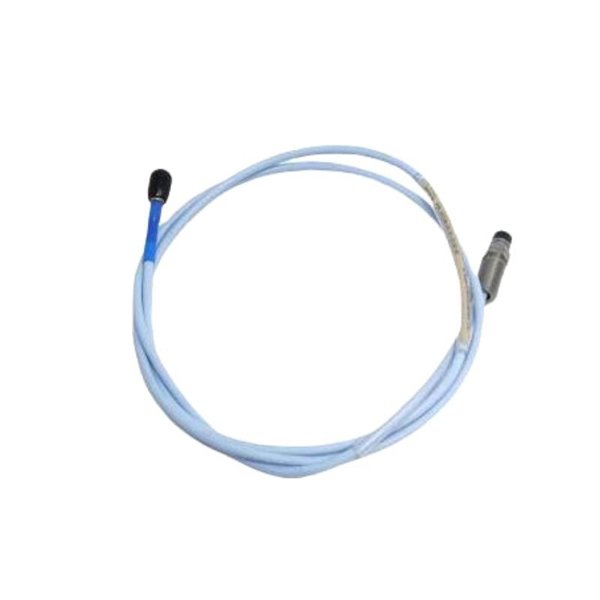

The Bently Nevada 330101-00-26-10-02-05 is a component of the trusted 3300 XL 8mm Proximity Transducer System, developed by GE’s Bently Nevada. This proximity probe is designed for highly accurate, non-contact measurements of shaft vibration and position in critical rotating machinery. Its robustness and stability make it a standard choice in industries like oil and gas, petrochemical, power generation, and heavy manufacturing.

Equipped with an 8mm probe tip, a 1 meter total length, and a coaxial connector located 10 inches from the probe end, the model 330101-00-26-10-02-05 ensures seamless integration with extension cables and Proximitor sensors. The device is built to withstand harsh environments involving high temperatures, pressure, vibration, and oil immersion, offering excellent performance across a broad spectrum of applications.

Product Specifications

Product Applications

• Steam and Gas Turbines

  Monitoring shaft radial vibration and axial thrust movement to prevent machinery failure.

• Compressors (Axial and Centrifugal)

  Ensures tight vibration control, detecting imbalance and misalignment.

• Electric Motors and Generators

  Tracks shaft condition and identifies issues like looseness or eccentricity.

• Industrial Pumps

  Provides critical early warning for cavitation, wear, and bearing issues.

• Petrochemical and Oil & Gas Plants

  Reliable in hazardous, high-temperature environments where precise monitoring is essential.

• Power Generation Facilities

  Key component of machinery protection systems for high-value rotating assets.

Product Advantages

• Exceptional Durability

  Built with stainless steel and chemical-resistant materials, suitable for harsh plant conditions.

• Precision Measurement

  High sensitivity enables early fault detection, minimizing downtime and repair costs.

• Wide Temperature and Pressure Range

  Operates reliably across extreme operational parameters, from cryogenic to high-heat conditions.

• Non-contact Technology

  Eliminates mechanical wear and reduces maintenance costs.

• Interchangeable System Components

  Allows convenient field replacement without extensive recalibration.

• Compact Form Factor

  Suitable for installation in restricted spaces on complex equipment layouts.

• Global Compliance and Certifications

  Certified to meet CE, RoHS, and potentially ATEX standards when configured properly.

• Flexible Integration

  Works seamlessly with the Bently Nevada 3300 XL system for extension cables and signal processors.

• Stable Electrical Output

  Maintains linear response over its full measurement range, critical for vibration analysis.

• Trusted OEM Quality

  Manufactured by Bently Nevada, a pioneer in condition monitoring systems for over 50 years.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 330101-00-26-10-02-05 proximity probe?

   It measures shaft vibration and position in rotating machinery without physical contact.

2. What systems is this probe compatible with?

   It’s compatible with the Bently Nevada 3300 XL system, including extension cables and Proximitor sensors.

3. What is the linear measurement range of the probe?

   The probe has a ±1 mm (2 mm total) linear range for accurate vibration monitoring.

4. Is the probe suitable for hazardous environments?

   Yes, when installed as part of an ATEX-certified system, it can operate in classified areas.

5. Can the probe handle extreme temperatures?

   Yes, it functions from -35°C to +177°C continuously.

6. What maintenance does this proximity probe require?

   Very little—due to its non-contact nature and sealed design, it typically needs no routine service.

7. How is this model different from shorter-length probes?

   This model is suited for installations requiring longer reach while maintaining system accuracy.

8. Can the probe be replaced without recalibrating the system?

   Yes, thanks to ±5% interchangeability, system accuracy is retained with matched components.

9. How is it installed on machinery?

   Threaded mounting using a 1/4-28 UNF fitting with suitable brackets or holders.

10. What type of machinery typically uses this probe?

    It is ideal for turbines, compressors, motors, generators, and large industrial pumps.
