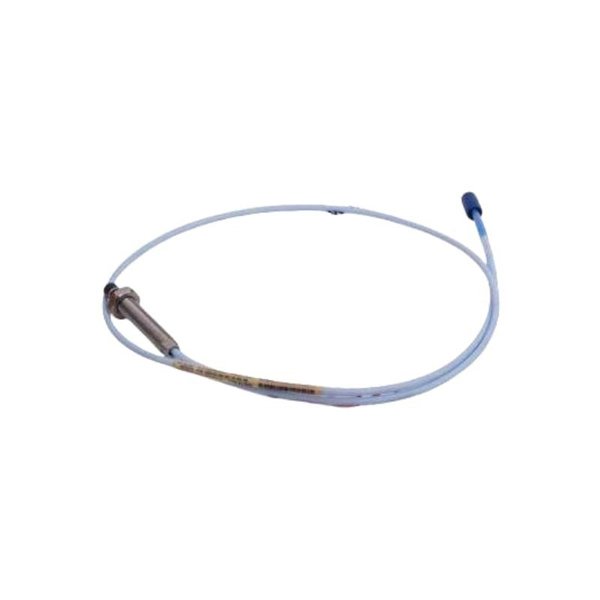

The Bently Nevada 330103-00-03-10-01-05 is a high-performance proximity probe from the renowned 3300 XL 8mm Proximity Transducer System series, designed and manufactured by Bently Nevada, a division of Baker Hughes. This system is engineered specifically for critical machinery monitoring, offering reliable, continuous, and accurate measurements of shaft position and vibration in a wide range of industrial equipment.

The 330103 probe features an 8mm tip diameter, a robust stainless steel construction, and is capable of surviving harsh industrial environments including high temperatures, vibration, and corrosive atmospheres. It is widely used in turbine machines, compressors, pumps, and gearboxes, where precise shaft displacement monitoring is required.

This model adheres to the American Petroleum Institute (API) 670 standard, making it a trusted choice in the oil and gas, power generation, and petrochemical sectors.

Technical Specifications

Product Applications

The Bently Nevada 330103-00-03-10-01-05 proximity probe is widely used in mission-critical industrial applications where real-time vibration and position monitoring are essential. Key applications include:

• Gas and Steam Turbines

• Centrifugal Compressors

• Industrial Pumps

• Gearboxes and Motors

• Hydroelectric and Wind Turbines

• Marine Propulsion Systems

Its ability to provide precise displacement measurements makes it indispensable for predictive maintenance and condition monitoring.

Product Advantages

• API 670 Compliance: Ensures compatibility with industry standards for critical machinery protection.

• Robust Construction: Stainless steel housing provides excellent durability and corrosion resistance.

• High Accuracy and Sensitivity: Delivers reliable measurements even under extreme conditions.

• Wide Operating Temperature Range: Supports deployment in both cryogenic and high-heat environments.

• Flexible Configuration: Available in multiple lengths and configurations to suit various installation scenarios.

• Low Noise Performance: Superior signal clarity for accurate monitoring and diagnostics.

• Field-Proven Reliability: Trusted across industries for long-term stability and performance.

• Complete System Integration: Seamlessly works with 3300 XL extension cables and drivers for full system integration.

FAQ

1. What is the main use of the 330103-00-03-10-01-05 proximity probe?

   It is used to measure the vibration and position of rotating machinery shafts in real-time.

2. What makes this probe compliant with API 670?

   It meets API 670 criteria for sensitivity, linearity, and environmental durability.

3. Can this probe operate in high-temperature environments?

   Yes, it can operate at temperatures up to 177°C (350°F).

4. What is the output signal type of the probe?

   It provides a voltage output that is proportional to the shaft’s position from the probe tip.

5. What is the linear range of this proximity probe?

   The linear range is typically 2 mm (80 mils).

6. Is it compatible with other Bently Nevada systems?

   Yes, it is designed to be compatible with the 3300 XL system, including drivers and extension cables.

7. How long is the probe cable?

   This model comes with a 1.0 meter cable.

8. Can the probe be used in corrosive environments?

   Yes, the stainless steel body ensures protection in corrosive and industrial environments.

9. Is field calibration necessary?

   Factory-calibrated for standard shaft materials, but field calibration may be required for different target materials.

10. What is the expected lifespan of this probe?

    With proper installation and maintenance, it can last several years in continuous operation.
