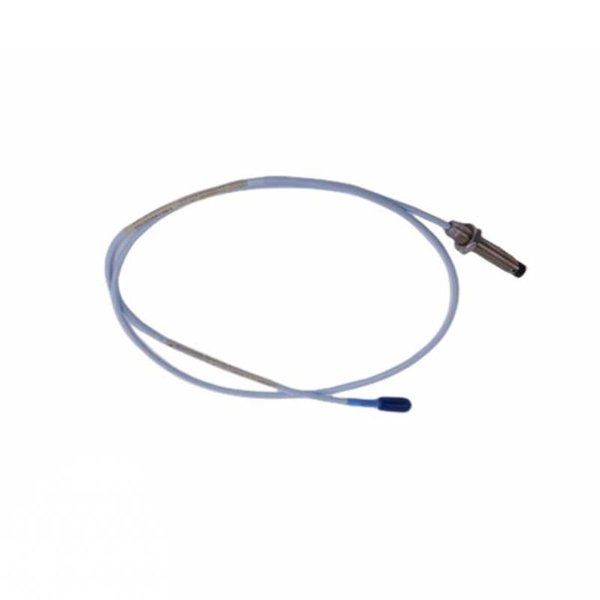

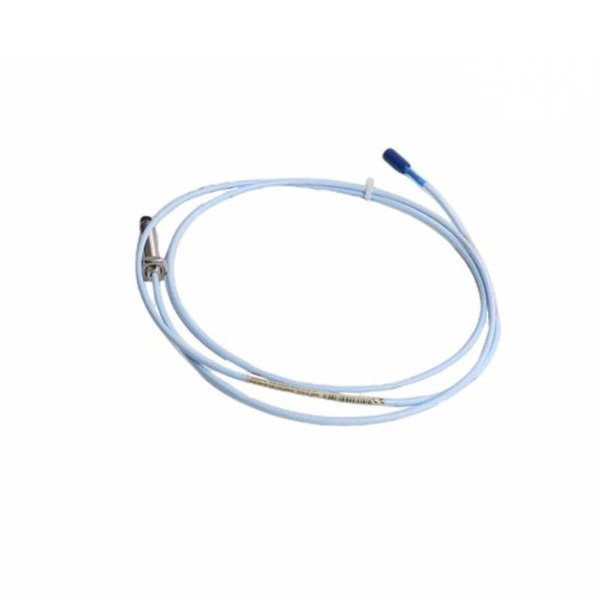

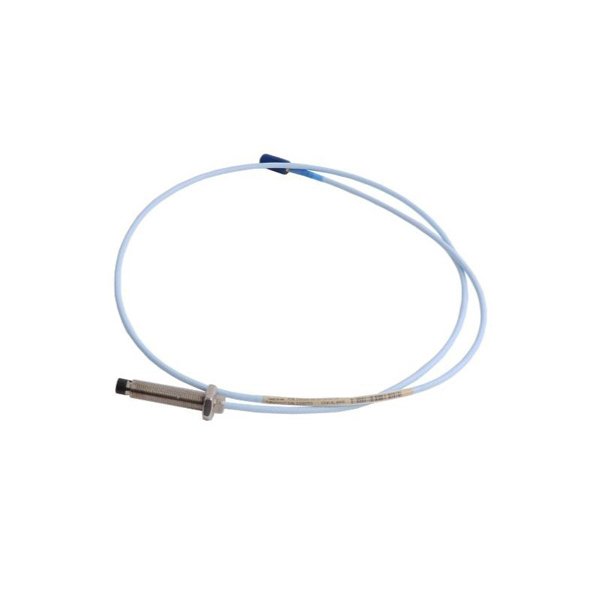

The Bently Nevada 330103-00-05-20-02-CN is a high-precision 8 mm proximity probe from the trusted 3300 XL series, engineered for non-contact measurement of shaft vibration, displacement, and position in critical rotating equipment. It is widely recognized for its stability, long-term reliability, and rugged construction in harsh industrial environments.

This specific model is configured with a 5-meter integral cable, 5/8-18 UNF mounting thread, and a 90° angled connector. The “-CN” suffix denotes a China-specific connector or certification, optimized for localized equipment and installations. Designed for use with 3300 XL extension cables and Proximitor sensors, this proximity probe ensures accurate and repeatable measurements, even in high-vibration and high-temperature conditions.

Key Features

• 8 mm probe tip ensures high-fidelity vibration and position monitoring

• 5 m integrated low-noise cable with robust shielding

• 90° booted connector for tight or angular installation environments

• 5/8-18 UNF thread for deep mounting or specialized housings

• Sealed design (IP68) prevents ingress of oil, dust, or moisture

• CN configuration supports GB-standard compatibility in China

• Resistant to shock (5000 g) and vibration (50 g)

• Works with all 3300 XL extension cables and Proximitor modules

• Ideal for high-temperature industrial applications

• Fully compliant with API 670 and CE standards

Technical Specifications

Industry Applications

This probe model is suited for critical condition monitoring in:

• Oil and Gas – Pumps, compressors, gas turbines

• Power Generation – Steam turbines, generators, auxiliary drives

• Chemical and Petrochemical – Agitators, mixers, expanders

• Metals and Mining – Gearboxes, motors, mills

• Pulp and Paper – Rollers, cutters, and fast-moving drives

• Marine Engines – Shaft monitoring in engine rooms

• Industrial HVAC – Large fans and blowers

• Water Treatment – High-capacity pump motors

• OEM Chinese Machinery – Systems requiring CN-specific probes

Product Advantages

• Region-Optimized Connector: CN version includes localized standards for seamless integration with Chinese equipment

• Right-Angle Boot: Ideal for space-constrained enclosures or side-exit cable routing

• High System Reliability: Low signal drift and long-term calibration retention

• Robust for Harsh Use: Built for corrosive and high-vibration environments

• Plug-and-Play: Compatible with legacy and modern 3300 systems

• Factory Calibrated: No need for on-site adjustments

• Mechanical Ruggedness: Stainless steel body resists wear and impact

• Repeatable Performance: Maintains linearity and sensitivity over years

• Flexible Integration: Works in vertical, horizontal, or angled installations

• Globally Certified: Adheres to major international and Chinese standards

Frequently Asked Questions (FAQ)

1. What does the “-CN” in the model number indicate?

   It refers to a connector style and certification tailored for the Chinese market or GB compliance.

2. Is the probe compatible with non-CN Bently Nevada systems?

   Yes, functionally it is fully compatible with all 3300 XL system components.

3. What is the purpose of the 90° connector?

   It allows installation in restricted spaces where straight connectors would not fit.

4. What is the minimum distance from the shaft for correct sensing?

   The recommended gap is typically 1 mm (40 mils), depending on calibration.

5. Can this be used in high-vibration environments like turbines?

   Absolutely—it withstands up to 50 g vibration and 5000 g shock.

6. Does the probe require recalibration over time?

   No, factory calibration is stable, but periodic system checks are advised.

7. What is the lifespan of the probe?

   Designed for 7–10 years of service under normal industrial conditions.

8. Is the cable shielded?

   Yes, the triaxial design provides excellent noise immunity.

9. Does the CN version support standard BNC extension cables?

   Only if matched with corresponding CN-compatible cables or adaptors.

10. How should the probe be mounted?

    Secure using the threaded body; avoid over-tightening and ensure correct axial alignment.
