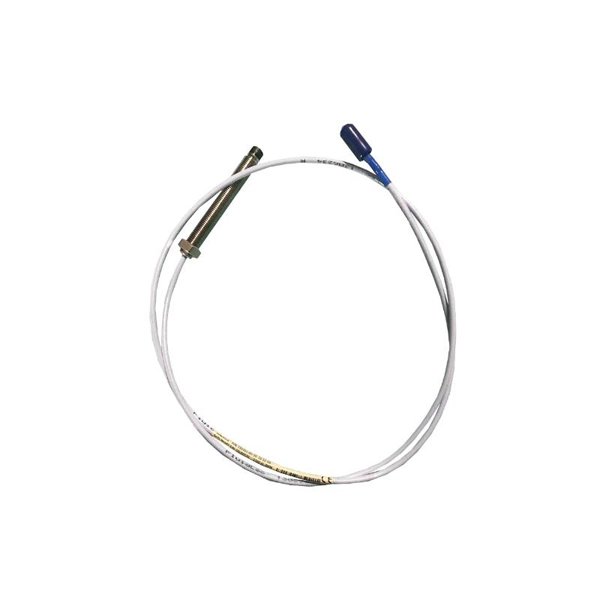

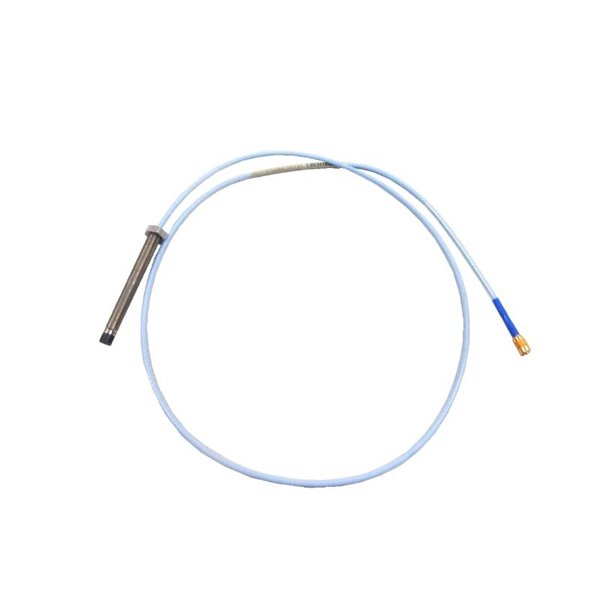

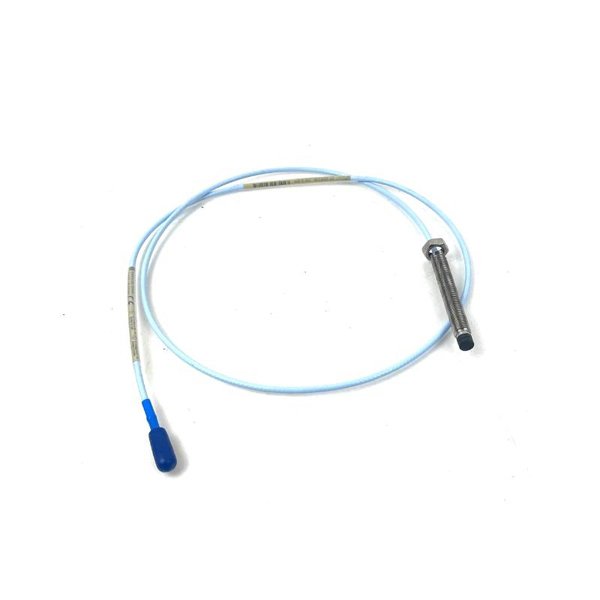

The Bently Nevada 330101-00-45-05-02-00 is a part of the 3300 XL 8mm Proximity Transducer System, a globally recognized standard for non-contact shaft vibration and position monitoring in rotating machinery. This particular model includes a 0.5 meter unarmored probe and is designed to deliver accurate, high-resolution displacement measurements using eddy current sensing technology.

Specifically engineered to operate reliably in demanding industrial environments such as turbines, compressors, motors, and pumps, this probe plays a critical role in predictive maintenance and machinery protection strategies. Combined with a matching extension cable and Proximitor® sensor, it forms a complete system with industry-proven performance.

Product Specifications

Product Applications

The Bently Nevada 330101-00-45-05-02-00 is designed for real-time condition monitoring in high-value rotating equipment. Its most common industrial applications include:

• Steam and Gas Turbines – For radial and axial shaft position monitoring to detect early-stage wear, rotor bow, or thermal growth.

• Compressors (Centrifugal & Axial) – Monitoring rotor vibration and alignment issues to prevent unplanned shutdowns.

• Industrial Motors and Generators – Ensures that shaft deflection does not cause damage to internal components.

• Large Pumps – Protects against seal failures by monitoring shaft movement.

• Gearboxes – Enables detection of gear mesh issues, misalignment, and bearing faults.

• Fans and Blowers – Tracks imbalance and vibration trends to optimize uptime and reduce maintenance costs.

Product Advantages

• Non-contact Measurement: Prevents mechanical wear, suitable for continuous long-term use.

• High Precision: Delivers accurate and linear measurements across a broad temperature range.

• Robust Construction: Stainless steel housing ensures durability in harsh and hazardous industrial environments.

• Seamless Integration: Fully compatible with 3300 XL system including extension cables and Proximitor sensors.

• ClickLoc Connector: Ensures reliable and secure connections resistant to vibration-induced loosening.

• Broad Compatibility: Optimized for use with a variety of machinery and materials (standard target: AISI 4140).

• Temperature Resilience: Operates effectively across extreme ambient and process temperatures.

• Fast Response Time: Capable of monitoring fast dynamic changes in shaft behavior.

• Low Maintenance: Designed for ease of installation, calibration, and long maintenance intervals.

• Global Standard: Accepted and trusted in industries worldwide for machine protection systems.

Frequently Asked Questions (FAQ)

1. What is the purpose of the 330101-00-45-05-02-00 probe?

   It measures the proximity (distance) between the probe tip and a conductive shaft to monitor vibration and position in rotating machinery.

2. Can this probe be used in high-temperature environments?

   Yes, it supports operation up to +177°C, making it suitable for many high-temperature industrial applications.

3. Does it require a matching proximitor and extension cable?

   Yes, this probe is part of a three-component system and must be paired with specific 3300 XL cables and Proximitor sensors.

4. Is this model suitable for forward mounting only?

   Correct, this variant uses a forward mount configuration and is threaded for installation from the machine exterior.

5. What materials can it sense?

   Standard calibration is for AISI 4140 steel, but custom calibrations are possible for other conductive targets.

6. Is the cable replaceable or field-repairable?

   No, the probe cable is fixed. If damaged, the entire probe needs replacement.

7. Can the system detect bearing failures?

   Indirectly, yes—by measuring shaft vibration, it can identify signs of bearing wear or failure.

8. What’s the minimum measurable distance?

   The linear operating range begins at 0.5 mm from the target surface.

9. Is it compatible with older Bently Nevada systems?

   It is optimized for the 3300 XL system and may not be compatible with legacy systems like the 7200 series.

10. How do I ensure proper sealing for IP65 protection?

    Use approved gaskets, sealing compounds, and proper cable glands as per Bently Nevada’s installation guidelines.
