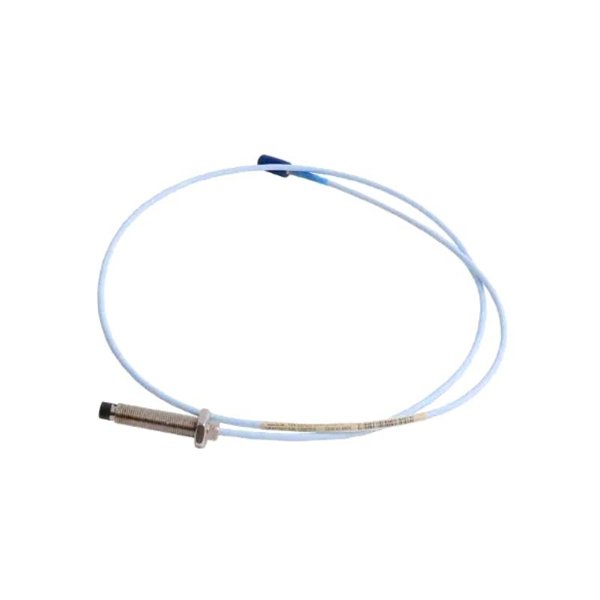

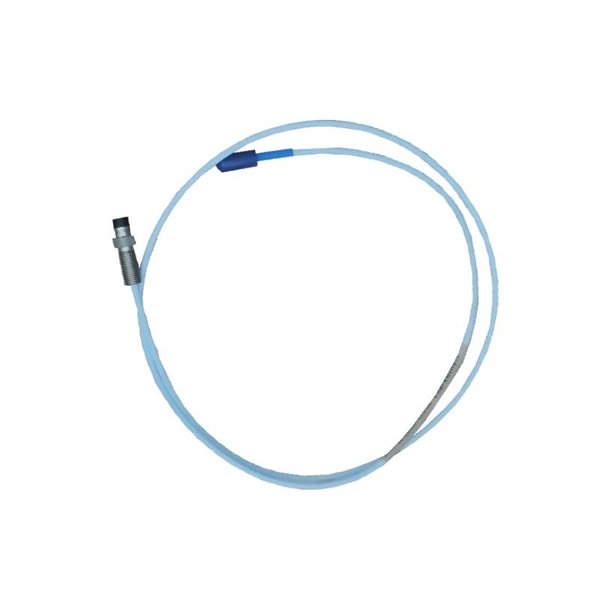

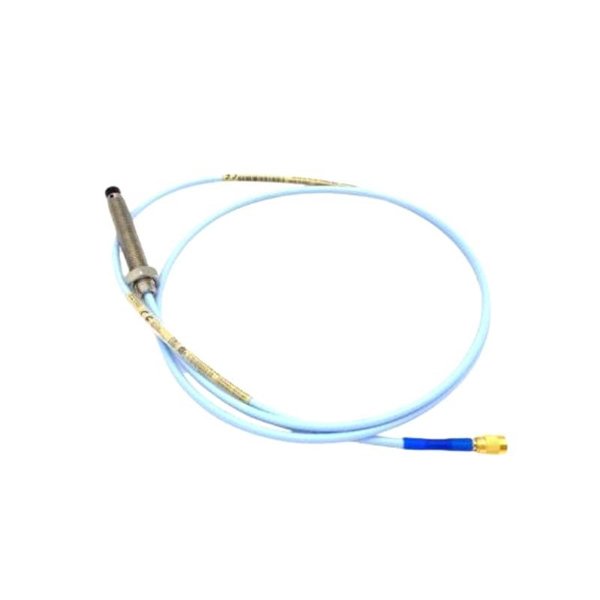

The Bently Nevada 330101-00-20-10-01-05 proximity probe is part of the trusted 3300 XL series, widely recognized for its reliable performance in industrial machinery vibration monitoring and shaft position measurement. This 8 mm probe is engineered to deliver precise and stable readings in demanding environments, supporting maintenance and protection of critical rotating equipment.

Manufactured with high-quality materials and designed according to API 670 standards, the 330101-00-20-10-01-05 model ensures long-lasting operation even in extreme temperature, pressure, and vibration conditions. Its compatibility with the Bently Nevada 3300 XL system and related accessories guarantees seamless integration into existing monitoring setups.

Product Specifications

Product Applications

The 330101-00-20-10-01-05 proximity probe is primarily used for condition monitoring and protection of rotating machinery in critical industrial sectors. Its key application areas include:

• Steam and Gas Turbines: Shaft vibration and position monitoring to prevent catastrophic failures.

• Compressors: Axial and radial position sensing in both centrifugal and axial compressors.

• Pumps: Monitoring shaft displacement to detect early signs of mechanical issues.

• Motors and Generators: Protection through vibration monitoring and shaft position feedback.

• Industrial Gearboxes: Monitoring for wear, misalignment, and shaft stability.

• Fans and Blowers: Continuous condition assessment for maintenance scheduling.

This probe is crucial for facilities such as power plants, oil and gas refineries, chemical plants, and large-scale manufacturing plants, helping to improve machinery uptime, optimize maintenance, and avoid unplanned downtime.

Product Advantages

• Robust Construction: Stainless steel body designed to withstand harsh industrial environments including corrosive atmospheres.

• Wide Operating Temperature: Performs reliably across a broad temperature range, accommodating many industrial conditions.

• API 670 Compliance: Ensures the probe meets stringent industry standards for machinery protection.

• Precision and Stability: Provides consistent, linear measurements with high accuracy to enable reliable diagnostics.

• Ease of Installation: Standardized mounting and connector options simplify integration with existing systems.

• Long Service Life: Resistant to vibration, shock, and contamination for extended operational lifespan.

• Compatibility: Seamlessly works with 3300 XL Proximitor sensors and extension cables.

• Reduced Downtime: Early fault detection capability supports predictive maintenance strategies.

Frequently Asked Questions (FAQ)

1. What does the 330101-00-20-10-01-05 probe measure?

   It measures the displacement and vibration of rotating shafts to monitor machinery health.

2. What is the sensing range of this probe?

   It has a linear sensing range of 2 mm (80 mils).

3. Can the probe withstand high temperatures?

   Yes, it operates between -51°C and +177°C (-60°F to +350°F).

4. What materials are used in the probe housing?

   The housing is made of stainless steel (AISI 303/304) for durability and corrosion resistance.

5. Is this probe compatible with Bently Nevada 3300 systems?

   Yes, it is designed for full compatibility with the 3300 XL system components.

6. How is the probe mounted?

   It uses a 3/8-24 UNF threaded mounting, or can be installed with a clamp assembly.

7. Does the probe require calibration?

   The probe is factory-calibrated and typically does not require field calibration.

8. What connector type does this probe use?

   It uses a molded miniature coaxial connector.

9. How long is the standard cable on this probe?

   It comes with a 1 meter cable.

10. Can this probe be used for thrust position monitoring?

    Yes, it is suitable for both radial and axial shaft position monitoring.
