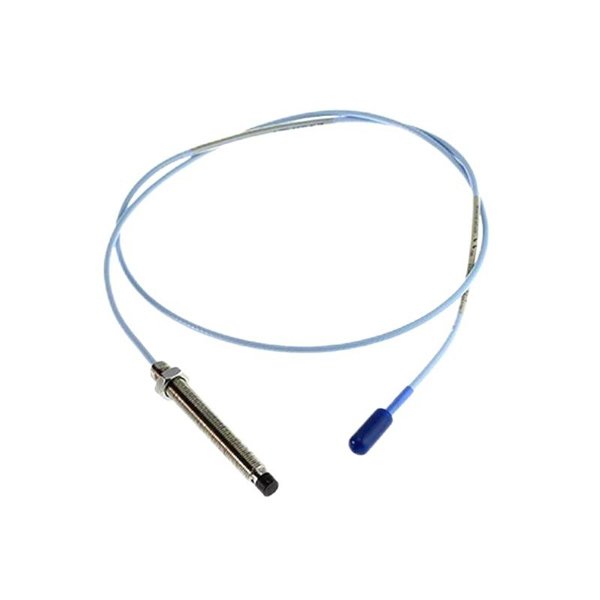

Bently Nevada 330104-10-16-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330104-10-16-10-02-00 3300 XL 8mm Proximity Probe is a highly reliable and precise sensor designed to measure shaft vibration and displacement in critical rotating machinery. As part of the well-established 3300 XL series, this proximity probe is engineered to deliver accurate, stable, and dependable monitoring performance, essential for predictive maintenance and machinery protection.

Featuring an 8mm probe tip length and rugged stainless steel construction, the sensor is capable of operating under demanding industrial conditions, including wide temperature ranges and mechanical shocks. Utilizing advanced eddy current technology, it provides continuous, real-time feedback for vibration analysis and shaft position monitoring. This probe seamlessly integrates with Bently Nevada’s 3300 XL monitoring systems, making it a trusted choice for various industrial applications.

Product Specifications

Applications

The 330104-10-16-10-02-00 proximity probe is widely used in industries requiring precise shaft vibration and position monitoring, such as:

• Power Generation: Monitoring turbines, generators, and motors to prevent mechanical failures.

• Oil and Gas: Protecting compressors, pumps, and drilling equipment by early fault detection.

• Aerospace: Monitoring engine shafts and other rotating components for safety.

• Manufacturing: Ensuring operational stability of high-speed spindles, gearboxes, and conveyors.

• Mining and Metals: Monitoring crushers, mills, and conveyors in harsh conditions.

• Chemical Processing: Protecting pumps and agitators critical to continuous processing.

Advantages

• Accurate Measurement: Eddy current sensing technology delivers precise shaft displacement and vibration data.

• Durable Design: Stainless steel housing ensures corrosion resistance and mechanical durability.

• Wide Operating Range: Functions reliably in temperatures from -40°C to 120°C.

• Compatibility: Designed for seamless integration with Bently Nevada’s 3300 XL system.

• Easy Installation: Compact form factor and standardized connectors simplify setup.

• Consistent Output: Produces stable AC voltage signals for reliable monitoring.

• Shock and Vibration Resistant: Engineered to withstand harsh mechanical environments.

• Flexible Cabling: Available with customizable cable lengths to suit various installations.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the 330104-10-16-10-02-00 probe?

   It measures shaft vibration and displacement for early detection of mechanical issues.

2. Is this probe compatible with Bently Nevada’s 3300 XL system?

   Yes, it is designed for full compatibility with the 3300 XL monitoring system.

3. What kind of signal does the probe output?

   It outputs an AC voltage signal proportional to shaft position.

4. Can the cable length be extended?

   Yes, custom cable lengths can be provided upon request.

5. What temperature range can this probe operate in?

   It operates effectively between -40°C and 120°C.

6. Does the probe need an external power source?

   No external power is required as it functions based on eddy current technology.

7. How often should the probe be inspected or calibrated?

   Annual calibration and regular inspections are recommended for best results.

8. Is the probe suitable for high-speed rotating machinery?

   Yes, it is designed for monitoring high-speed shafts.

9. What should I do if the probe cable is damaged?

   The cable should be replaced immediately to maintain measurement accuracy.

10. Can this probe detect shaft misalignment?

    Yes, by analyzing displacement and vibration patterns, it can identify misalignment.
