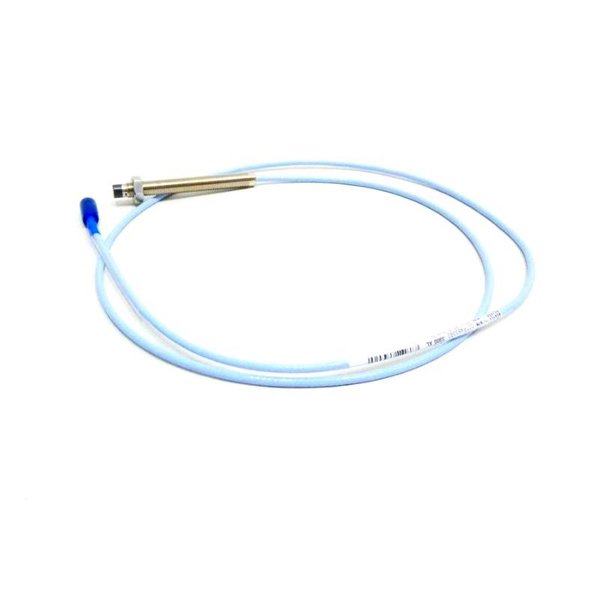

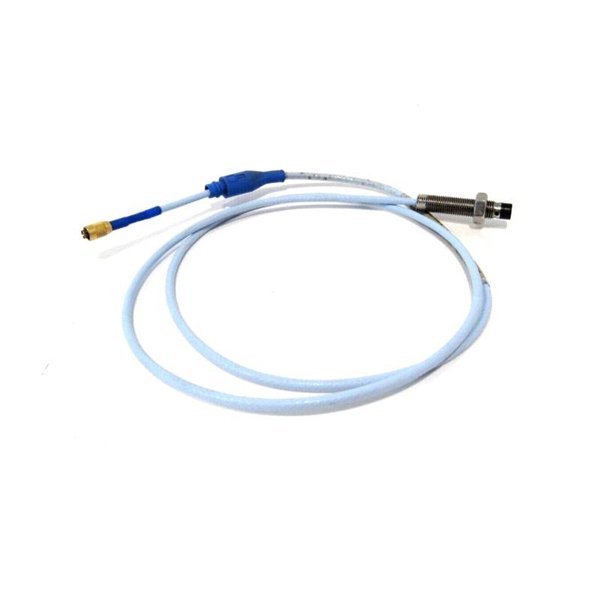

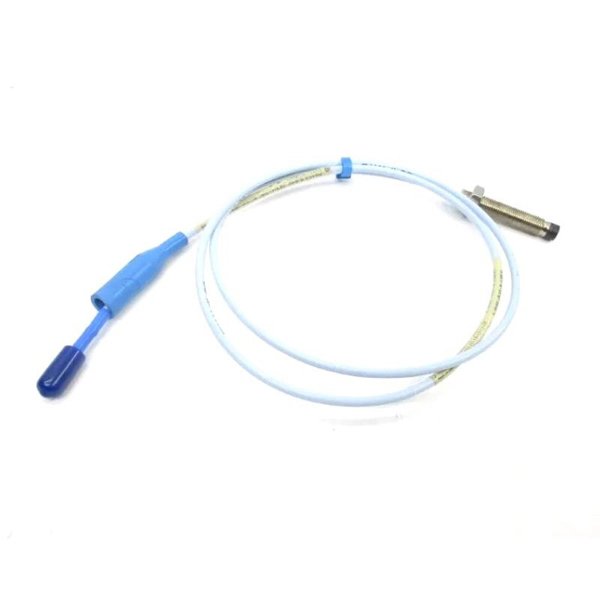

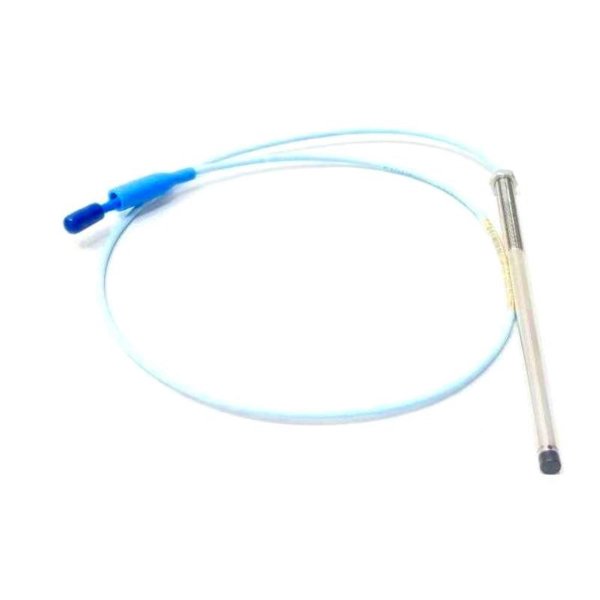

Bently Nevada 330101-30-63-15-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-30-63-15-02-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:48
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-30-63-15-02-CN is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurement on rotating machinery with fluid-film bearings. It offers robust performance compliant with API 670 standards and excellent interchangeability of components. Its rugged design ensures reliable operation in harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330101-30-63-15-02-CN |
| Probe Diameter | 8 mm |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | FEP insulated triaxial cable |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Operating Temperature | -52°C to +177°C (standard) |
| Pressure Seal | Viton O-ring |
| Linear Range | 2 mm (80 mils) |
| Output | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Recommended Gap Setting | ~1.27 mm (50 mils) |
| Minimum Shaft Diameter | 50.8 mm |
| Compliance | API 670, CE, RoHS, SIL2/SIL3, ATEX, IECEx |
Applications
-
Vibration and position monitoring on critical rotating equipment.
-
Keyphasor reference and speed measurements.
-
Overspeed protection systems.
-
Suitable for use in turbines, compressors, pumps, and motors with fluid-film bearings.
Product Advantages
-
Fully API 670 compliant for critical machinery protection.
-
Superior EMI/RFI immunity for reliable measurements in noisy environments.
-
Interchangeable components reduce inventory and maintenance effort.
-
Rugged mechanical design resists physical abuse and oil ingress.
-
Easy installation with SpringLoc connectors and ClickLoc locking mechanisms.
Frequently Asked Questions (FAQ)
Q1: What is the typical application of this probe?
A1: It is used for vibration and position monitoring on rotating machinery with fluid-film bearings.
Q2: Is the probe compliant with API 670?
A2: Yes, it meets API 670 requirements for mechanical configuration and accuracy.
Q3: What is the recommended shaft diameter for use?
A3: Minimum shaft diameter is 50.8 mm, recommended minimum is 76.2 mm for optimal performance.
Q4: Does the system support extended temperature ranges?
A4: Yes, optional ETR probes can operate up to 218°C at the tip and 260°C for cables.
Q5: Are the components interchangeable with older 3300 series?
A5: Yes, it is backward-compatible and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
Q6: How does it prevent oil leakage through the cable?
A6: FluidLoc cable option prevents oil from wicking through the cable.
Q7: What is the frequency response of this probe?
A7: The frequency response is 0 to 10 kHz.
Q8: Can it be mounted in a DIN rail configuration?
A8: Yes, the Proximitor sensor supports both DIN rail and panel mount configurations.
Q9: What is the output signal per displacement?
A9: The incremental scale factor is approximately 7.87 V/mm (200 mV/mil).
Q10: Does it require special tools for installation?
A10: No, ClickLoc connectors are finger-tight and SpringLoc terminals do not require special tools.
