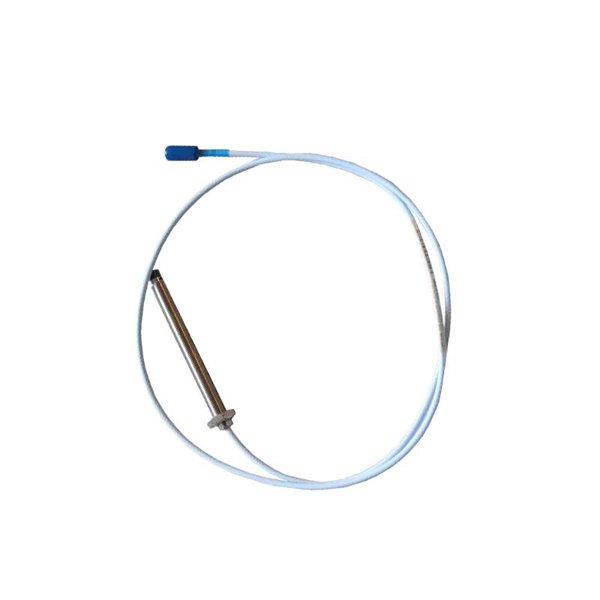

Bently Nevada 330101-00-57-10-02-05 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-00-57-10-02-05 is a precision-engineered proximity probe from the 3300 XL 8mm series, designed to deliver accurate, real-time monitoring of shaft vibration and position in critical rotating machinery. Engineered with durability, stability, and high fidelity in mind, this probe is tailored for use in hostile industrial environments where precise measurements are critical for equipment reliability and predictive maintenance.

With a 57 mm probe case length and 1 meter extension cable, this specific configuration offers versatile mounting capabilities, particularly suited for installations with moderate reach requirements and longer sensor-to-monitor distances. It is part of a complete proximity transducer system that includes the probe, extension cable, and Proximitor® sensor.

The 3300 XL series is compliant with API 670, the gold standard for machinery protection systems. This model is widely used in industries such as oil & gas, petrochemical, power generation, and marine engineering, where monitoring rotating assets is non-negotiable.

Product Specifications

Applications

The 330101-00-57-10-02-05 proximity probe is a core component in condition monitoring systems designed to ensure the integrity of rotating equipment. Typical application areas include:

• Steam and Gas Turbines

  Shaft vibration and axial thrust position monitoring for overspeed and bearing wear prevention.

• Centrifugal and Reciprocating Compressors

  Monitoring rotor dynamics and vibration amplitude to avoid internal mechanical failures.

• Electric Motors and Generators

  Providing vibration analysis and rotor alignment diagnostics for predictive maintenance.

• Pumps and Fans

  Preventing imbalance, cavitation, and mechanical looseness through dynamic measurements.

• Marine Propulsion Systems

  Ensuring shaft alignment and condition monitoring in large-scale marine engines.

This probe is often used in tandem with Bently Nevada 3300 XL Proximitor® sensors and integrated into the 3500 Series online monitoring systems.

Product Advantages

• API 670 Compliant Design

  Adheres strictly to the most demanding industry standards for machinery protection.

• High Stability Over Time

  Long-term accuracy and low drift due to precision engineering and robust materials.

• Resistant to Harsh Environments

  Fully sealed and constructed from stainless steel for use in oily, damp, or corrosive conditions.

• Secure ClickLoc™ Connector

  Prevents disconnection due to vibration or cable stress.

• Extended Cable Compatibility

  With a 1 meter extension cable, it supports installations requiring longer signal transmission.

• Reliable Temperature Performance

  Functions reliably from –35°C up to +177°C, suitable for hot zones in turbines or compressors.

• Flexible Mounting Options

  The 57 mm probe length provides versatility for mid-depth installations.

• Low Maintenance

  Factory calibrated, requiring no regular recalibration under normal operating conditions.

• Wide Industry Acceptance

  Deployed globally in power plants, refineries, offshore platforms, and naval systems.

• Excellent Frequency Response

  Enables detailed signal acquisition for both low-speed and high-speed rotating machinery.

FAQs

1. What distinguishes the 57 mm probe length from other models?

   It offers a balanced design for mid-range installations, ensuring reach without excess protrusion into machine housings.

2. Is the 1 meter extension cable part of the total system length or additional?

   It is part of the system design, giving a combined connection length when paired with the integral probe cable and Proximitor® sensor.

3. Can this model be used in offshore oil platforms?

   Yes, the sealed stainless-steel construction makes it ideal for offshore environments exposed to saltwater mist and vibration.

4. What are the risks of using non-API-compliant sensors in critical rotating machinery?

   Non-compliant sensors may produce inaccurate readings, lack reliability, or fail under extreme conditions—leading to undetected mechanical faults.

5. Does this probe support dual-channel monitoring systems?

   It is designed for single-channel proximity measurements, but can be deployed in redundant or dual-channel configurations using multiple probes.

6. What kind of extension cables are compatible with this model?

   Only Bently Nevada-certified coaxial extension cables (e.g., 330180 series) are guaranteed to maintain signal fidelity over distance.

7. Is vibration signal attenuation a concern over 10 meters?

   Not with the 3300 XL system. The probe, extension cable, and Proximitor® sensor are impedance-matched to preserve accuracy.

8. Can this probe be field-serviced or replaced without recalibrating the system?

   Yes. It’s factory-calibrated and field-replaceable. No recalibration is needed if paired with the matching extension cable and Proximitor®.

9. What is the expected operational lifespan of this model?

   Under standard conditions, these probes commonly exceed 5–7 years of continuous service without failure.

10. Can the probe be mounted in high-vibration zones near rotating couplings?

    Absolutely. The ClickLoc™ connector and robust body ensure signal reliability even in high-vibration environments.
