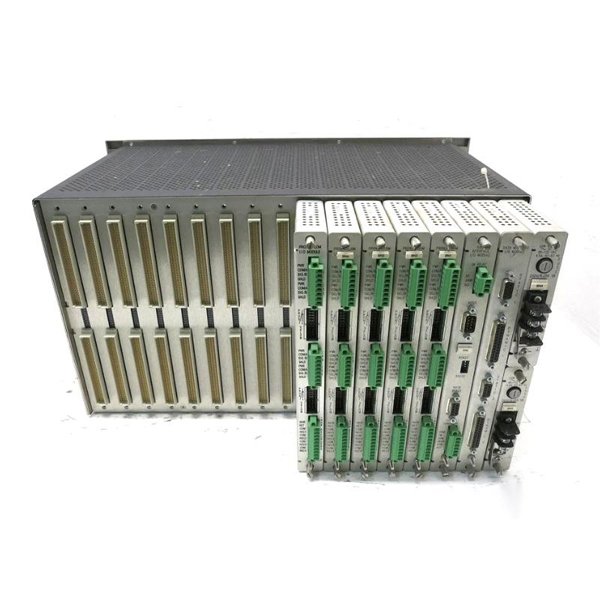

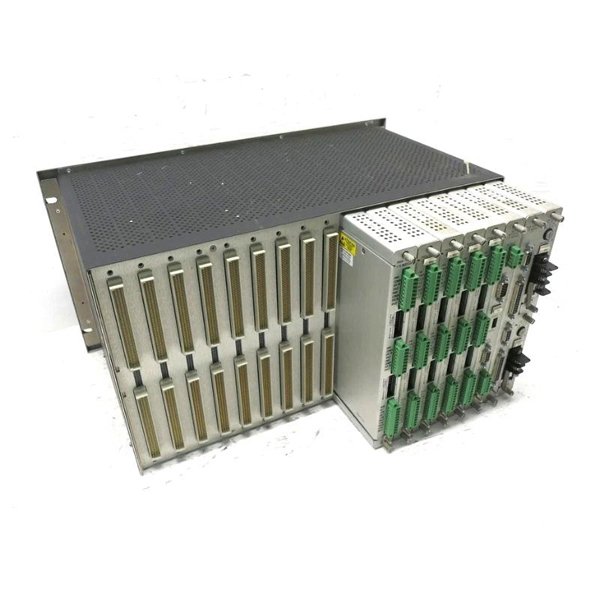

Bently Nevada 3500/05-01-03-00-00-00 3500/05 System Rack

The Bently Nevada 3500/05-01-03-00-00-00 is a durable and highly reliable 3500/05 system rack designed for housing monitoring modules within the Bently Nevada 3500 series machinery protection system. This rack is engineered to support the sophisticated vibration and machinery monitoring modules that provide critical data for protecting and diagnosing rotating equipment.

Built for industrial environments where reliability and uptime are paramount, the 3500/05 rack offers sturdy construction and modular flexibility. It serves as the physical and electrical backbone for integrating multiple monitoring modules, providing power, communication buses, and mounting infrastructure. This rack’s compatibility with the 19-inch standard and its ability to hold up to 14 modules make it a scalable and convenient solution for complex machinery monitoring setups.

Technical Specifications

Applications

The 3500/05 system rack is designed for use in critical industrial machinery protection systems where real-time vibration monitoring is essential. Typical applications include:

• Power Generation Plants – Monitoring turbines, generators, and auxiliary equipment to prevent catastrophic failures.

• Oil & Gas – Protection of compressors, pumps, and rotating machinery onshore and offshore.

• Petrochemical and Chemical Processing – Continuous machinery condition monitoring to improve plant safety and uptime.

• Pulp & Paper Mills – Monitoring rotating equipment such as refiners, fans, and motors.

• Mining and Metals – Heavy equipment monitoring for crushers, mills, and conveyors.

• Marine and Shipbuilding – Machinery protection in propulsion and auxiliary systems.

Key Advantages

• Robust and Reliable Construction: Built to withstand harsh industrial environments, ensuring long-term durability.

• Modular Design: Supports up to 14 plug-in modules, enabling flexible system expansion and configuration.

• Standardized Rack Size: Fits into standard 19-inch rack cabinets for easy installation and maintenance.

• Integrated Power and Communication Backplane: Ensures seamless communication and power distribution to all modules.

• Passive Cooling: Efficiently dissipates heat without the need for moving parts, reducing maintenance.

• Wide Operating Temperature Range: Suitable for extreme temperature conditions in industrial environments.

• Ease of Maintenance: Modules are hot-swappable, reducing system downtime during service.

• Compatibility: Works with a broad range of Bently Nevada 3500 series monitoring modules.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 3500/05 system rack?

   It houses and connects monitoring modules within the 3500 machinery protection system.

2. How many modules can the rack accommodate?

   The rack supports up to 14 modules in a standard 19-inch form factor.

3. Is this rack compatible with all 3500 series modules?

   Yes, it is designed specifically for Bently Nevada 3500 series monitoring modules.

4. What are the dimensions of the rack?

   It follows the standard 19-inch rack width with slots configured to hold 14 modules.

5. Does the rack include cooling fans?

   No, it uses passive ventilation for cooling.

6. Can modules be replaced without shutting down the entire system?

   Yes, modules are hot-swappable to minimize downtime.

7. What environmental conditions can the rack operate in?

   It supports temperatures from -40°C to +70°C and relative humidity up to 95% non-condensing.

8. How is power supplied to the modules?

   The rack features an integrated power backplane supplying power to all installed modules.

9. Is this rack suitable for marine applications?

   Yes, it meets certifications that support use in marine and industrial environments.

10. What safety certifications does the rack have?

    The rack is CE, UL, and CSA certified, ensuring compliance with industrial safety standards.
