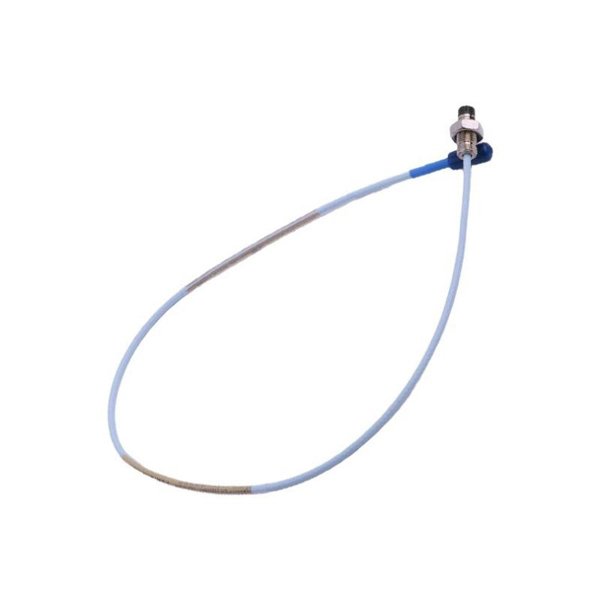

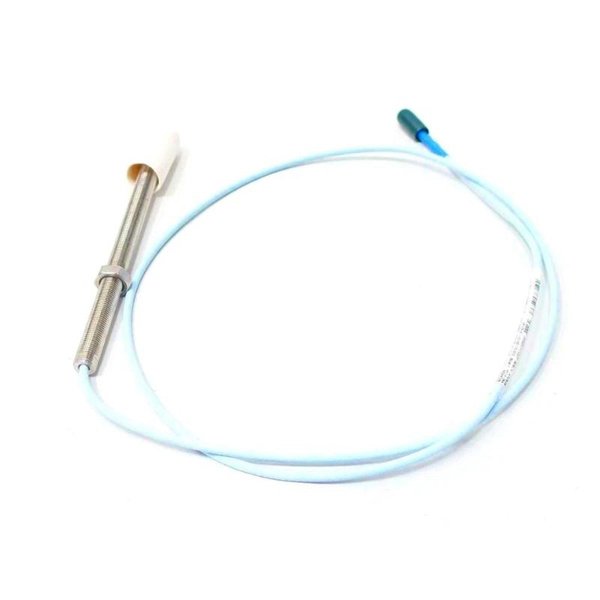

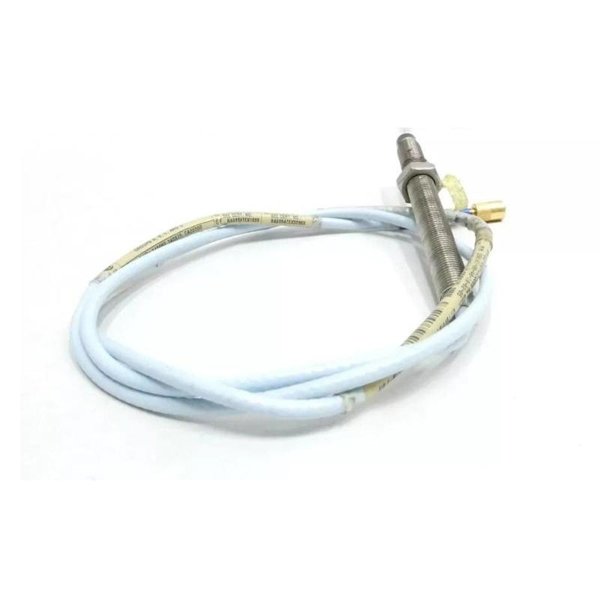

Bently Nevada 330101-00-79-10-02-05 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330101-00-79-10-02-05
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:28
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330101-00-79-10-02-05 is part of the 3300 XL 8 mm Proximity Transducer System. It delivers precise non-contact vibration and position measurements, primarily used for monitoring rotating machinery such as turbines, compressors, and pumps. This probe connects with a matching extension cable and Proximitor Sensor to form a complete system, fully compliant with API 670 standards.
Key Features
-
Compliant with API 670 standard
-
TipLoc and CableLoc patented designs for mechanical robustness
-
Gold-plated ClickLoc connectors for reliable, tool-free installation
-
Excellent RFI/EMI immunity
-
Supports static and dynamic measurements
-
FluidLoc cable option for leak prevention
-
Compatible with Bently 3300 XL and non-XL systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Part Number | 330101-00-79-10-02-05 |
| Measurement Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% |
| Operating Temperature | –52°C to +177°C (Probe), –52°C to +100°C (Sensor) |
| Output | -24 VDC system powered |
| Frequency Response | 0–10 kHz, ±3 dB |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel AISI 303/304 |
| Cable Type | FEP-insulated triaxial (standard) |
| Connector Type | Miniature coaxial ClickLoc |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
Applications
-
Vibration monitoring of fluid-film bearing machines
-
Shaft position and Keyphasor measurements
-
Rotating equipment such as turbines, compressors, motors
-
Overspeed and tachometer applications (with considerations)
-
Harsh industrial environments requiring EMI immunity
Product Advantages
-
Full System Interchangeability: No need for bench calibration
-
High Mechanical Strength: Withstands 330 N pull force
-
Environmentally Robust: FluidLoc and CableLoc options for harsh environments
-
Flexible Mounting Options: DIN rail or panel mountable
-
Extended Temperature Options: Up to 218°C probe, 260°C cable
-
Global Certifications: CSA, ATEX, IECEx, RoHS, SIL 2/3
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of this probe?
A1: It measures shaft vibration and position in rotating machinery without physical contact.
Q2: Can this model be used in hazardous areas?
A2: Yes, it holds multiple hazardous area certifications including ATEX, IECEx, and CSA.
Q3: What is the typical output signal?
A3: 200 mV/mil over the linear range with -24 VDC system power.
Q4: Is the probe compatible with older 3300 systems?
A4: Yes, it’s backward compatible with non-XL 3300 5 mm and 8 mm components.
Q5: What material is the probe tip made from?
A5: Molded PPS (Polyphenylene sulfide) for durability and performance.
Q6: What is the maximum operating temperature?
A6: Standard probe up to +177°C, extended temperature version up to +218°C.
Q7: Does this probe support Keyphasor measurements?
A7: Yes, it can be used for Keyphasor reference signals and speed detection.
Q8: Are special tools required for installation?
A8: No, the ClickLoc connectors are tool-free and designed for easy installation.
Q9: How long is the standard cable?
A9: This model has a total probe length of 1.0 meter.
Q10: What is the weight of this proximity probe?
A10: It weighs approximately 0.323 kg.
