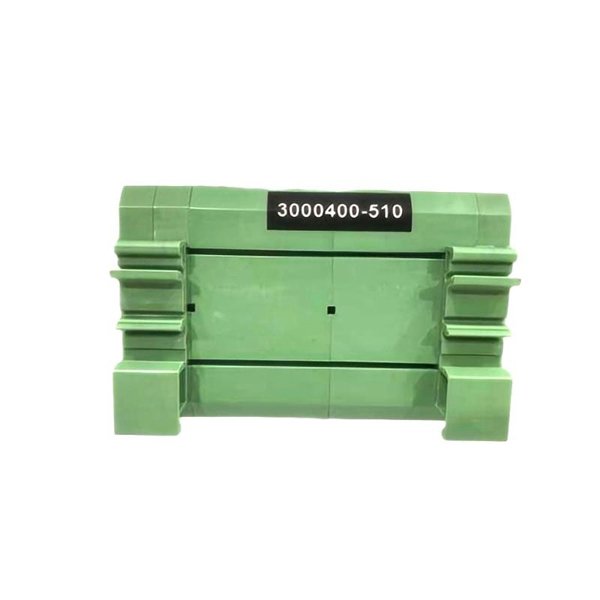

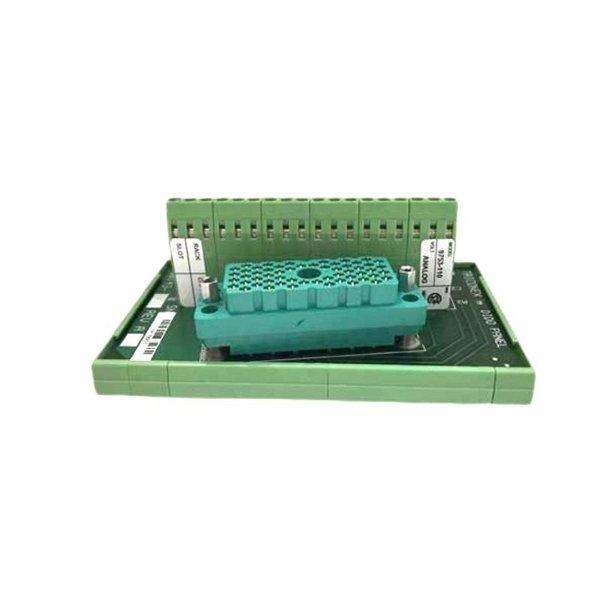

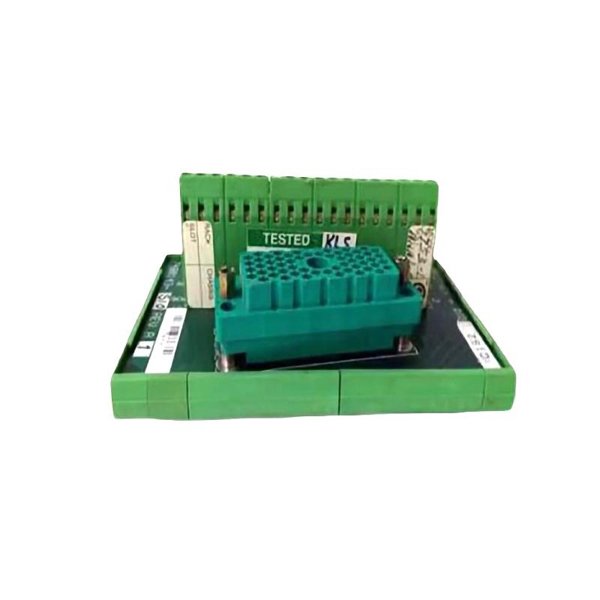

Triconex 9753-110 1057680000 Voltage Input Term Panels

The Triconex 9753-110 (1057680000) Voltage Input Terminal Panel is an integral component of Triconex’s trusted safety and critical control systems, designed to ensure reliable signal interfacing for voltage inputs within high-integrity process automation environments. This terminal panel acts as an intermediary wiring interface between field devices and the Tricon main chassis, enhancing signal conditioning and providing easy field termination.

Crafted to meet stringent safety, reliability, and environmental standards, the 9753-110 Terminal Panel is engineered with robust materials, precision design, and long-term durability in mind. It is particularly vital in systems where electrical isolation, noise reduction, and clean signal transmission are critical.

Product Specifications

Product Applications

The Triconex 9753-110 is used extensively in safety-critical and mission-critical industrial environments, including:

• Oil & Gas – Pipeline monitoring, wellhead automation, compressor control

• Chemical Processing – Reaction monitoring, pressure and flow regulation

• Power Generation – Turbine control, substation voltage monitoring

• Water Treatment – Voltage-based sensor interfaces, pump and actuator feedback

• Pharmaceutical Industry – Batch process control, cleanroom safety systems

• Nuclear Facilities – Fail-safe voltage monitoring for radiation detection and cooling systems

Product Advantages

• High Reliability: Designed with robust architecture for continuous operation in demanding environments.

• Ease of Integration: Plug-and-play design compatible with Triconex TMR systems and I/O modules.

• Superior Signal Clarity: Reduces electrical noise and offers excellent signal isolation.

• Efficient Maintenance: Clearly labeled terminals and modular design streamline diagnostics and replacement.

• Safety Compliant: Meets stringent industrial safety and electromagnetic compatibility (EMC) standards.

• Longevity: Built with high-grade materials that ensure long service life with minimal degradation.

Frequently Asked Questions (FAQ)

1. What systems is the 9753-110 compatible with?

   This terminal panel is specifically designed for Triconex TMR safety systems.

2. Can this terminal panel handle analog voltage signals?

   Yes, it supports analog voltage input signals and passes them reliably to the I/O modules.

3. What kind of installation environment is required?

   It should be installed in a dry, non-corrosive, panel-enclosed industrial environment.

4. Does it require a specific cable for connection to I/O modules?

   Yes, Triconex-specified ribbon cables or harnesses are typically used.

5. Is it hot-swappable?

   No, the system must be powered down before replacing or wiring the panel.

6. What is the typical lifecycle of this terminal panel?

   With proper installation, the panel can last more than 10 years without degradation.

7. Are spare parts available for this unit?

   Yes, authorized distributors and service partners provide original spares.

8. Is technical documentation available?

   Yes, Triconex provides manuals, datasheets, and wiring guides upon request.

9. Can the panel be customized for different channel counts?

   The standard model supports up to 32 channels, but custom versions may be available.

10. Is there electrical isolation between input channels?

    Yes, it is designed with electrical isolation to prevent cross-channel interference.
