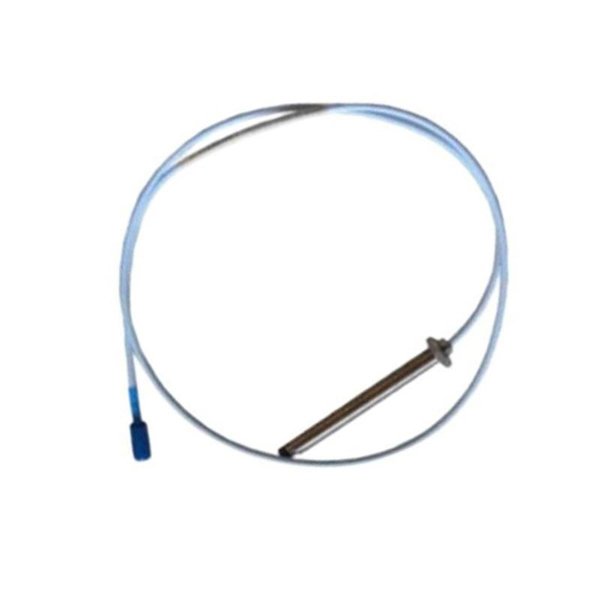

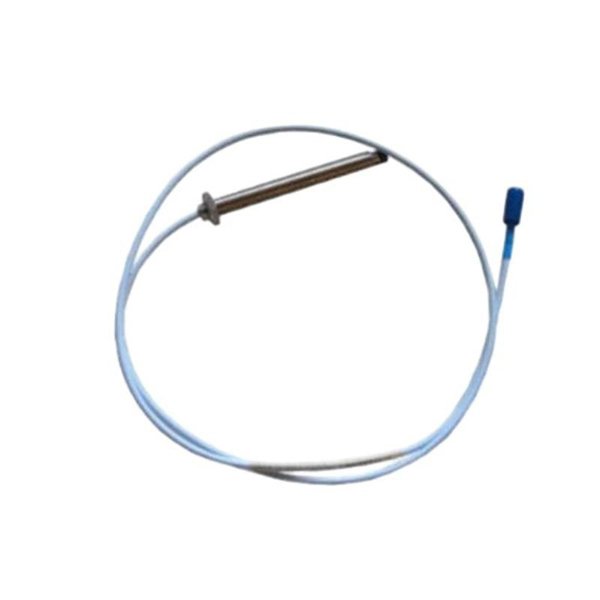

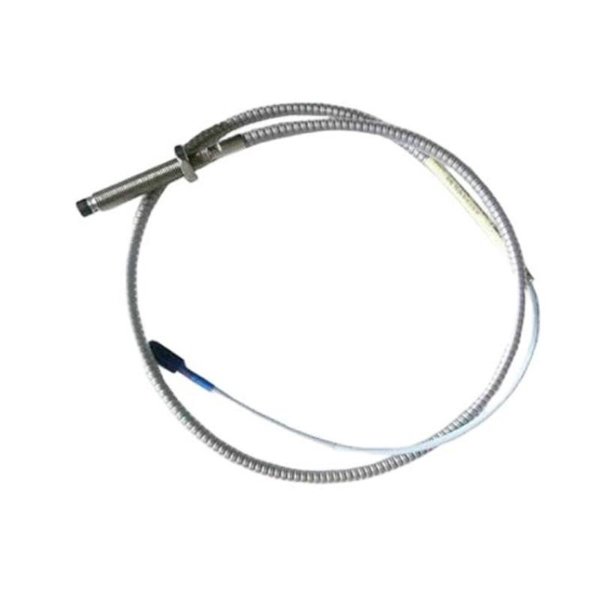

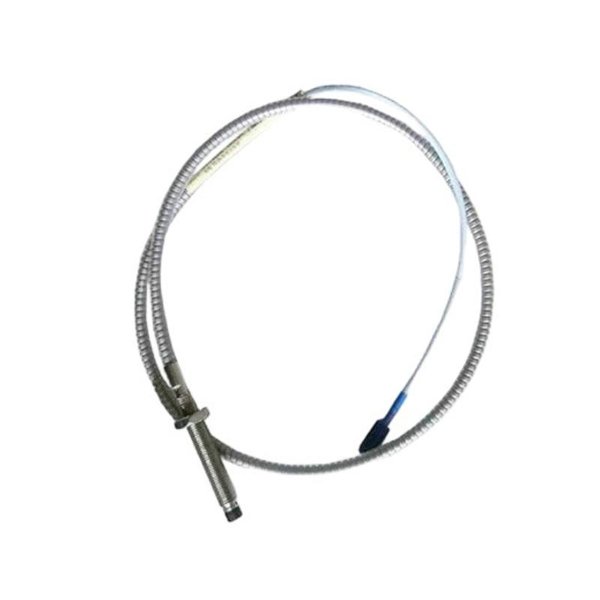

Bently Nevada 330104-00-22-10-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-22-10-01-05 proximity probe is an integral part of the trusted 3300 XL series, designed to deliver reliable, high-accuracy non-contact measurement of shaft displacement and vibration in rotating machinery. Built with robust materials and advanced eddy current sensing technology, this probe is optimized for industrial environments requiring continuous condition monitoring and protection of critical assets.

Its precision measurement capability supports predictive maintenance by detecting early signs of machine wear or failure, minimizing downtime and repair costs. The probe features a threaded mounting design and an integral coaxial cable engineered for seamless compatibility with Bently Nevada 3300 XL extension cables and Proximitor sensors.

Key Features

• Non-contact eddy current sensing for high-precision displacement measurement

• Integral coaxial cable for durable and interference-resistant signal transmission

• Threaded probe body (3/8-24 UNF) for secure installation

• Hermetically sealed probe tip designed to resist contaminants and moisture

• Wide operating temperature range to suit harsh industrial environments

• Compatible with 3300 XL Proximitor sensors and extension cables

• High shock and vibration tolerance for reliable performance

• EMI/RFI resistant for stable and accurate signal output

Technical Specifications

Industry Applications

• Power Generation: Monitoring turbines and generators to detect early mechanical issues

• Oil & Gas: Critical equipment such as compressors and pumps

• Petrochemical: Refinery rotating machinery condition monitoring

• Steel & Mining: Mills, crushers, and large motors requiring precise shaft position data

• Marine & Offshore: Machinery protection for propulsion and auxiliary systems

• Pulp & Paper: Rollers and rotary machines vibration monitoring

• Heavy Industry: Broad applications in machinery protection and condition monitoring

Product Advantages

• Precision and Reliability: Provides accurate vibration and shaft displacement measurements critical to predictive maintenance.

• Robust Construction: Hermetic sealing and rugged design ensure longevity in harsh environments.

• Standard Compatibility: Fully compatible with 3300 XL system components for ease of integration.

• Resistance to EMI and Vibration: Ensures signal integrity in electrically noisy and mechanically demanding settings.

• Minimal Maintenance: Factory calibrated with durable components requiring little upkeep.

• Compact Size: Fits into tight spaces without compromising measurement performance.

• Long-Term Stability: Designed to maintain calibration and functionality over extended periods.

• Cost-Efficient Monitoring: Helps prevent unexpected machinery failures and costly downtime.

• Wide Temperature Range: Suitable for a variety of industrial settings, including high-temperature zones.

• Proven Industry Standard: Globally trusted by industrial operators for asset protection.

Frequently Asked Questions (FAQ)

1. What does the 330104-00-22-10-01-05 probe measure?

   It measures non-contact shaft displacement and vibration via eddy current sensing.

2. Is the cable integral or detachable?

   This probe features a 2.2-meter integral coaxial cable.

3. What is the operating temperature range?

   The probe operates safely from -35°C to +177°C (-31°F to +351°F).

4. Can this probe be used with other brands?

   It is specifically designed for compatibility with Bently Nevada 3300 XL systems.

5. What mounting options are available?

   The probe mounts securely via a 3/8-24 UNF threaded body.

6. How accurate is the probe’s measurement?

   The system accuracy is ±0.07 mm within the linear range of 2 mm.

7. Is the probe suitable for hazardous environments?

   Certification depends on the entire system; the probe is rugged but check system approvals.

8. Does it require periodic recalibration?

   Typically, factory calibration suffices unless the operating environment changes significantly.

9. What materials can the probe detect?

   It is designed for conductive metal targets, typically steel.

10. What is the probe’s approximate weight?

    About 0.323 kg including the cable.
