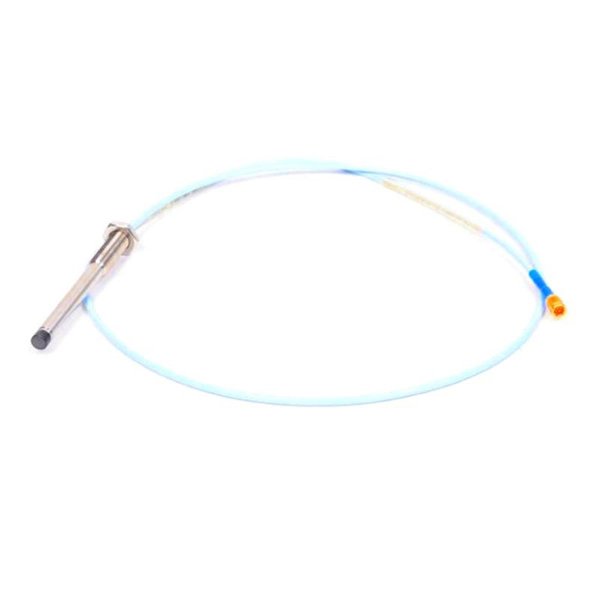

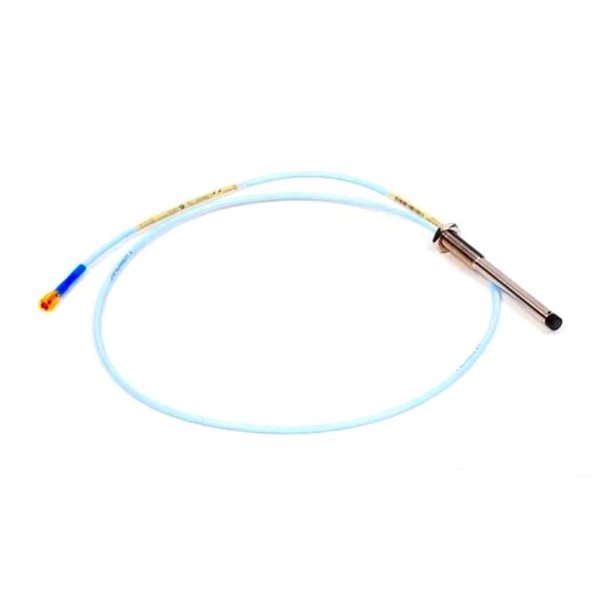

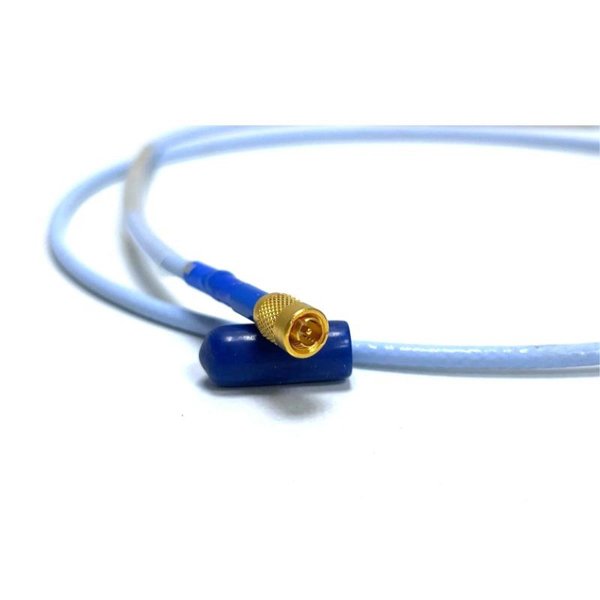

Bently Nevada 330103-00-08-10-02-CN 3300 XL 8 mm Proximity Probe
Manufacturer:Bently Nevada
Product Number:330103-00-08-10-02-CN
Product Type:3300 XL 8 mm Proximity Probe
Origin:USA
Total Length:1.0 meter
Weight:0.323 kg
Views:25
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330103-00-08-10-02-CN is a high-performance 8 mm proximity probe designed for machinery condition monitoring. It provides accurate, linear measurements of shaft vibration and position in fluid-film bearing machines. The probe outputs a voltage proportional to the distance to a conductive surface and supports both static and dynamic measurements. It is part of the 3300 XL series, ensuring full compatibility and interchangeability within the series.
Product Features and Advantages
-
Complies with API 670 standards.
-
Superior linear range and accuracy.
-
Rugged construction with enhanced environmental protection.
-
Gold-plated ClickLoc connectors for secure, tool-free connections.
-
FluidLoc and armored cable options to prevent oil leakage.
-
Backward compatible with non-XL 3300 systems.
Applications
-
Shaft vibration monitoring in turbines, compressors, pumps.
-
Radial and axial position measurements.
-
Keyphasor reference and overspeed protection systems.
-
Suitable for harsh industrial environments, including high temperature zones.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Gold-plated ClickLoc |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | 1.27 mm (50 mils) |
| Frequency Response | 0–10 kHz (+0, –3 dB) |
| Operating Temperature Range | –52°C to +177°C (probe) |
| Minimum Shaft Diameter | 50.8 mm (recommended 76.2 mm) |
| Minimum Target Size | 15.2 mm diameter flat target |
| Environmental Certifications | CE, FCC, RoHS, ATEX, IECEx, SIL 2/3 |
FAQ
Q1: What is the linear measurement range of this probe?
A1: It has a linear range of 2 mm (80 mils).
Q2: Is the probe suitable for high-temperature applications?
A2: Yes, it operates up to +177°C. For higher temperatures, ETR versions are available.
Q3: Can this probe be used for both radial and axial measurements?
A3: Yes, it supports both radial vibration and axial position monitoring.
Q4: Does it comply with industry standards?
A4: Yes, it meets API 670 requirements for mechanical configuration and performance.
Q5: Is the probe backward compatible with earlier 3300 systems?
A5: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q6: What type of connectors does it use?
A6: Gold-plated ClickLoc connectors that ensure secure, tool-free connections.
Q7: Can it operate in environments with high electromagnetic interference?
A7: Yes, the design provides excellent RFI/EMI immunity.
Q8: Is field calibration required?
A8: No, components are fully interchangeable without the need for calibration.
Q9: Does it support armored cables?
A9: Yes, versions with armored and FluidLoc cables are available for added protection.
Q10: What is the minimum shaft diameter it can measure accurately?
A10: Minimum 50.8 mm shaft diameter is recommended.
