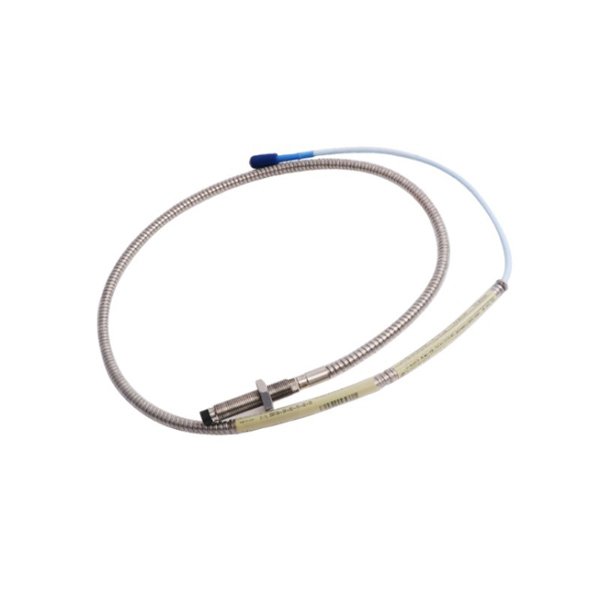

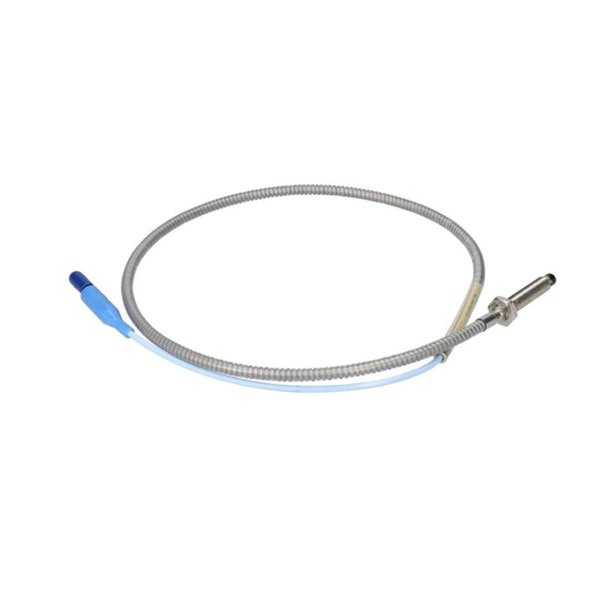

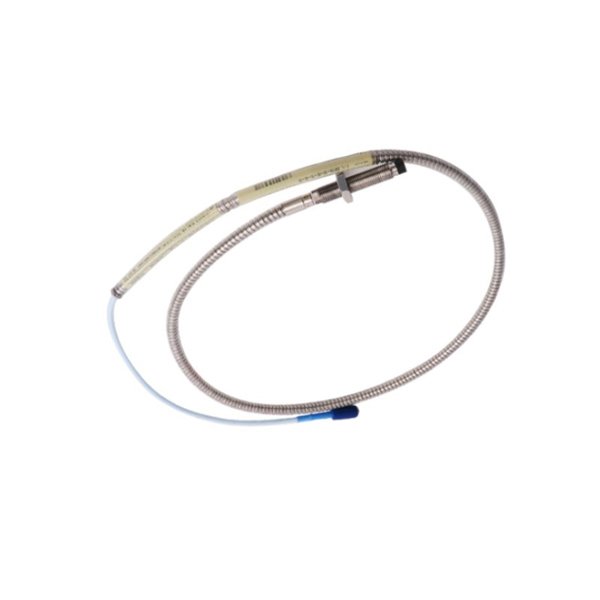

Bently Nevada 330104-00-02-10-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-02-10-02-05 proximity probe is a critical component of the 3300 XL monitoring system, providing accurate, non-contact measurements of shaft position and vibration. Engineered for use in harsh industrial environments, this 8 mm probe features a rugged stainless steel construction and a side-exit miniature coaxial connector. It is designed to detect shaft displacement with high resolution and reliability, enabling early fault detection in rotating machinery.

Ideal for applications in turbines, compressors, pumps, and other rotating equipment, the probe ensures compliance with API 670 standards, offering superior signal stability and long service life.

Key Features

• Non-contact shaft displacement measurement

• 8 mm probe tip diameter with high linearity

• Side-exit miniature coaxial connector for flexible installation

• Factory-calibrated and tested for optimum accuracy

• Durable stainless steel housing for extended operational life

• Compatible with 3300 XL extension cables and Proximitor sensors

• IP66 rated for dust and water resistance

• High immunity to electromagnetic interference (EMI)

• Operates reliably in high-temperature environments

• Meets API 670 specifications for machinery protection

Technical Specifications

Industry Applications

• Power Generation: Steam and gas turbine vibration monitoring

• Oil & Gas: Compressor and pump shaft position measurement

• Petrochemical: Monitoring of rotating equipment health

• Mining: Crushers and conveyor drive monitoring

• Manufacturing: General machinery protection and condition monitoring

• Pulp & Paper: Monitoring of motors and bearings

Product Advantages

• High precision displacement sensing ensures early fault detection

• Rugged construction extends service life in harsh environments

• Pre-calibrated for plug-and-play system integration

• Enhanced EMI resistance for stable signal output

• Flexible cable length and connector configuration for ease of installation

• Complies with API 670 for machinery protection standards

• IP66 rating guarantees resistance to dust and water ingress

• Suitable for a wide range of industrial rotating machinery

• Reduces maintenance costs by enabling predictive maintenance

• Widely supported and trusted globally by OEMs and end-users

Frequently Asked Questions (FAQ)

1. Q: What type of machines is this probe used on?

   A: It is used on turbines, compressors, pumps, and other rotating machinery requiring vibration and shaft position monitoring.

2. Q: Is the 2-foot cable length fixed?

   A: Yes, this model comes with a 2-foot cable, but longer extension cables can be added.

3. Q: Can this probe handle exposure to oil and dust?

   A: Yes, it has an IP66 rating that protects it against dust and water jets.

4. Q: Does it require field calibration?

   A: No, it is factory calibrated and ready for installation.

5. Q: What connector type does this probe have?

   A: It features a miniature coaxial connector with a side exit.

6. Q: Can it be used in high-vibration environments?

   A: Yes, it is designed for industrial vibration resistance.

7. Q: Is it compatible with Bently Nevada 3300 XL systems?

   A: Yes, it is fully compatible with the 3300 XL system components.

8. Q: What is the temperature range for operation?

   A: It operates reliably from -35°C to +177°C (-31°F to +351°F).

9. Q: Can the probe be mounted in any orientation?

   A: It is typically mounted perpendicular to the shaft surface for optimal measurements.

10. Q: What materials should the shaft be made of for accurate readings?

    A: Steel shafts made of AISI 4140 or similar materials are recommended.
