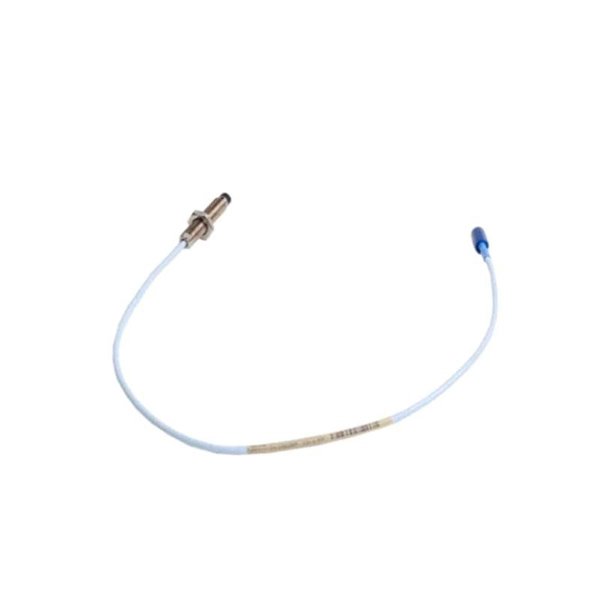

Bently Nevada 330101-00-08-20-02-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330101-00-08-20-02-05 is a high-precision proximity probe designed for non-contact measurement of shaft displacement and vibration in rotating machinery. As part of the 3300 XL series, this probe utilizes eddy current technology to provide accurate and reliable measurements, ensuring optimal performance and early detection of potential issues in critical equipment.

Product Specifications

Applications

The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used in various industrial applications, including:

• Vibration Monitoring: Detecting shaft vibration in rotating equipment such as turbines, compressors, motors, and pumps.

• Shaft Position Measurement: Monitoring axial and radial displacement of shafts to ensure proper alignment and operation.

• Overspeed/Reverse Rotation Detection: Identifying abnormal shaft speeds or reverse rotations to prevent equipment damage.

• Condition Monitoring Systems: Integrating with machinery protection systems to provide real-time data for predictive maintenance.

• Process Control Systems: Ensuring stable operation of critical machinery in industries like oil and gas, power generation, and manufacturing.

Advantages

• Non-Contact Measurement: Utilizes eddy current technology to measure displacement and vibration without physical contact, reducing wear and tear.

• High Accuracy: Offers a linear range of 0 to 2 mm with a sensitivity of 7.87 V/mm, ensuring precise measurements.

• Wide Operating Temperature Range: Operates effectively in temperatures from -35°C to +177°C, suitable for harsh industrial environments.

• Durable Construction: Made from stainless steel with a PEEK tip, providing resistance to corrosion and mechanical stress.

• Easy Integration: Compatible with Bently Nevada 3300 XL Proximitor Sensors and other monitoring systems for seamless installation.

• Environmental Protection: IP67 rating ensures protection against dust and water ingress, enhancing reliability in challenging conditions.

• Flexible Cable Options: Available with various cable lengths and connector types to meet specific installation requirements.

FAQ

1. What is the primary function of the Bently Nevada 3300 XL 8 mm Proximity Probe?

   • The probe measures the distance between its tip and a conductive surface, providing data for vibration and displacement monitoring in rotating machinery.

2. What is the linear range of this proximity probe?

   • The probe has a linear range of 0 to 2 mm (0 to 80 mils).

3. What is the sensitivity of the probe?

   • The output sensitivity is 7.87 V/mm (200 mV/mil).

4. What is the operating temperature range of the probe?

   • The probe operates within a temperature range of -35°C to +177°C (−31°F to +350°F).

5. What materials are used in the construction of the probe?

   • The probe body is made of stainless steel, and the probe tip is constructed from PEEK (Polyether Ether Ketone).

6. What is the environmental rating of the probe?

   • The probe has an IP67 rating, indicating it is dust-tight and protected against immersion in water.

7. What is the weight of the probe?

   • The probe weighs 0.646 kg.

8. What is the total length of the probe?

   • The total system length is 2.0 meters.

9. What type of connector does the probe use?

   • The probe utilizes a miniature coaxial ClickLoc connector.

10. What is the power supply requirement for the probe?

    • The probe operates on a 12 to 24 V DC power supply.
