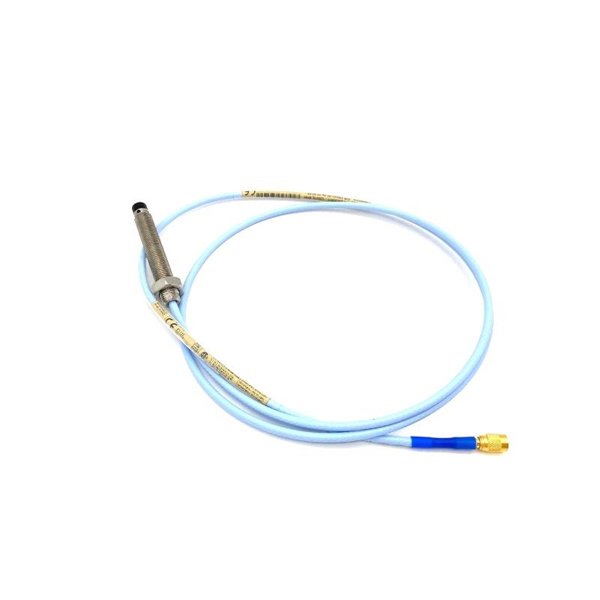

Bently Nevada 330101-00-50-10-02-00 3300 XL 8mm Proximity Probes

The Bently Nevada 330101-00-50-10-02-00 is a high-performance proximity probe designed as part of the 3300 XL 8mm Proximity Transducer System, developed by Bently Nevada, a trusted name in industrial condition monitoring and vibration detection. This probe is primarily used for non-contact displacement measurements and vibration monitoring of rotating machinery.

The 3300 XL series is renowned for its exceptional reliability in demanding industrial environments, such as power generation, petrochemical, and oil & gas sectors. This specific model—330101-00-50-10-02-00—features a 1.0 meter Total Length extension cable, and a connector protector designed for enhanced field durability and signal integrity.

Product Specifications

Product Applications

The 330101-00-50-10-02-00 proximity probe is ideally suited for the following applications:

• Shaft vibration and displacement monitoring in rotating machines

• Thrust position measurements in steam and gas turbines

• Axial position monitoring in compressors and pumps

• Condition monitoring in gearboxes and centrifugal machines

• Integration into API 670 compliant systems

• Continuous machinery protection in hazardous and high-temperature environments

These probes are frequently deployed in oil refineries, power plants, chemical facilities, and water treatment stations.

Product Advantages

• Industry-Standard Performance: Offers consistent and reliable 200 mV/mil sensitivity in line with API 670.

• High Environmental Tolerance: Functions reliably in high temperature, high vibration, and hazardous industrial environments.

• Robust Construction: Stainless steel design ensures resistance to corrosion and wear.

• Field Replaceability: The modular design allows quick replacement without recalibration.

• Superior Signal Integrity: Shielded coaxial cabling minimizes electrical noise and signal degradation.

• Compatibility: Fully compatible with legacy and new Bently Nevada monitoring systems.

• Long-Term Stability: Proven performance over extended durations with minimal drift.

FAQ

1. What is the sensing range of the 330101-00-50-10-02-00 probe?

   The typical linear sensing range is 80 mils (2 mm).

2. Can this proximity probe be used in hazardous environments?

   Yes, it is often used in hazardous areas when paired with appropriate monitoring systems.

3. Is this model compliant with API 670?

   Yes, it conforms to API 670 standards when used as part of the 3300 XL system.

4. Does this probe support extension cable connections?

   Yes, this model includes a 10 ft extension cable in its configuration.

5. What kind of connector does it use?

   A miniature coaxial connector is used for secure, high-fidelity signal transfer.

6. What is the temperature tolerance of the probe?

   Operating range is -35°C to +177°C, and storage range is -51°C to +177°C.

7. How should the probe be mounted?

   It uses a 1/4-28 UNF-2A threaded mount and requires proper alignment for accurate measurements.

8. Can this model work with non-Bently Nevada systems?

   While optimized for Bently Nevada monitors, it may be adapted to other systems with signal conditioning.

9. What materials is the probe made of?

   It is constructed using AISI 303 stainless steel for durability and corrosion resistance.

10. What maintenance is required for this probe?

    Minimal maintenance; periodic visual inspection and cleaning of the tip is recommended.
