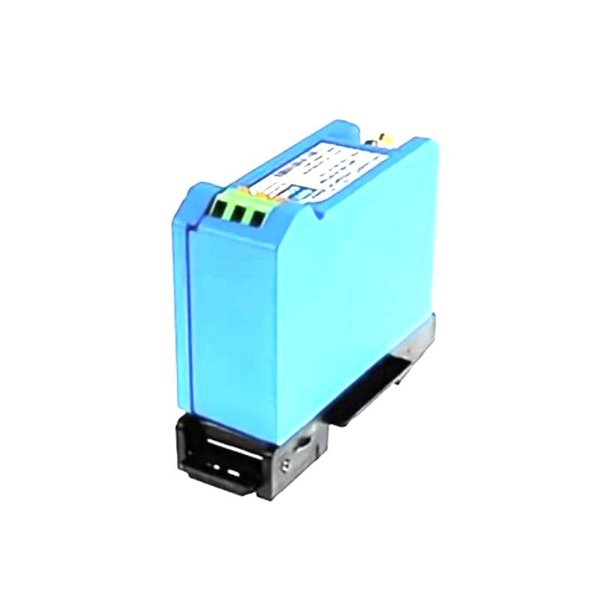

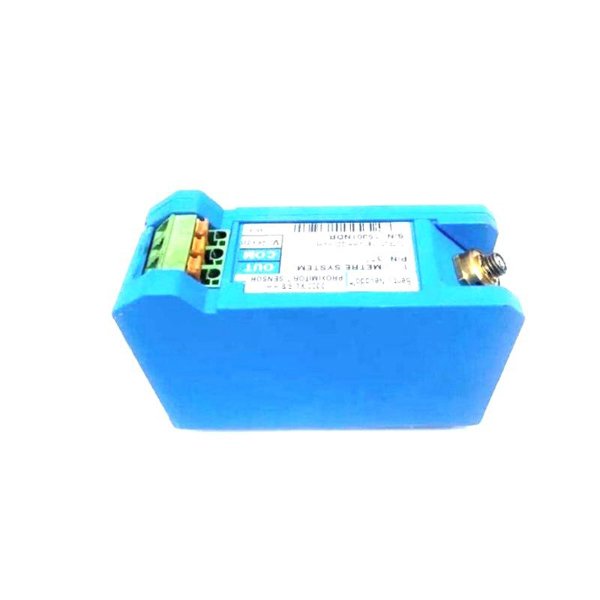

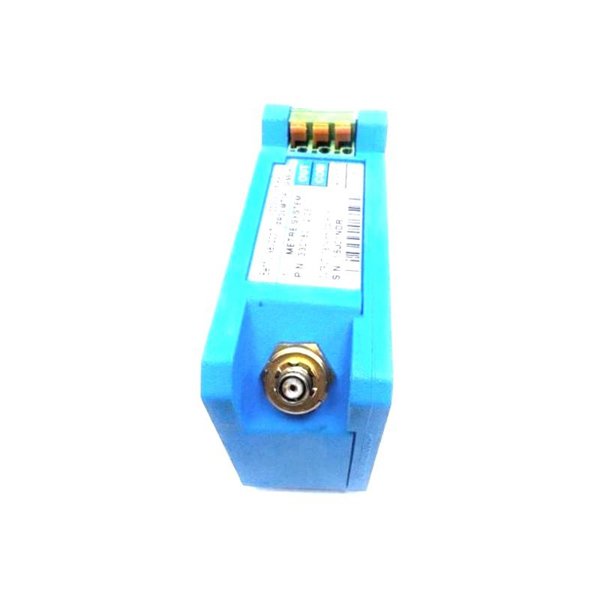

Bently Nevada 330180-X1-05 167066-01 3300 XL Proximitor Sensor
Manufacturer:Bently Nevada
Product Number:330180-X1-05 167066-01
Product Type:3300 XL Proximitor Sensor
Origin:USA
Dimensions:81.3 x 35.1 x 63.5 mm
Weight:0.246 kg
Views:118
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Bently Nevada 330180-X1-05 167066-01 3300 XL Proximitor Sensor is part of the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement of static (position) and dynamic (vibration) parameters in rotating machinery. It offers compliance with API 670 standards, ensuring high accuracy, stability, and full component interchangeability. The sensor is optimized for use in fluid-film bearing machines and is suitable for vibration, position, Keyphasor reference, and speed measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330180-X1-05 167066-01 |
| System Type | 3300 XL 8 mm Proximity Transducer System |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
| Mounting Options | DIN rail or panel mount |
| Compliance | API 670, CE Mark, RoHS |
| Hazardous Area Approvals | CSA, ATEX, IECEx |
Applications
-
Vibration monitoring for turbines, compressors, pumps, and motors
-
Shaft position and axial displacement measurement
-
Keyphasor phase reference for machinery analysis
-
Overspeed and tachometer monitoring
-
Suitable for harsh industrial and hazardous environments
Advantages
-
Full API 670 compliance for mechanical and performance standards
-
High immunity to RFI/EMI for reliable operation in demanding environments
-
SpringLoc terminal strips for quick, secure wiring without special tools
-
ClickLoc connectors for easy, secure assembly without torque tools
-
Backward compatibility with non-XL 3300 5 mm and 8 mm systems
-
Available with extended temperature range options up to 260°C for cables
FAQ
Q1: What is the primary function of the 330180-X1-05 sensor?
A1: It measures static and dynamic distances between the probe tip and target surface for vibration and position monitoring.
Q2: Is it compliant with API 670 standards?
A2: Yes, the system fully complies with API 670 mechanical and performance requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx approvals for various hazardous zones.
Q4: What type of connector does it use?
A4: It uses gold-plated ClickLoc connectors for secure and tool-free installation.
Q5: What is the recommended installation gap?
A5: The recommended gap is 1.27 mm (50 mils), corresponding to -9 Vdc output.
Q6: Does it require special wiring?
A6: Standard 3-conductor shielded triad cable is recommended, with up to 305 m distance to the monitor.
Q7: Can it operate in high-temperature environments?
A7: Yes, extended temperature versions are available, supporting up to 260°C cable temperature.
Q8: Is it backward compatible with older Bently Nevada systems?
A8: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q9: What is the linear measurement range?
A9: 2 mm (80 mils) from 0.25 mm to 2.3 mm target distance.
Q10: Can it measure both vibration and position?
A10: Yes, it can measure both static position and dynamic vibration simultaneously.
